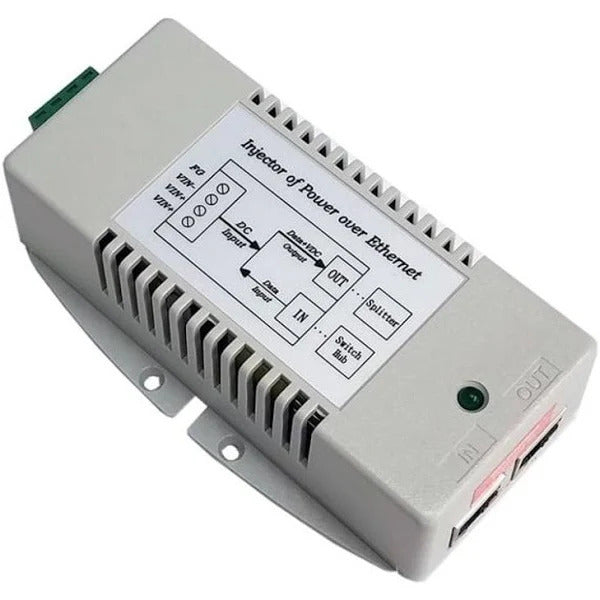

Tycon Power 10-15VDC IN, Qty 2 Ports 802.3af at 56VDC 21W OUT DC to DC Converter and Gigabit PoE inserter

Description:

The TP-DC-1248GDX2-HP is a unique high power PoE injector with Dual 802.3af at compatible outputs. This means that two devices can be powered from a single PoE injector. The data path between the devices is handled by the injector so no PoE switch is required.

This model runs on 12VDC. The total combined output is up to 42W.

They have two DC inputs for connecting 2 power sources, like a primary and backup power source. They have various protections for short circuit, overload and surges caused by ESD or lightning. The built-in surge protection protects sensitive connected devices from damage due to surges on data and PoE lines. All 8 wires are protected.

The input voltage and output voltage are isolated to avoid any grounding or negative voltage issues.

SKU: TP-DCDC-1248GDX2-HP

SPEC SHEET:a href= fthttps: tsi.tyconsystems.com doc SpecSheets TP-xx-48GDx2_Dual_Ouput_PoE_Spec_Sheet.pdf ftClick Here a

Features

Input Voltage 12VDC

Dual 802.3af at outputs

High Power Output to 42W

Surge Protected to 15kV

Dual DC Inputs for Connecting 2 Power Sources

10 100 1000 Data Compatibility, Shielded Connectors

Short Circuit, Over Current and Reverse Over Voltage Protection

Industrial Temperature Range, DIN Rail Mountable

Applications

12VDC Remote Power Systems running on batteries

Power a Camera and Wireless using a single PoE Injector

Power a Wireless AP and Backhaul using a single PoE injector

PoE Lighting Applications
