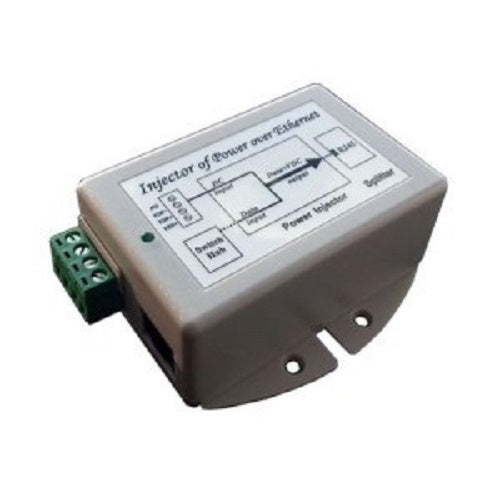

Tycon Power TP-DCDC-1248G 1Gbps 9-36VDC IN 48V OUT 24W DC to DC PoE

Description:

The TP-DCDC-1248G offered by Tycon Power is a low cost and high efficiency solution for those requiring Passive Power over Ethernet from a 12VDC or 24VDC voltage source like a battery system or vehicle. They have an integrated POE injector to apply the power and data output to the CAT5 6 Ethernet cable. The output voltage is regulated and protected.

They have two common (-) and two () for connecting 2 power sources, such as a primary with a backup power source. They have various protections for surge, short circuit and overload. The input and output are isolated. A metal enclosure model is available for industrial applications.

They accept gigabit data-in to a shielded RJ45 Jack and provide gigabit data-out and PoE power on the shielded RJ45 output jack. They work by supplying power on Ethernet pins 4,5(V) and 7,8(V-). They have various protections for surge, short circuit and overload. The other models have power outputs up to 24W.

SKU:TP-DCDC-1248G

SPEC SHEET:a href= fthttps: tsi.tyconsystems.com doc SpecSheets TP-DCDC_Gigabit_POE_Inserter-Converter_Spec_Sheet.pdf ftClick Here a

USER GUIDE:a href= fthttps: tsi.tyconsystems.com doc UserManuals POE_User-Guide.pdf ftClick Here a

DIMENSIONAL DRAWING:a href= fthttps: tsi.tyconsystems.com doc DimDrawings TP-DCDCpct20(MIT-69).pdf ftClick Here a

Features

Input Voltage 12VDC or 24VDC (Range 9-36VDC)

Passive PoE Output, 48VDC

Dual Inputs for Connecting 2 Power Sources

Integrated 10 100 1000MB PoE Inserter

High Power up to 24W

Low Self Consumption Power

Short Circuit, Over Current and Reverse Over Voltage Protect

High Temperature Operation

Compact Size “ Maximize Available Space

I.T.E. Power Supply, UL Listed

Applications

12V 24V Battery Systems, Vehicle Applications

Wireless Access Points and Client Devices

IP Phone and Security Camera Systems
