Tycon Power 9-36VDC Input, 24V Passive PoE Output, 20W

Description:

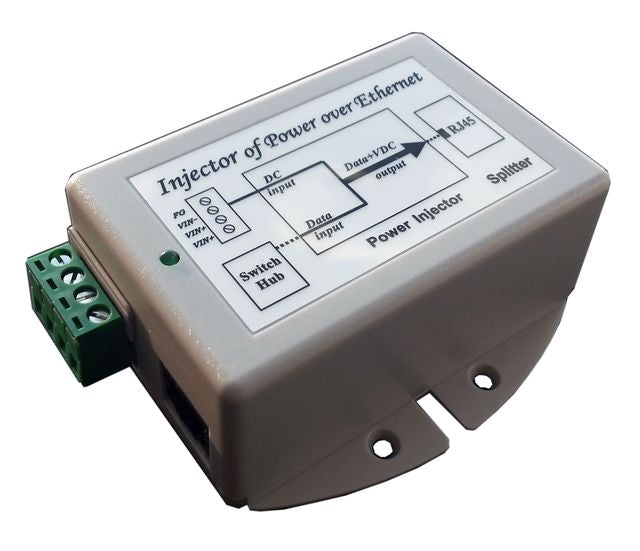

The TP-DCDC-1224 offered by Tycon Power is a low cost and high reliability solution for those requiring 24VDC Power over Ethernet voltage from a 12 or 24V battery system. They have an integrated POE injector to apply the 24VDC to the CAT5 6 Ethernet cable. The output is regulated 24VDC from an input voltage between 9VDC and 36VDC. They have one common (-) and two () inputs for connecting 2 power sources, such as a primary with a backup power source. A metal enclosure model is available for industrial applications.

They accept data-in to a shielded RJ45 Jack and provide data-out and POE power on the shielded RJ45 output jack. They work by supplying power on the unused Ethernet pins 4,5(V) and 7,8(V-). An IEEE 802.3af compliant model is available for those applications requiring 802.3af handshake. They have various protections for surge, short circuit and overload. The units have power output up to 24W. The DCDC converters are DIN rail mountable using DIN Rail adaptors pn: DIN-ClipKit-UNI

SKU: TP-DCDC-1224

Data Sheet: a href= fthttps: tsi.tyconsystems.com doc SpecSheets TP-DCDC_POE_Inserter-Converter_Spec_Sheet.pdf ftClick Here a

User Guidet: a href= fthttps: tsi.tyconsystems.com doc UserManuals POE_User-Guide.pdf ftClick Here a

Dimensional Drawingt: a href= fthttps: tsi.tyconsystems.com doc DimDrawings TP-DCDCpct20(MIT-69).pdf ftClick Here a

Features

Input Voltage 9-36VDC Output 24VDC Passive

Dual Inputs for connecting 2 power sources

Integrated 10 100MB POE Inserter

High Power up to 19W

Short Circuit, Over Current and Reverse Over Voltage Protection

High Temperature Operation

Compact size “ Maximize Available Space

I.T.E. Power Supply, UL Listed

Applications

12V 24V Battery Systems

Wireless Access Points and Client Devices

IP Phone and Security Camera Systems
