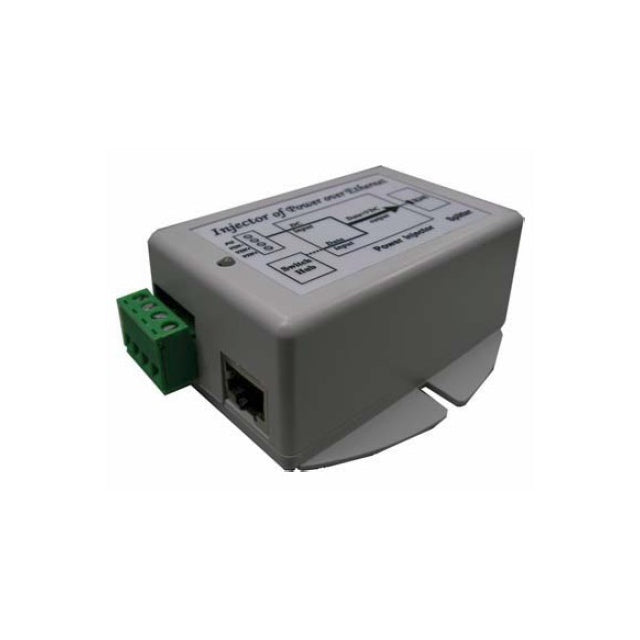

Tycon Power TP-DCDC-1224G 24V Passive POE Output Gigabit Injector

Description:

The TP-DCDC-1224G is a low cost and high efficiency solution for those requiring Passive Power over Ethernet from a 12VDC voltage source like a battery system or vehicle. They have an integrated POE injector to apply the power and data output to the CAT5 6 Ethernet cable. The output voltage is regulated and protected.

They have a common (-) and two () for connecting 2 power sources, such as a primary with a backup power source. A metal enclosure model is available for industrial applications.

They accept gigabit data-in to a shielded RJ45 Jack and provide gigabit data-out and PoE power on the shielded RJ45 output jack. It works by supplying power on Ethernet pins 4,5(V) and 7,8(V-). This converter has various protections for surge, short circuit and overload. Other models have power outputs up to 24W.

SKU:TP-DCDC-1224G

SPEC SHEET: a href= fthttps: tsi.tyconsystems.com doc SpecSheets TP-DCDC_Gigabit_POE_Inserter-Converter_Spec_Sheet.pdf ftClick Here a

USER GUIDE: a href= fthttps: tsi.tyconsystems.com doc UserManuals POE_User-Guide.pdf ftClick Here a

DIMENSIONAL DRAWING: a href= fthttps: tsi.tyconsystems.com doc DimDrawings TP-DCDCpct20(MIT-69).pdf ftClick Here a

Features:

Input Voltage 9-36VDC Output 24VDC (Passive)

Integrated Gigabit PoE Inserter

High Power 24W

Short Circuit, Over Current and Over Voltage Protection

High Temperature Operation

Removable Wire Terminal Input for up to 12AWG wires

I.T.E. Power Supply, UL Listed

Dimensions:

85 x 76 x 36mm (3.4 x 3 x 1.4in)

Weight: 134g (4.7oz)
