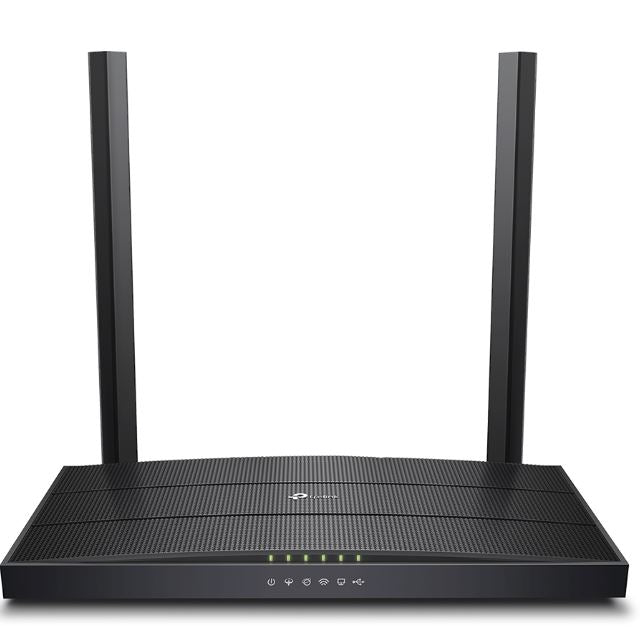

AC1200 Wireless MU-MIMO VDSL ADSL Modem Router

Speedy WiFi “ Experience superb wireless connections with 867 Mbps (5 GHz) 300 Mbps (2.4 GHz) dual band WiFi

Superior Range “ Two fixed omnidirectional antennas with Beamforming technology provide stable wireless connections and optimal coverage

Versatile Connectivity “ Fully compatible with VDSL2 ADSL2 ADSL2 ADSL standards, as well as fiber, cable, and 3G 4G internet services

Whole-Home Coverage with OneMeshTM “ Works alongside TP-Link OneMeshTM products to create a flexible Mesh network

MU-MIMO Technology “ Simultaneously transfers data to multiple devices, reducing wait times

Full Gigabit Ports “ Take full advantage of broadband speeds up to 1 Gbps

Tether App“ TP-Link Tether provides the easiest way to access and manage your router on your iOS and Android devices

HARDWARE FEATURES

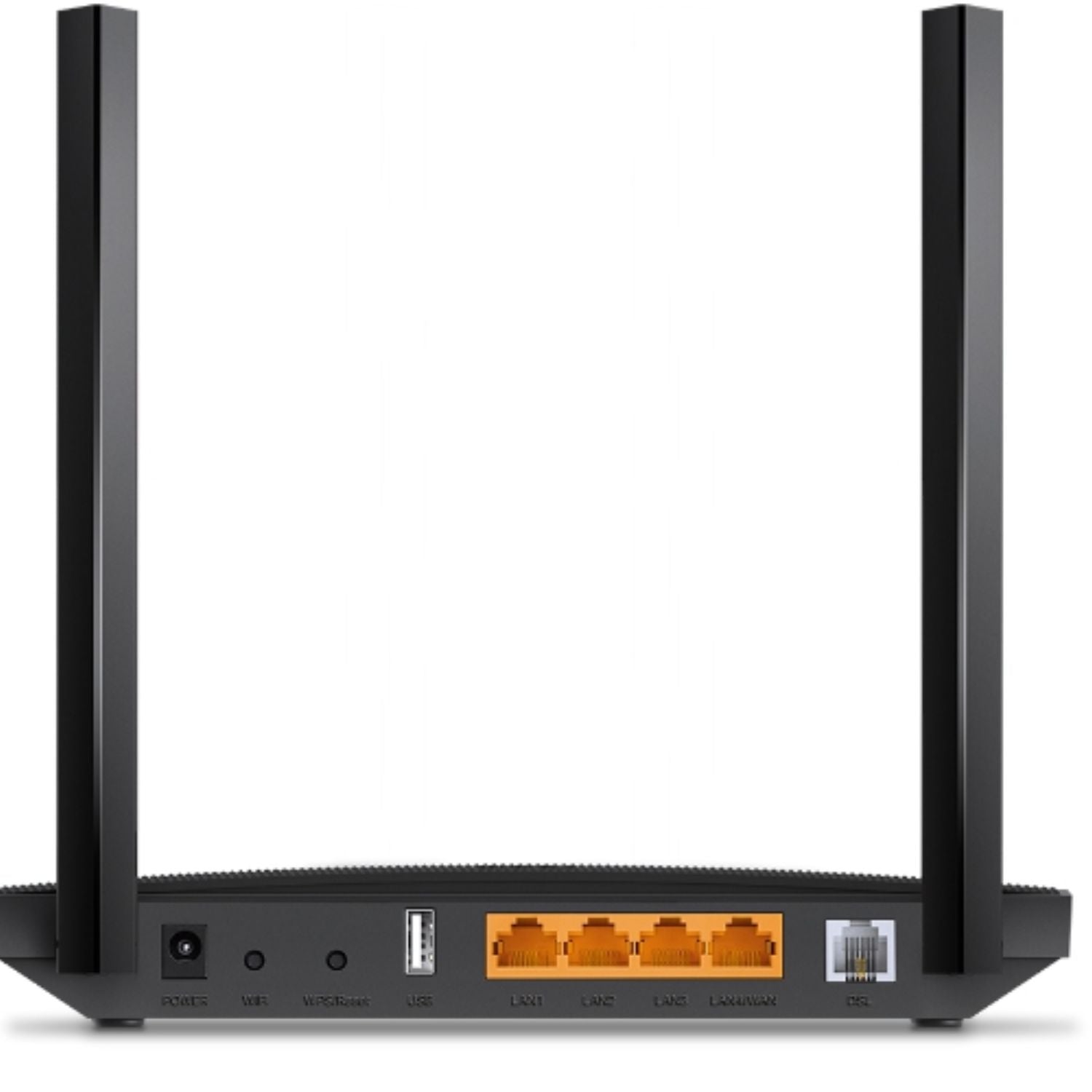

Interface 3— 10 100 1000Mbps RJ45 LAN Ports,

1— 10 100 1000Mbps RJ45 WAN LAN Port,

1— RJ11 Port,

1— USB 2.0 Port

Button WPS Button, Wi-Fi On Off Button, Reset Button

External Power Supply 12V 1A

IEEE Standards IEEE 802.3, IEEE 802.3u, 802.3ab

VDSL2 Standards ITU G.993.2, Up to 17a profile (POTS)

ITU-T G.993.5 (G.vector)

ITU-T G.998.4 (G.INP)

ADSL Standards Full-rate ANSI T1.413 Issue 2,

ITU-T G.992.1(G.DMT),

ITU-T G.992.2(G.Lite),

ITU-T G.994.1 (G.hs),

ADSL2 Standards ITU-T G.992.3 (G.DMT.bis)

ADSL2 Standards ITU-T G.992.5

Dimensions ( W x D x H ) 8.5 — 4.9 — 1.2 in (215.6 — 124.6 — 31.6 mm)

Antenna Type 2— fixed Omini-Directional antennas

WIRELESS FEATURES

Wireless Standards IEEE 802.11ac n a 5GHz, IEEE 802.11b g n 2.4GHz

Frequency 2.4 GHz and 5 GHz

Signal Rate 867Mbps at 5 GHz, 300Mbps at 2.4 GHz

Wireless Functions Enable Disable Wireless Radio, WMM, Wireless Statistics

Wireless Security 64 128-bit WEP, WPA WPA2, WPA-PSK WPA2-PSK encryptions

Transmission Power 20dBm (2.4 GHz), 23dBm (5 GHz)

Wireless Schedule Support 2.4 GHz and 5 GHz Wireless Schedule

SOFTWARE FEATURES

Security NAT Firewall, S
