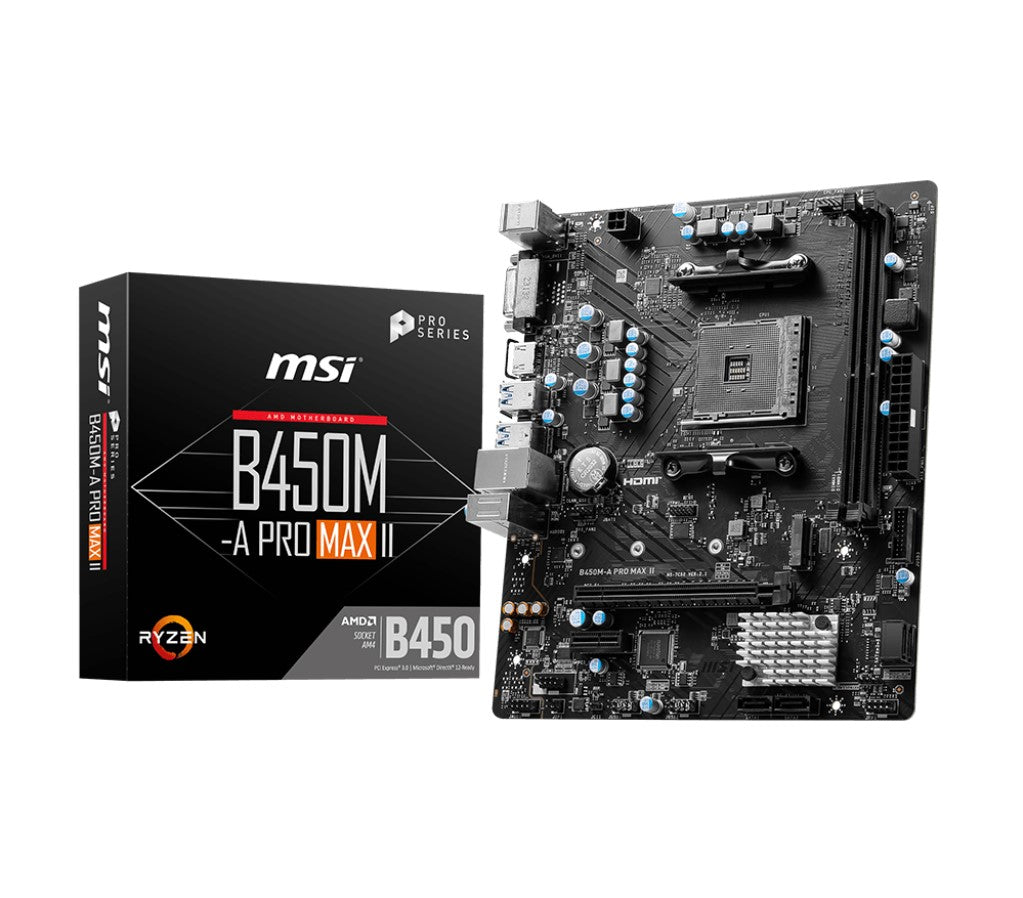

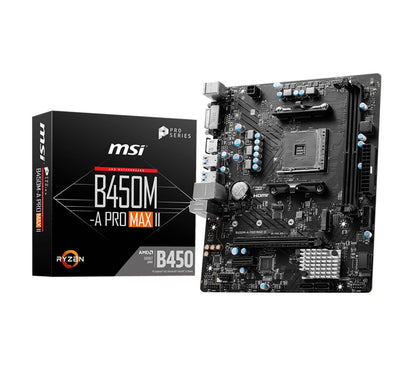

MSI B450M-A PRO MAX II AMD M-ATX Motherboard - AM4 Ryzen, 2xDDR4-64GBCapacity,1xPCIe x16slot, 4xSATA 6Gb, 6xUSB3.0, 6xUSB2.0, DVI-D HDMI, 2.5G LAN

MSI AMD B450M-A PRO MAX AM4 motherboard inspired from architectural design, with Core Boost, DDR4 Boost, Turbo M.2, USB 3.2 Gen1

Supports AMD Ryzen„ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series, 2000 G-Series and 1000 Series desktop processors and Athlon„ with Radeon„ Vega Graphics desktop processors

Supports DDR4 Memory, up to 4133 (OC) MHz

Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs.

Audio Boost: Reward your ears with studio grade sound quality.

2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection

X-Boost: Software that auto-detects and allows you to boost the performance of any storage or USB device.

Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.

SPECIFICATIONS

Model Name B450M-A PRO MAX II

CPU Support

Supports AMD Ryzen„ 5000 Series, 5000 G-Series, 4000 GSeries, 3000 Series, 3000 G-Series, 2000 Series, 2000 GSeries and 1000 Series desktop processors and Athlon„ with Radeon„ Vega Graphics desktop processors

CPU Socket

Socket AM4

Chipset

AMD B450 Chipset

Expansion Slots

1x PCIe 3.0 x16 slot

1x PCIe 2.0 x1 slot

Display Interface

Support 4K 60Hz as specified in HDMI„ 2.0b, DVI-D

- Requires Processor Graphics

Memory Support

2 DIMMs,

Dual Channel DDR4-4133MHz(OC)

Storage

1x M.2 Gen3 x4 32Gbps slot

4x SATA 6Gbps ports

USB ports

6x USB 3.2 Gen 1 5Gbps (6 Type-A)

6x USB 2.0

LAN

Realtek 8125BG 2.5G LAN

Audio

8-Channel (7.1) HD Audio with Audio Boost
