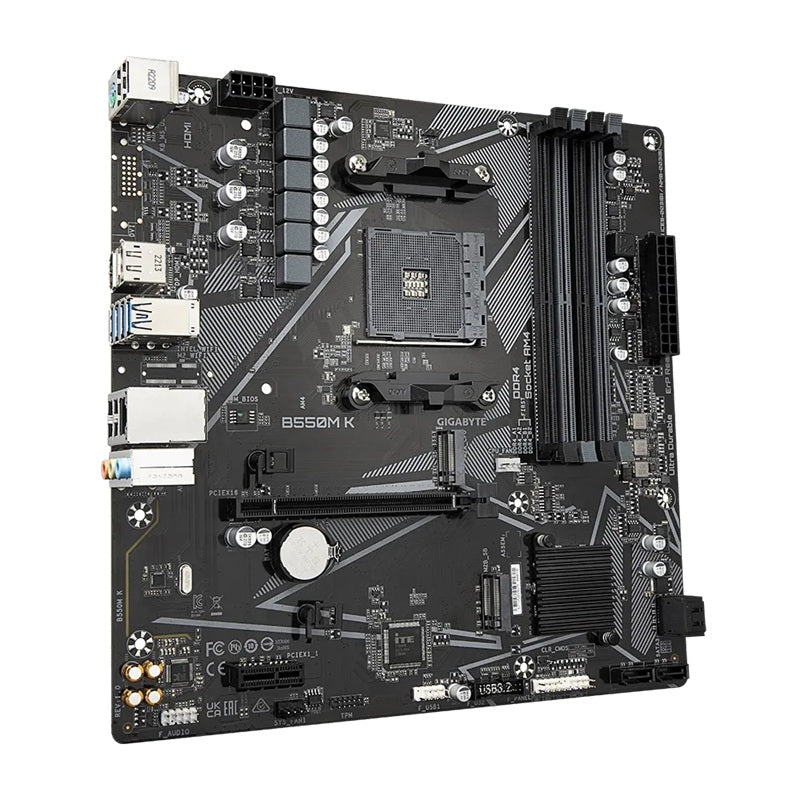

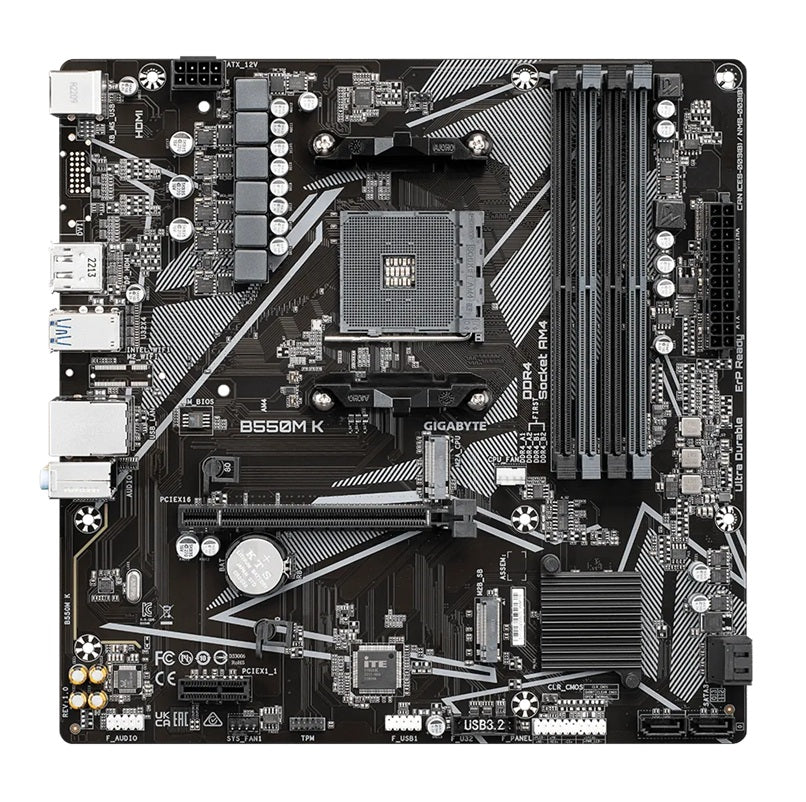

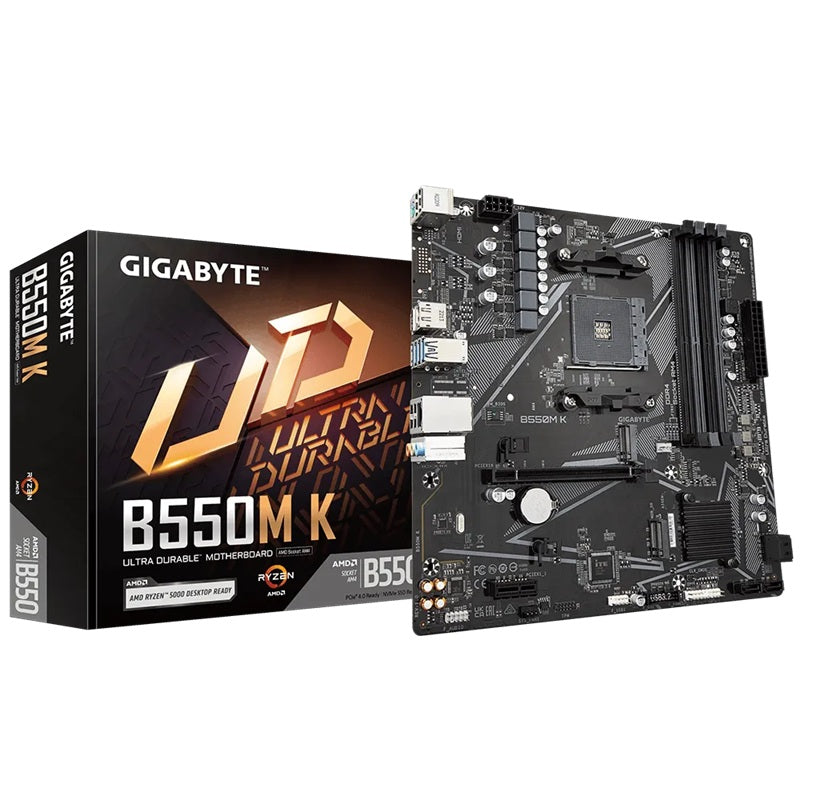

Gigabyte MBG-B550MK AMD AM4 M-ATX Motherboard 4x DDR4~128GB,1x PCIe x16, 1 x PCIe x1, 2x M.2, 4x SATA , 4x USB 3.2, 4x USB 2.0

FEATURES:

AMD B550 motherboard adopts digital power supply design, PCI-E 4.0 x16 graphics card slot, PCI-E 4.0 3.0 M.2 slot, Gigabit high-speed network card equipped with intelligent management software, Smart Fan 5

Supports AMD Ryzen„ 5000 Series Ryzen„ 5000 G Series Ryzen„ 4000 G Series and Ryzen„ 3000 Series Processors

Integrated 4 memory slots, support dual-channel ECC Non-ECC memory

PCI-E 4.0x16 graphics card dedicated slot

High-speed NVMe PCI-E 4.0 3.0 M.2 SSD slot

High-quality audio dedicated capacitor independent audio block isolation line

Gigabit high-speed network card equipped with intelligent management software

DP, HDMI interface supports multiple output functions

Q-Flash Plus can easily update BIOS without installing CPU, memory, and graphics card

Anti-sulfur resistance design prolongs service life

SPECIFICATION:

central processing unit (CPU)

AMD AM4 socket, supports: AMD Ryzen„ 5000 G-series processors AMD Ryzen„ 5000-series processors AMD Ryzen„ 4000 G-series processors AMD Ryzen„ 3000-series processors

(pleasetoCheck the GIGABYTE website for a list of supported processors)

chipset AMD B550

Memory

4 DDR4 DIMM slots,HighestSupport up to 128 GB (Single slot supports 32 GB capacity)

expansion 1 PCI-E x16 slot,1 PCI-E x1 slot,

storage device interface:

1 x M.2 socket (M2A_CPU) based on CPU

1 x M.2 socket (M2B_SB) based on chipset,

4 SATA 3.0 ports, based on chipset

USB:

Based on CPU:

4 USB 3.2 Gen 1 ports on the rear window IO

Based on chipset:

2 USB 3.2 Gen 1 ports, which need to be connected to the USB port on the motherboard via a cable

6 USB 2.0 1.1 ports (4 on the rear window IO, 2 need to be connected to the USB port on the motherboard via a cable)

operating system

Support Windows 11 64-bit

Support Windows 10 64-bit

PCB specification

Micro ATX specification 2
