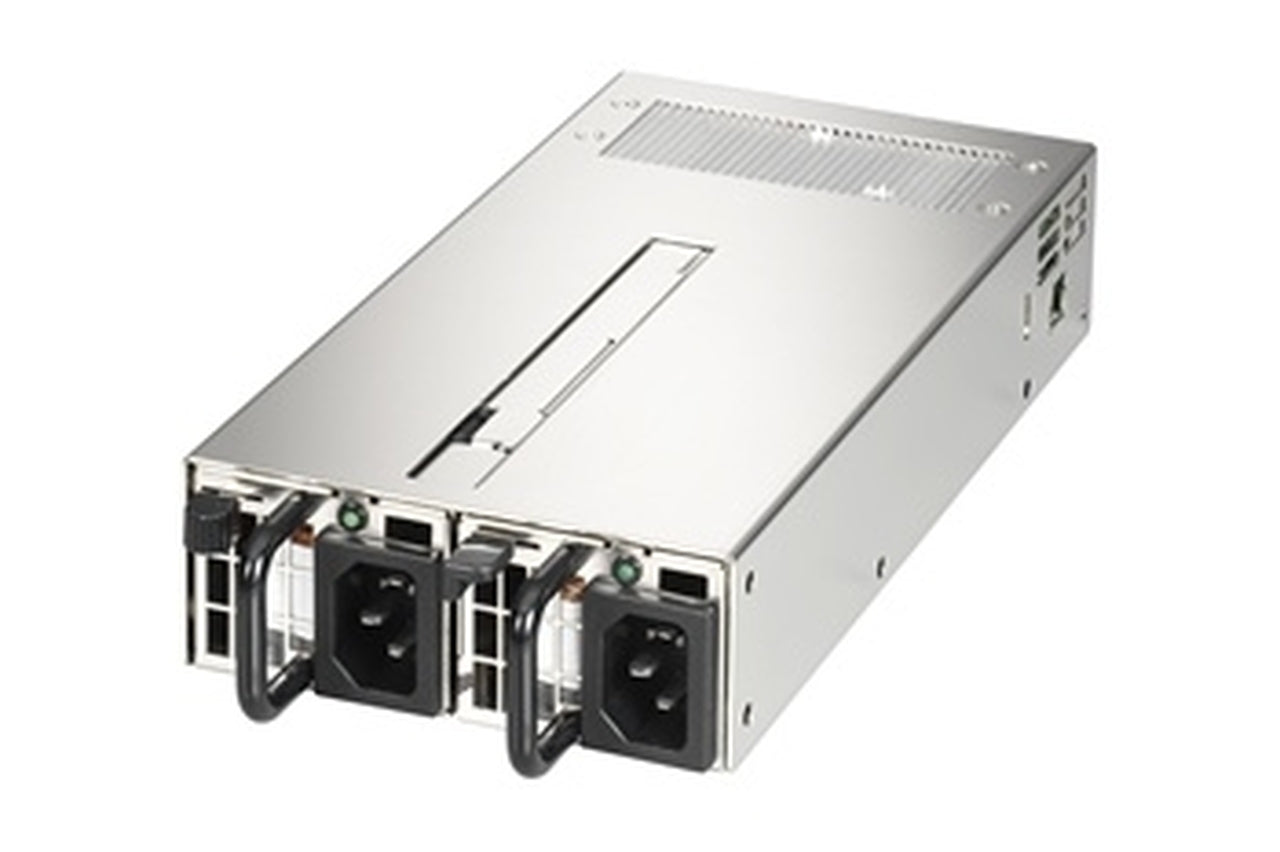

ZIPPY 1U REDUNTANT 120W PSU R1T2-5120V0H 215 X 106 X41.5 mm For Server

FEATURES

TEMPERATURE RANGE：OPERATING 0„ƒï½ž50„ƒ, STORAGE -20„ƒ~80„ƒ

HOLD UP TIME：WHEN POWER SHUTDOWN DC OUTPUT 12V MUST BE MAINTAIN 17MSEC IN REGULATION LIMIT AT NORMAL INPUT VOLTAGE

THE MAXIMUM POWER SUPPLY SYSTEM EFFICIENCY SHALL BE 86pct, MEASURED AT NOMINAL INPUT VOLTAGE 230 V AND FULL LOADING(12V:10A).

LEAKAGE CURRENT: 3.5 MA. MAX. AT NOMINAL VOLTAGE 250VAC

REMOTE ON OFF CONTROL

POWER GOOD SIGNAL：ON DELAY 100mS TO 550mS，OFF DELAY 1Ms

OVER POWER PROTECTION：110～150pct MAX

OVER VOLTAGE PROTECTION: 5V†’5.7~6.5V, 3.3V†’3.7~4.1V, 12V†’12.8~15V

SHORT CIRCUIT PROTECTION: 5V, 3.3V, 12V, -12V, 5VSB

SAFETY: MEET ULCUL, TUV, CCC

WARNING METHOD: AUDIO ALARM(BUZZER SOUND, RESETABLE), FALUT LED, TTL

THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS.

OUTPUT WATTAGE

120W

BEST SOLUTION FOR

Server

DIMENSION

215x106x41.5(mm)

8.46x4.17x1.63(inch)

INPUT SPEC

VOLTAGE： 90～264VAC FULL RANGE

FREQUENCY： 47～63HZ

INPUT CURRENT：2A (RMS) FOR 115 VAC

1A (RMS) FOR 230 VAC

INRUSH CURRENT：35A MAX. FOR 115 VAC PER MODULE

70A MAX. FOR 230 VAC PER MODULE

DC OUTPUT SPEC

Output Voltage Output Current Min. Output Current Max. Regulation Load Regulation Line Output Ripple Noise Max.[P-P]

5V 0 10 ±5pct ±1pct 50mV

12V 2 10 ±5pct ±1pct 120mV

3.3V 0 10 ± 5pct ±1pct 50mV

-12V 0 0.3 ±10pct ± 1pct 120mV

5VSB 0.1 3 ±5pct ±1pct 50mV
