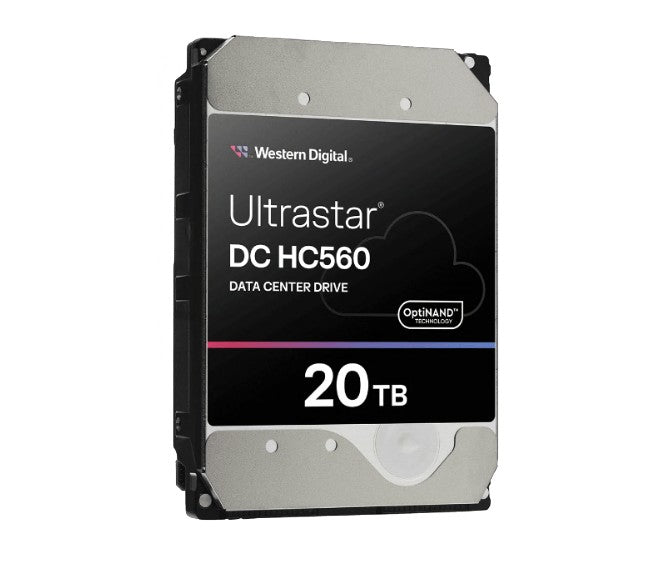

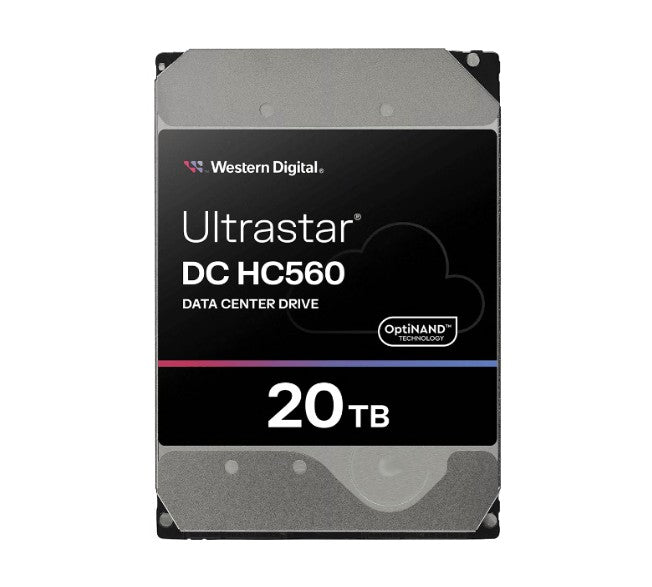

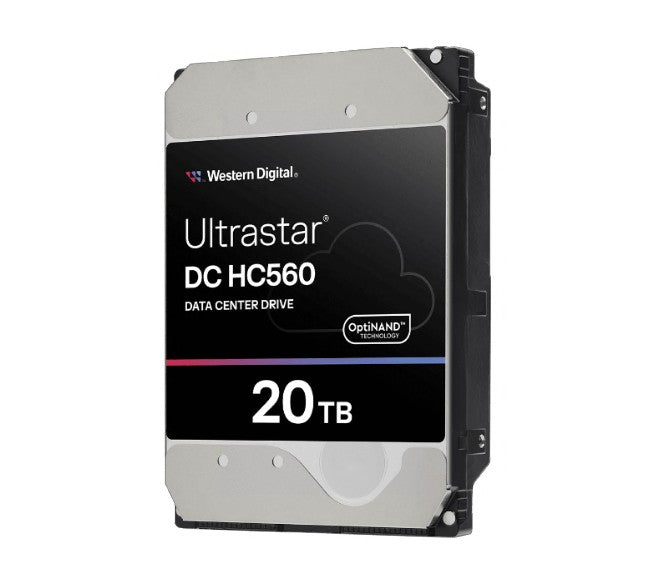

Western Digital WD Ultrastar DC HC560 20TB 3.5 ft SATA 7200 RPM Cache 512MB 5-year limited warranty 0F38785 (Base SE)

Product Highlights

20TB capacity in a standard 3.5-inch form factor

ePMR CMR technology works with all capacity enterprise applications environments

OptiNAND for highest capacities

Reliable, field-proven, 7th generation HelioSeal design delivers outstanding power efficiency

Industry-leading HDD technologies OptiNAND, EAMR, TSA, HelioSeal

2.5M hours (projected) MTBF rating 5-year limited warranty

Self-Encrypting Drive (SED) options

Applications

Cloud and hyperscale storage

Massive scale-out (MSO), high-density data centers

Distributed file systems

Bulk storage using object storage solutions like Ceph„ and OpenStack Swift

Primary and secondary storage for Apache Hadoop for big data analytics

Full Specifications

Features

-Ideal for high-capacity enterprise applications and environments

-Industry-leading HDD technologies: OptiNAND technology, EAMR, TSA, HelioSeal

-Projected 2.5M hours MTBF

Capacity 20TB

Form Factor 3.5-Inch

Compatibility Windows, Windows Server, Linux

Interface SATA

Transfer Rate up to 291MB s

Disk Speed (RPM) 7200 RPM

Recording Technology EAMR

Cache Size 512MB

Security SE

Warranty 5-Year Limited Warranty

Dimensions (L x W x H) 147mm x 101.6mm x 26.1mm

Weight 690gms

Model Number 0F38785

Operating Temperature 5 degreeC to 60 degreeC

Non-Operating Temperature -40 degreeC to 70 degreeC

Drive 3.5 ft

Certifications BSMI, ICES-003 NMB-003, CE, FCC, KC, Maghreb, RCM, UKCA, VCCI, CB-Scheme, TUV, UL
