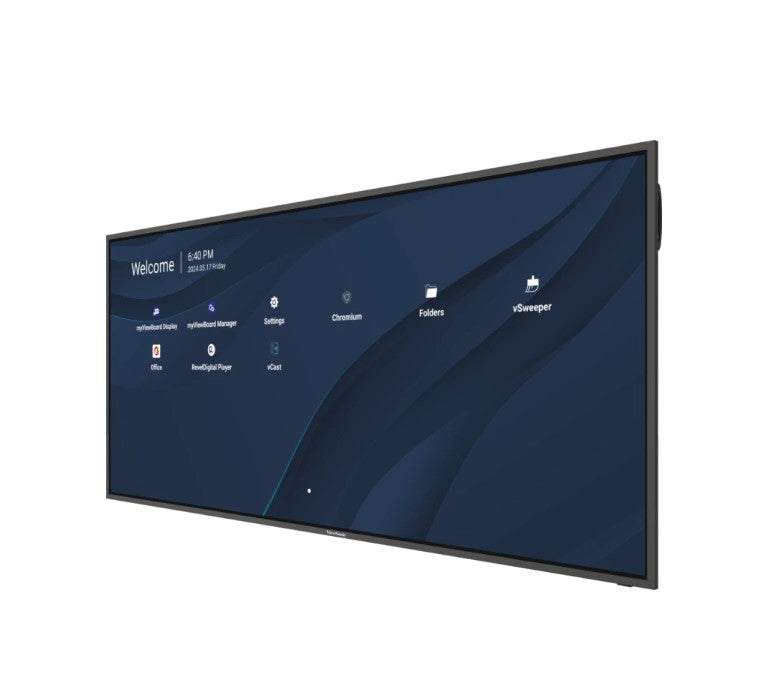

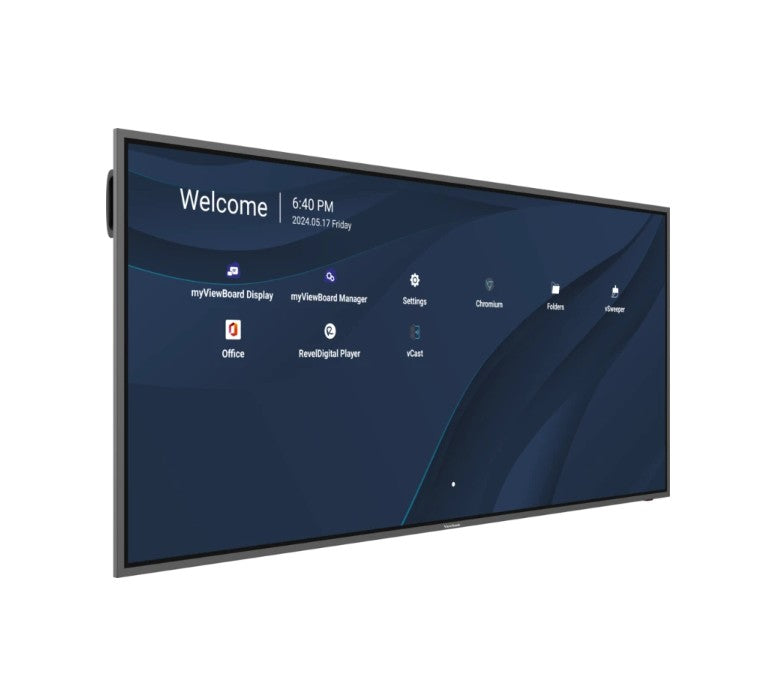

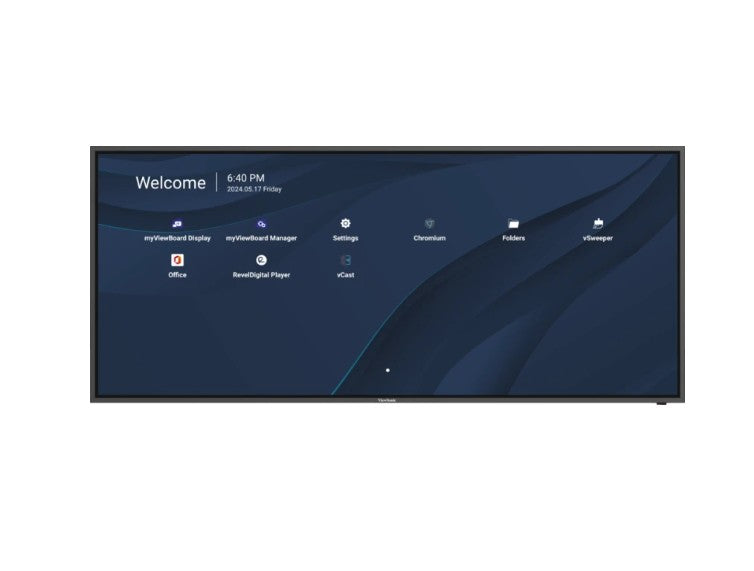

CDE92UW

92 ft 5K Presentation Display

Ultrawide 92 ft display with 5K resolution for immersive, crystal-clear visuals

Reliable commercial-grade display ensures smooth multimedia playback 24 7.

21:9 aspect ratio optimised for Microsoft Teams Rooms Front Row mode.

Ultra-slim bezel for sleek, contemporary aesthetic

Portrait layout capability for versatile and high-impact digital signage.

Panel Size: 92 ft

Type Tech: TFT LCD Module with DLED Backlight, VA

Display Area (mm): 2141.952 (H) — 903.636 (V) (91.52 ft diagonal)

Native Resolution: 5120 x 2160

Aspect Ratio: 21:9

Colors: 1.07G colors (8bits 2bits FRC)

Brightness: 500 nits (Typ.)

Contrast Ratio: OC spec 5000:1 (typ.)

Response Time: 6.5ms

Viewing Angles: H = 178, V = 178 (Typ.)

Backlight Life: 50,000 hrs (typ.)

Surface Treatment: Anti-Glaire, 3H hardness, Haze 25pct

Bezel: 18 18 18 18 mm (L R T B)

Orientation: Landscape Portrait

INPUT

HDMI: Rear x 4 (HDMI 2.1x 1, HDMI 2.0 x3)

DisplayPort: 1

Audio: 1

RS-232: 1

OPS Slot: 1 (OPS Slot 80pin)

WiFi Slot: 1 (Module Slot)

OUTPUT

HDMI: 1

Audio: 1

SPDIF: 1

LAN

RJ45: 1

USB

Type A: REAR x 1 (USB 2.0 support OTG)

REAR x 2 (USB 3.2 Gen 1)

TOP x 2 (USB 3.2 Gen 1)

support smart USB

Type C: REAR x1 (PD100W, DP1.2, USB2.0, 100M ethernet)

SPEAKERS

20W x 2 20W x 1 (Subwoofer)

COMPATIBILITY

HDMI: HDMI 1: 5120x2160 60Hz (YUV444),

5120x2160 30Hz (YUV420)

HDMI 2 3 4: 3840x2160 60Hz

DisplayPort: 5120 x 2160
