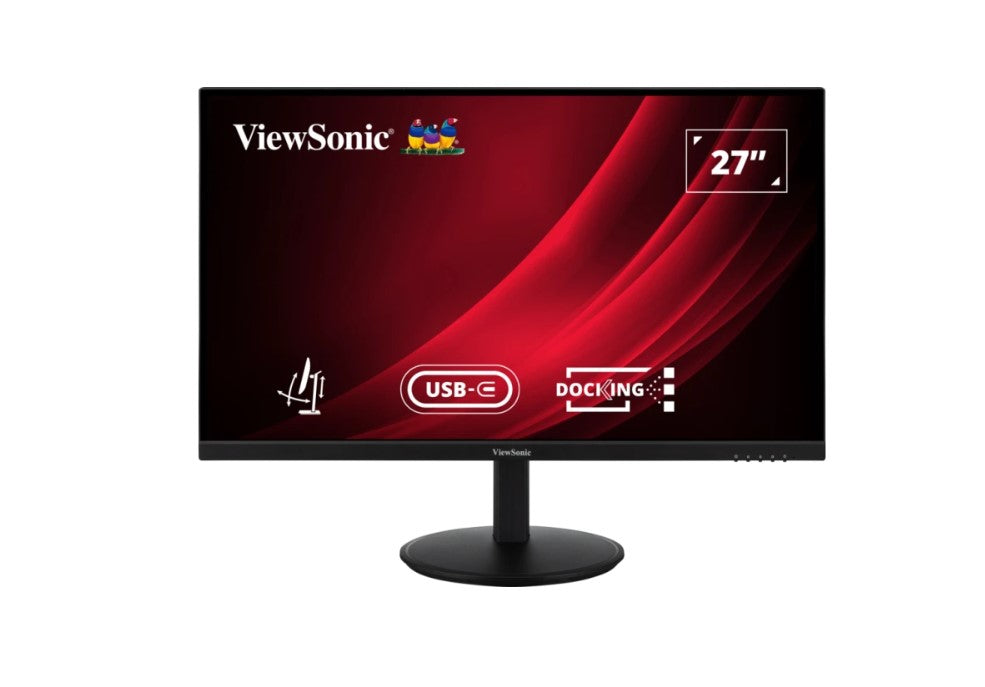

ViewSonic LCD Display VG2709U-2K

VG2709U-2K

27 ft QHD 100Hz USB-C Docking Monitor with Dual Speakers and Daisy Chain

SuperClear IPS panel with QHD 2560 X 1440 resolution

100Hz Variable refresh rate delivers fluid visuals

Integrated docking¯station¯with Ethernet, Daisy Chain capability and delivers up to 100W charging via USB-C connection

Ergonomic tilt, swivel, pivot and height adjustment capabilities

TCO, EnergyStar, EPEAT Silver certified for sustainability

SPECIFICATIONS

Display

Display Size (in.): 27

Viewable Area (in.): 27

Panel Type: IPS Technology

Resolution: 2560 x 1440

Resolution Type: QHD (Quad HD)

Static Contrast Ratio: 1,000:1 (typ)

Dynamic Contrast Ratio: 50M:1

High Dynamic Range: HDR10

Light Source: LED

Brightness: 350 cd m² (typ)

Colors: 16.7M

Color Space Support: 8 bit true

Aspect Ratio: 16:9

Response Time (Typical GTG): 4ms

Response Time (GTG w OD): 4ms

Viewing Angles: 178º horizontal, 178º vertical

Backlight Life (Hours): 30000 Hrs (Min)

Curvature: Flat

Refresh Rate (Hz): 100

Variable Refresh Rate Technology: Yes

Low Blue Light: Software solution

Flicker-Free: Yes

Color Gamut: NTSC: 72pct size (Typ)

sRGB: 104pct size (Typ)

Pixel Size: 0.233 mm (H) x 0.233 mm (V)

Surface Treatment: Anti-Glare, Hard Coating (3H)

Compatibility

PC Resolution (max): 2560x1440

Mac Resolution (max): 2560x1440

PC Operating System: Windows 10 11 certified macOS tested

Mac Resolution (min): 2560x1440

Connector

USB 3.2 Type A Down Stream: 2

USB 3.2 Type B Up Stream: 1

USB 3.2 Type C Up Stream DisplayPort Alt mode : 1 (98W power charger)

3.5mm Audio Out: 1

HDMI 2.0 (with HDCP 2.2): 1

DisplayPort: 1

DisplayPort Out: 1

Power in: 3-pin Socket (IEC C14 CEE22)

Ethernet LAN (RJ45): 1

Audio

Internal Speakers: 2.5Watts x2

Power

Eco Mode (Conserve): 16.2W

Eco Mode (optimized): 19.1W

Consumption (typical): 22.3W

Consumption (max): 36W

Voltage: AC 100-240V

Stand-by: 0.5W

Power Supply: Internal Power Supply

Additional Hardware

Kensington Lock Slot: 1

Cable Organization: Yes

Controls

Physical Controls: Key 1 (favorite), Key 2, Key 3, Key 4, Key 5 (power)

On Screen Display: Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu

Operating Conditions

Temperature: 32 degreeF to 104 degreeF (0 degreeC to 40 degreeC)

Humidity (non-condensing): 20pct to 90pct

Wall Mount

VESA Compatible: 100 x 100 mm

Input Signal

Frequency Horizontal: HDMI (v2.0): 31 ~ 184KHz, DisplayPort (v1.4): 30 ~ 152KHz, Type C: 30 ~ 152KHz

Frequency Vertical: HDMI (v2.0): 48 ~ 100Hz, DisplayPort (v1.4): 48 ~ 100Hz, Type C: 48 ~ 100Hz

Video Input

Digital Sync: TMDS - HDMI (v2.0), PCI-E - DisplayPort (v1.4), Micro-Packet - Type C

Ergonomics

Height Adjust (mm): 130

Swivel: 360º

Tilt (Forward Back): -3.5º 28º

Pivot (Right Left): 90º 90º

Weight (imperial)

Net (lbs): 14.8

Net Without Stand (lbs): 9.7

Gross (lbs): 17.9

Weight (metric)

Net (kg): 6.7

Net Without Stand (kg): 4.4

Gross (kg): 8.1

Dimensions (imperial) (wxhxd)

Packaging (in.): 30.5 x 18.3 x 5.5

Physical (in.): 24.17 x 16.06~21.18 x 9.18

Physical Without Stand (in.): 24.17 x 14.4 x 2.01
