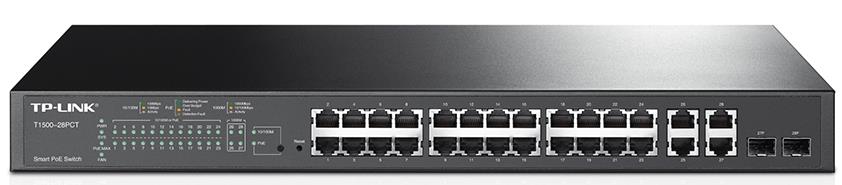

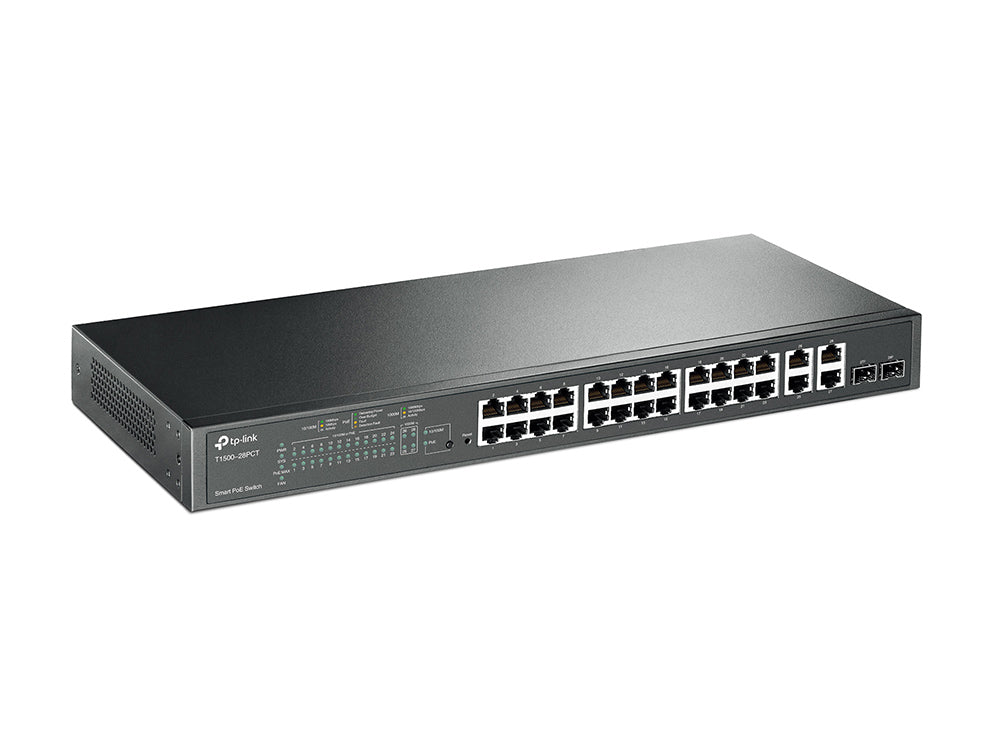

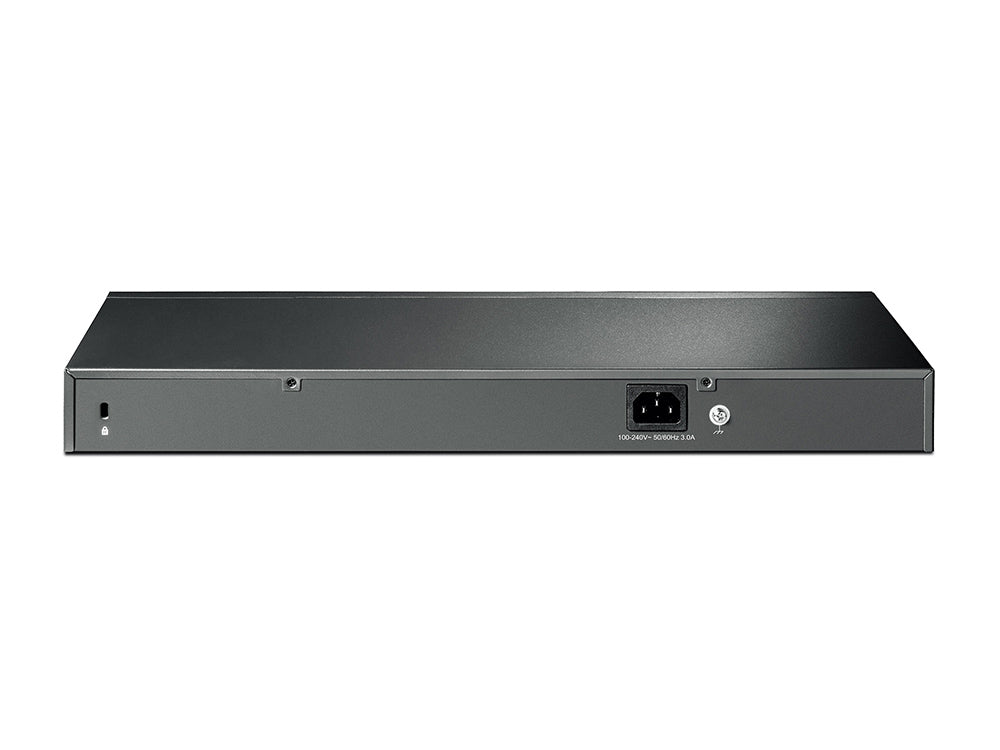

TP-Link T1500-28PCT (TL-SL2428P) JetStream 24-Port 10 100Mbps 4-Port Gigabit Smart PoE Switch

Features 24 PoE ports, with total PoE power budget of 192W and useful PoE power management features

Integrated security strategy including 802.1Q VLAN, Port Security and Storm control help protect LAN area investment

L2 L3 L4 QoS and IGMP snooping optimize voice and video applications

WEB CLI managed modes, SNMP, RMON bring abundant management features

Dual Firmware Image improves reliability and up-time of your network

HARDWARE FEATURES

Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at

Interface 24 10 100Mbps RJ45 Ports

(Auto Negotiation Auto MDI MDIX)

4 10 100 1000Mbps RJ45 Ports

(Auto Negotiation Auto MDI MDIX)

2 Combo Gigabit SFP Slots

Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

100BASE-TX 1000Base-T: UTP category 5, 5e or above cable

(maximum 100m)

1000BASE-X: MMF, SMF

Fan Quantity 2

Physical Security Lock Yes

PoE Budget 192W

Dimensions ( W x D x H ) 17.38.71.7 in.(44022044 mm)

Mounting Rack Mountable

Max Power Consumption 21.7W (220V 50Hz with no PD connected)

229.73W (110V 60Hz with 192W PD connected)

Max Heat Dissipation 74.04 BTU h (with no PD connected)

783.84 BTU h (with 192W PD connected)

PERFORMANCE

Bandwidth Backplane 12.8Gbps

Packet Forwarding Rate 9.5Mpps

MAC Address Table 8k

Jumbo Frame 9216 Bytes
