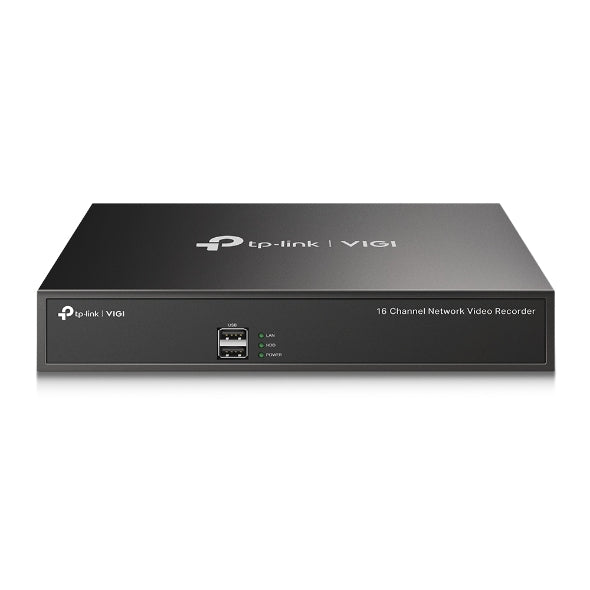

TP-Link VIGI NVR1016H VIGI 16 Channel Network Video Recorder

24 7 Continuous Recording: Stores up to 10 TB of footage from connected cameras to secure your data for quick, convenient access.

16-Channel Real-Time Live View: Sharp image definition up to 8MP and a 16-channel display ensures you capture every detail, from every angle.

Quick Lookup and Playback: Find the target footage easily by date, event types, and tags. Replay with variable playback speeds to quickly review footage.

Remote Monitoring: Dedicated VIGI app is developed for remote monitoring, providing ease and convenience.

H.265: Without using any extra bandwidth, your camera transmits compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

ONVIF Ensure Compatibility: Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility.

1 HDD Interface (up to 10 TB) : Stores up to 10 TB (720 days–³ of video) on a SATA hard drive, keeping your data storage secured locally.

Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere. Suitable for management.

NETWORK

Protocol TCP IP, DHCP, DNS, NTP, UPnP

Incoming Bandwith 80 Mbps

Outgoing Bandwidth 60 Mbps

GENERAL

Operating Temperature -10“55 degreeC

Dimensions( H X W X D ) 246.2 — 148.2 — 45 mm

Weight 578.5 g

External Power Supply 12V DC 1.5 A

Power Consumption 4.25 W (without disk)

13.10 W (with disk)

VIDEO IMAGE

Video Input 16-Channel IP Video Input, up to 8 MP Resolution

Video Output Recording Resolution: 8 MP 5 MP 4 MP 3 MP 1080p UXGA 720p VGA 4CIF DCIF 2CIF CIF QCIF

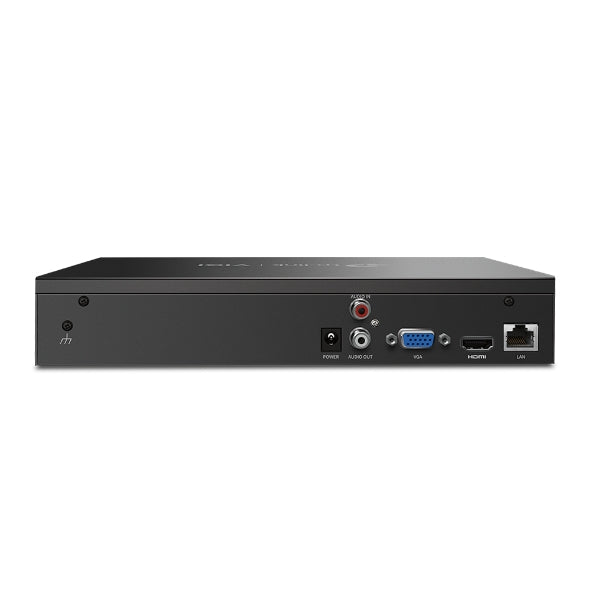

HDMI VGA

Output Resolution: 1920 — 1080p 60Hz, 1280 — 1024 60Hz, 1280 — 720 60Hz, 1680 — 1050 60Hz, 1440 — 900 60Hz

DECODING

Decoding Format H.265 H.265 H.264 H.264

Live View Playback Resolution 8 MP 5 MP 4 MP 3 MP 1080p UXGA

720p VGA 4CIF DCIF 2CIF CIF
