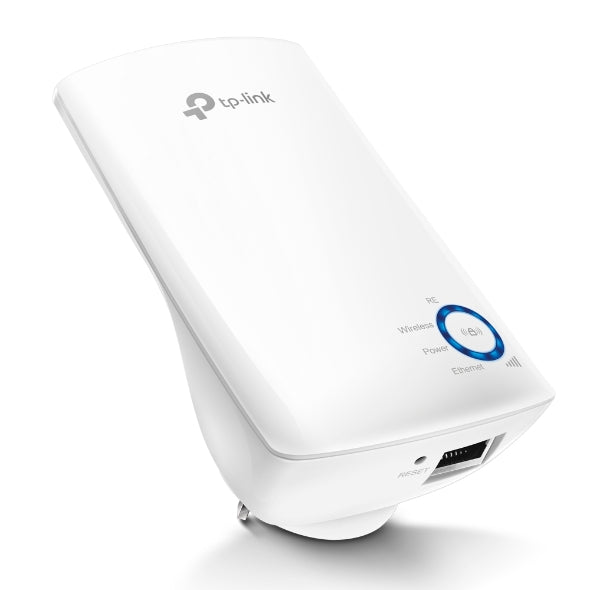

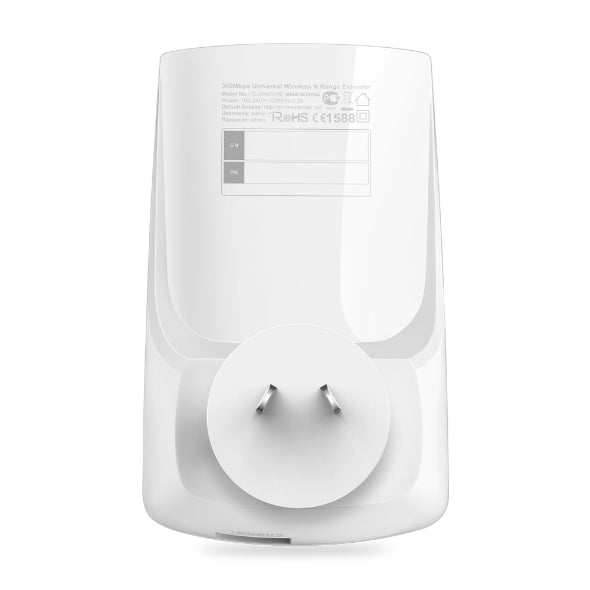

TP-Link TL-WA850RE N300 Universal WiFi Range Extender 2.4GHz (300Mbps) 1x100Mbps LAN 802.11bgn 2x OnBoard antennas Mini size wall-mounted

Range Extender mode boosts wireless signal to previously unreachable or hard-to-wire areas flawlessly

Miniature size and wall-mounted design make it easy to deploy and move flexibly

Easily expand wireless coverage at a push of Range Extender button

Ethernet port allows the Extender to function as a wireless adapter to connect wired devices

HARDWARE FEATURES

Plug Type EU, UK, US

Interface 1 10 100M Ethernet Port (RJ45)

Button RE (Range Extender) Button, Reset Button

Power Consumption About 3W

Antenna 2 internal

Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

Dimensions ( W x D x H ) 4.3x 2.6 x 3.0in. (110.0 x 65.8 x 75.2mm)

WIRELESS FEATURES

Frequency 2.4~2.4835GHz

Signal Rate 11n: Up to 300Mbps (dynamic)

11g: Up to 54Mbps (dynamic)

11b: Up to 11Mbps (dynamic)

Reception Sensitivity 270M: -68dBm 10pct PER

130M: -68dBm 10pct PER

108M: -68dBm 10pct PER

54M: -68dBm 10pct PER

11M: -85dBm 8pct PER

6M: -88dBm 10pct PER

1M: -90dBm 8pct PER

Transmit Power 20 dBm (EIRP)

Wireless Modes Range Extender

Wireless Functions WMM (Wi-Fi Multimedia)

Wireless MAC Address Filtering

Wireless Statistic

Domain Login Function

Wireless Security 64 128 152-bit WEP

WPA-PSK WPA2-PSK

OTHERS

Certification CE, RoHS

Package Contents 300Mbps Universal Wi-Fi Range Extender TL-WA850RE

RJ-45 Ethernet Cable

Resource CD

Quick Installation Guide

System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, 8, 10, Mac OS, NetWare, UNIX or Linux.

Environment Operating Temperature: 0 degreeC~40 degreeC (32 degreeF~104 degreeF)

Storage Temperature: -40 degreeC~70 degreeC (-40 degreeF~158 degreeF)

Operating Humidity: 10pct~90pct non-condensing

Storage Humidity: 5pct~90pct non-condensing
