TP-Link TL-WA801N 300Mbps Wireless N Access Point

AC1200 Dual-Band Wi-Fi “ 867 Mbps at 5 GHz and 300 Mbps at 2.4 GHz band.

Flexible Deployment “ Supports Passive PoE to carry electrical power and data simultaneously.

Multiple Modes “ Supports Access Point, Range Extender, Multi-SSID, and Client modes to meet any network needs.

MU-MIMO Technology “ Simultaneously transfers data to multiple devices for 2— faster performance.

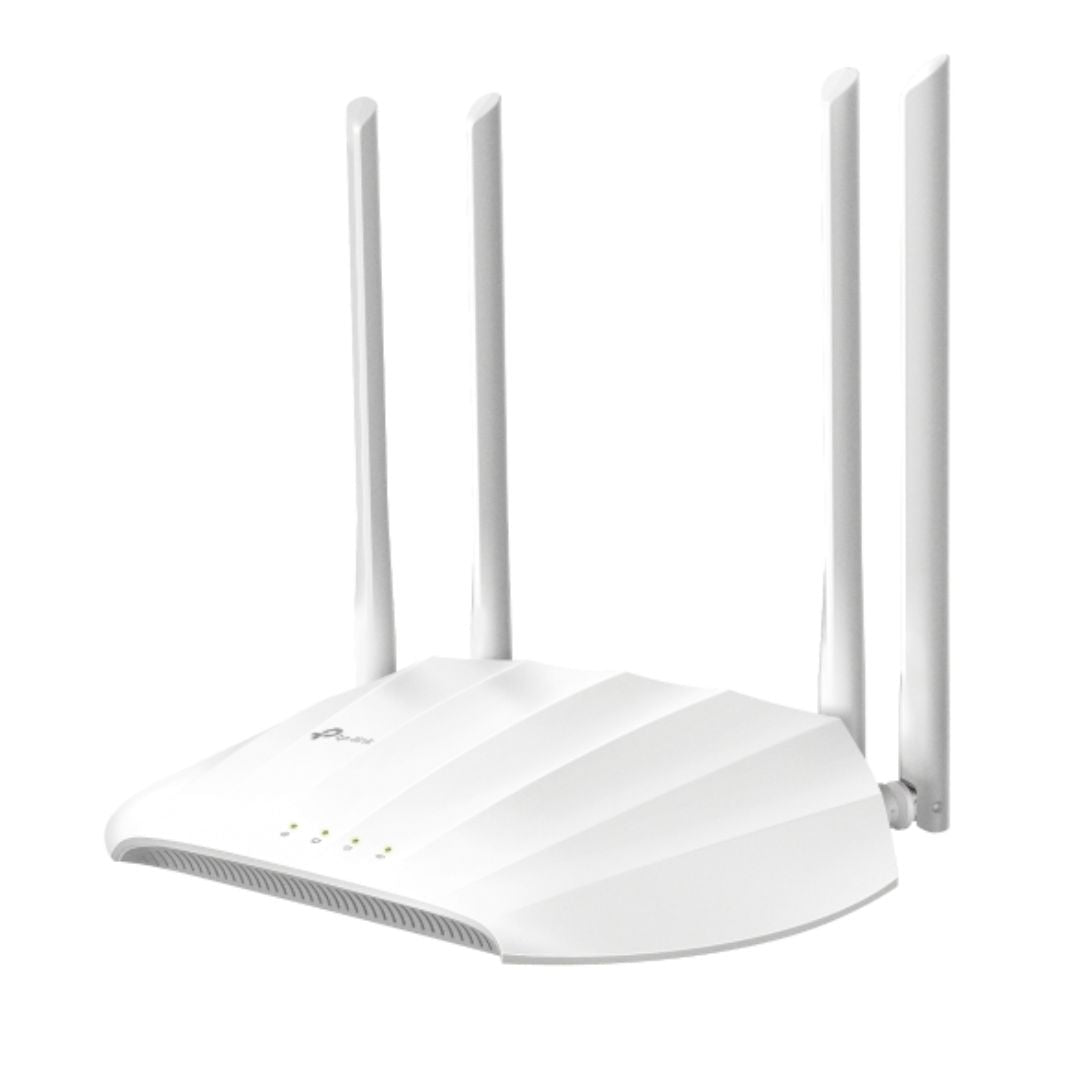

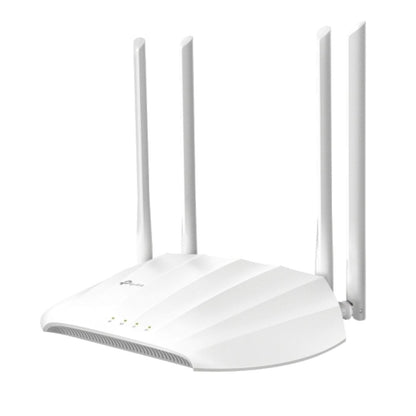

Boosted Coverage “ Four fixed antennas equipped with Beamforming technology extend and concentrate the Wi-Fi signals.

Captive Portal “ Offers a designed portal page for heightened security and marketing.

HARDWARE FEATURES

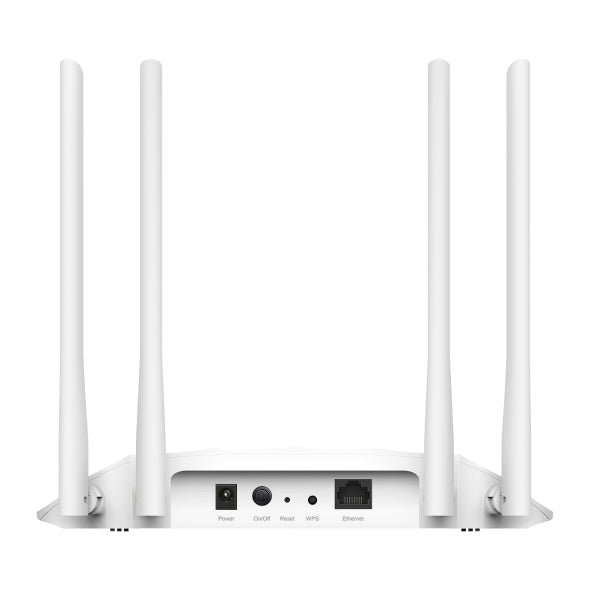

Interface 1— 10 100 1000 Mbps Ethernet Port

(Supports Passive PoE)

Button Power On Off Button, WPS Button, Reset Button

External Power Supply 12V 1.5A

Wireless Standards IEEE802.11b g n 2.4 GHz, IEEE 802.11ac n a 5 GHz

Dimensions ( W x D x H ) 225—145.5—37 in (400—255—72 mm)

Antenna Type 4 Fixed High Performance Antennas

WIRELESS FEATURES

Frequency 2.4 GHz and 5 GHz

Signal Rate 867 Mbps at 5 GHz, 300 Mbps at 2.4 GHz

Reception Sensitivity 5 GHz:

11a 6 Mbps: -95 dBm, 11a 54 Mbps: -81 dBm

11ac VHT20(MCS0): -94 dBm, 11ac VHT20(MCS8): -71 dBm

11n HT40(MCS0): -91 dBm, 11n HT40(MCS7): -71 dBm

11ac VHT80(MCS0): -88 dBm, 11ac VHT80(MCS9): -63 dBm

2.4 GHz:

11g 54Mbps: -78 dBm

11n HT20(MCS0): -92 dBm, 11n HT20(MCS7): -74 dBm

11n HT40(MCS0): -88 dBm, 11n HT40(MCS7): -72 dBm

Transmit Power CE: 20dBm(2.4GHz), 23dBm(5.15GHz~5.25GHz)

FCC: 30dBm(2.4GHz5GHz)

Wireless Modes Access Point, Range Extender, Client, Multi-SSID

Wireless Functions Enable Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics, Wireless Multicast Forwarding, DHCP Server, Access Control

Wireless Security 64 128-bit WEP, WPA WPA2, WPA-PSK WPA-PSK2 encryptions

DHCP Server, DHCP Client List

Quality of Service WMM

Advanced Functions Captive Portal

OTHERS

Certification CE, FCC, RoHS

Package Contents Wireless Access
