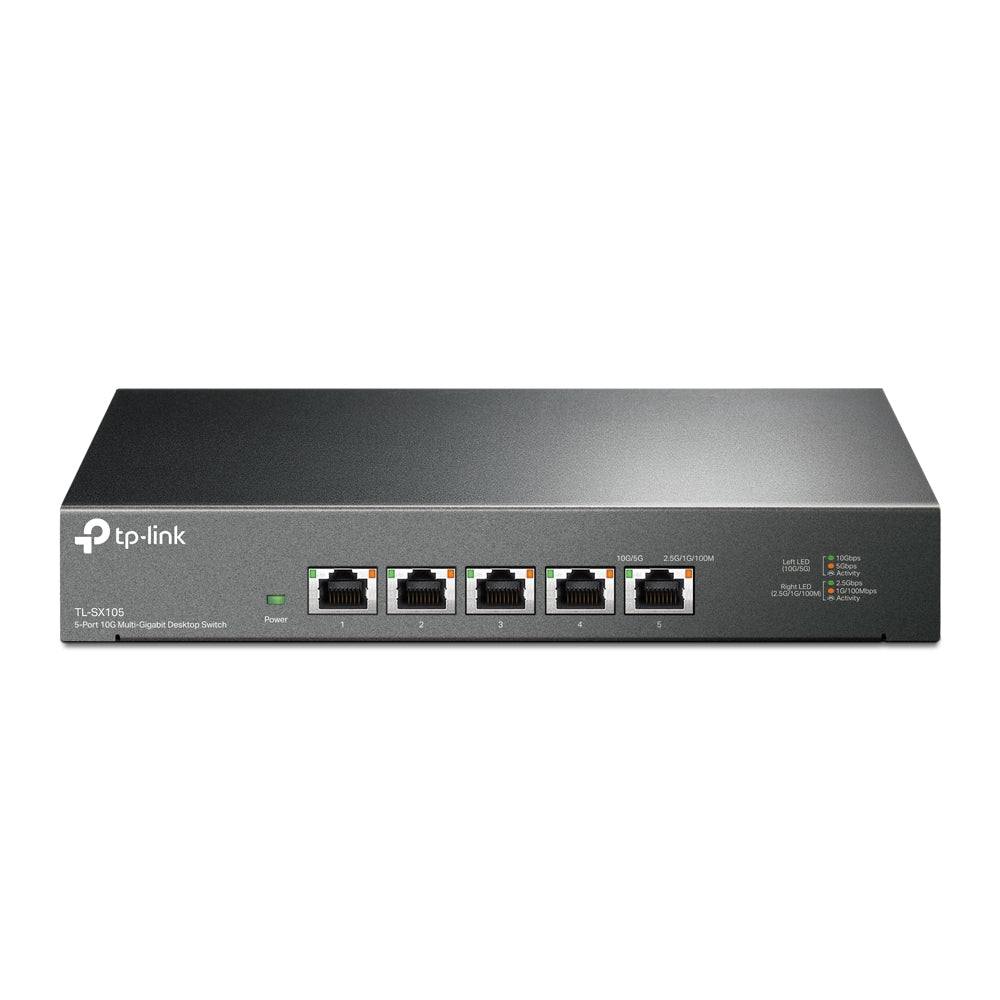

TP-Link TL-SX105 5-Port 10G Desktop Switch, up to 100 Gbps switching capacity, Auto-negotiation, Silent Operation, Metal Casing

5-Port 10G Desktop Switch

Five 10 Gbps Ports. 5— 10-Gigabit ports unlock the highest performance of your 10G Multi-Gig bandwidth and devices and provide up to 100 Gbps of switching capacity.

Lightning-Fast Connections. Provides lightning-fast connections to 10G NAS, Server, 10G PCIe Adapter NIC, gaming computer, 2.5G 5G 10G WiFi 6 AP, 8K video, and more.

Ideal for Various Scenarios. Built for lightning-fast connections in LAN parties, home entertainment, small and home offices, and workstations.

Optimal 5-Speed Connections. Auto-negotiation for 5-speed (100Mbps 1G 2.5G 5G 10G) connections provide optimal performance.

Silent Operation. The revolutionary fanless design ensures unprecedented silent operation, ideal for any home or business.

Durable Metal Casing. Durable metal casing, desktop wall-mounting, and professional heat dissipation design are well suited for different environments.

Plug and Play. Allows for easy deployment without the need for a technician.

HARDWARE FEATURES

Standards and Protocols IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1p, 802.3an, 802.3bz

Interface 5— 100Mbps 1Gbps 2.5Gbps 5Gbps 10Gbps Ports, Auto-Negotiation, Auto-MDI MDIX

Fan Quantity Fanless

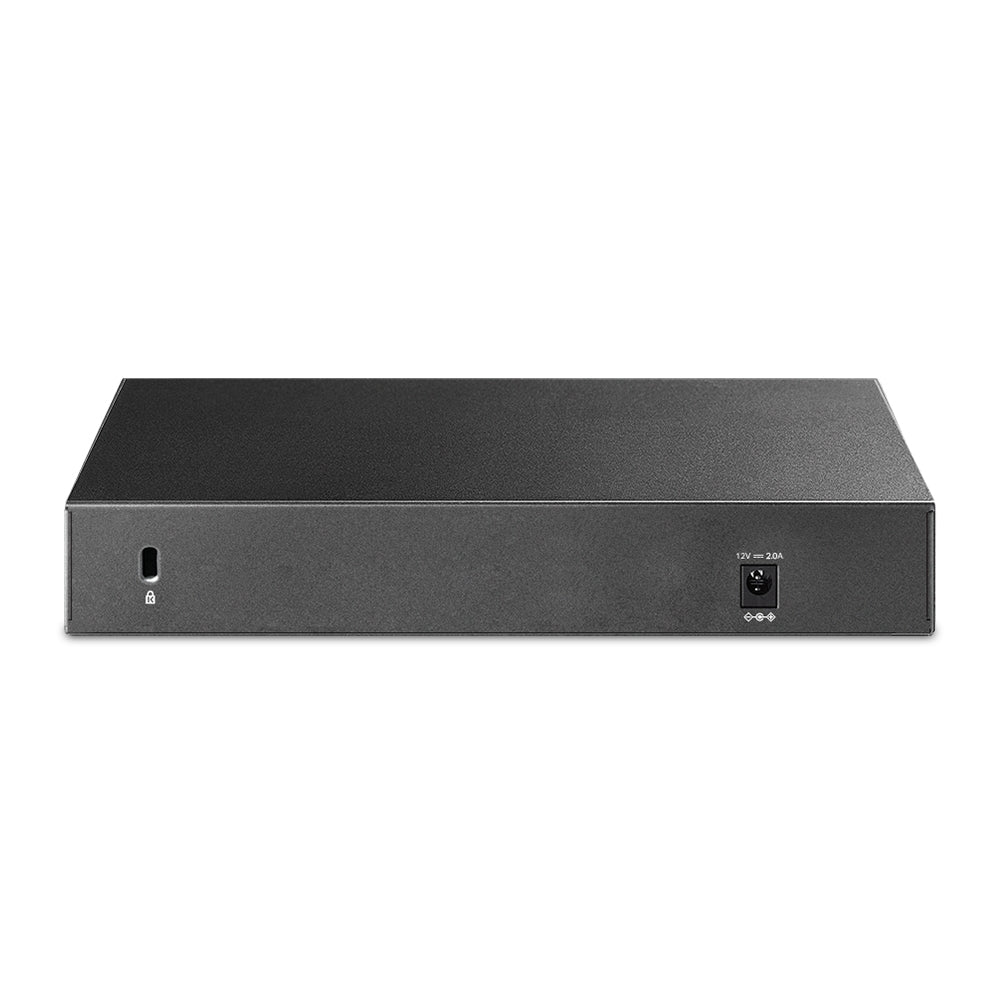

External Power Supply External Power Adapter (Output: 12 VDC 2.0 A)

LED Indicator System Power: 1

Link Act Indicators: 5, 1 indicator per port built into each RJ-45 port

Dimensions ( W x D x H ) 8.9—5.2—1.4 in (226—131—35 mm)

Max Power Consumption 21.4 W

PERFORMANCE

Switching Capacity 100 Gbps

Packet Forwarding Rate 74.4 Mpps

MAC Address Table 32 K

Packet Buffer Memory 2 Mb

Jumbo Frame 10 KB

SOFTWARE FEATURES

Advanced Features 802.3X Flow Control

802.1p DSCP QoS

Transfer Method Store and Forward

OTHERS

Certification CE, FCC ,RoHS

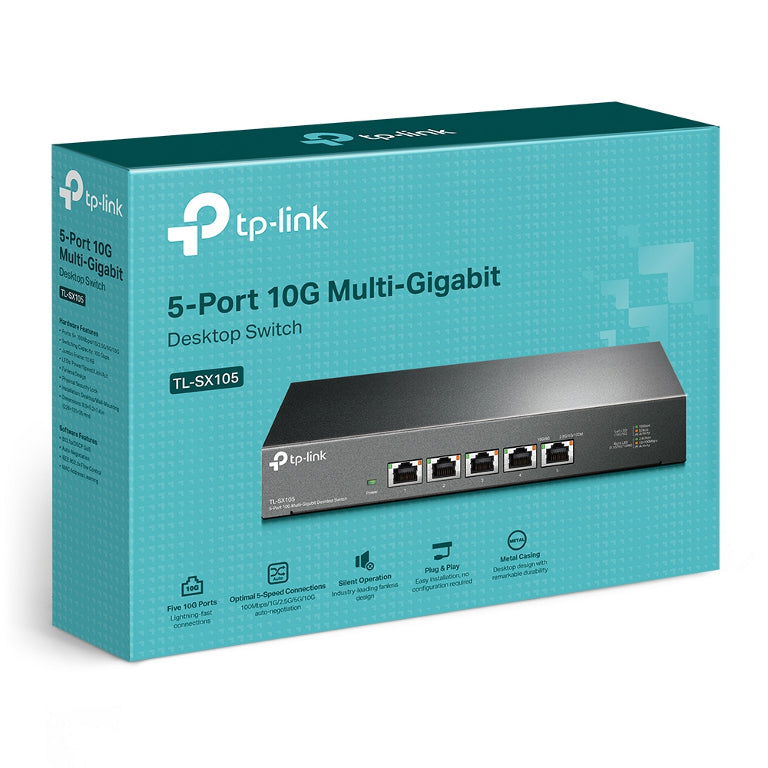

Package Contents 5-Port 10G Multi-Gigabit Desktop Rackmount Switch TL-SX105

Power Cord
