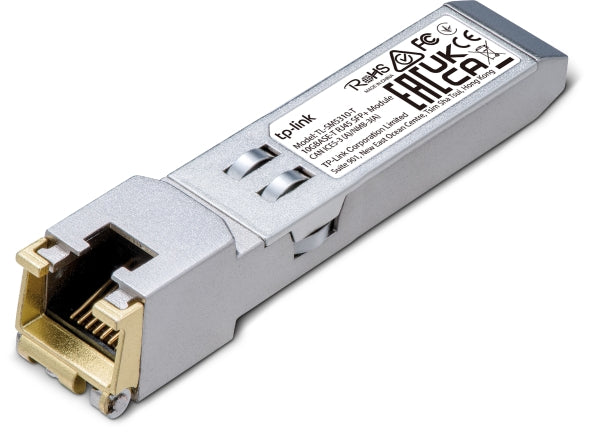

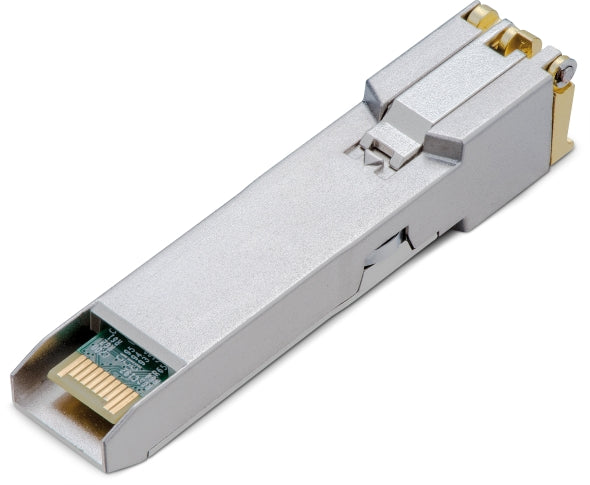

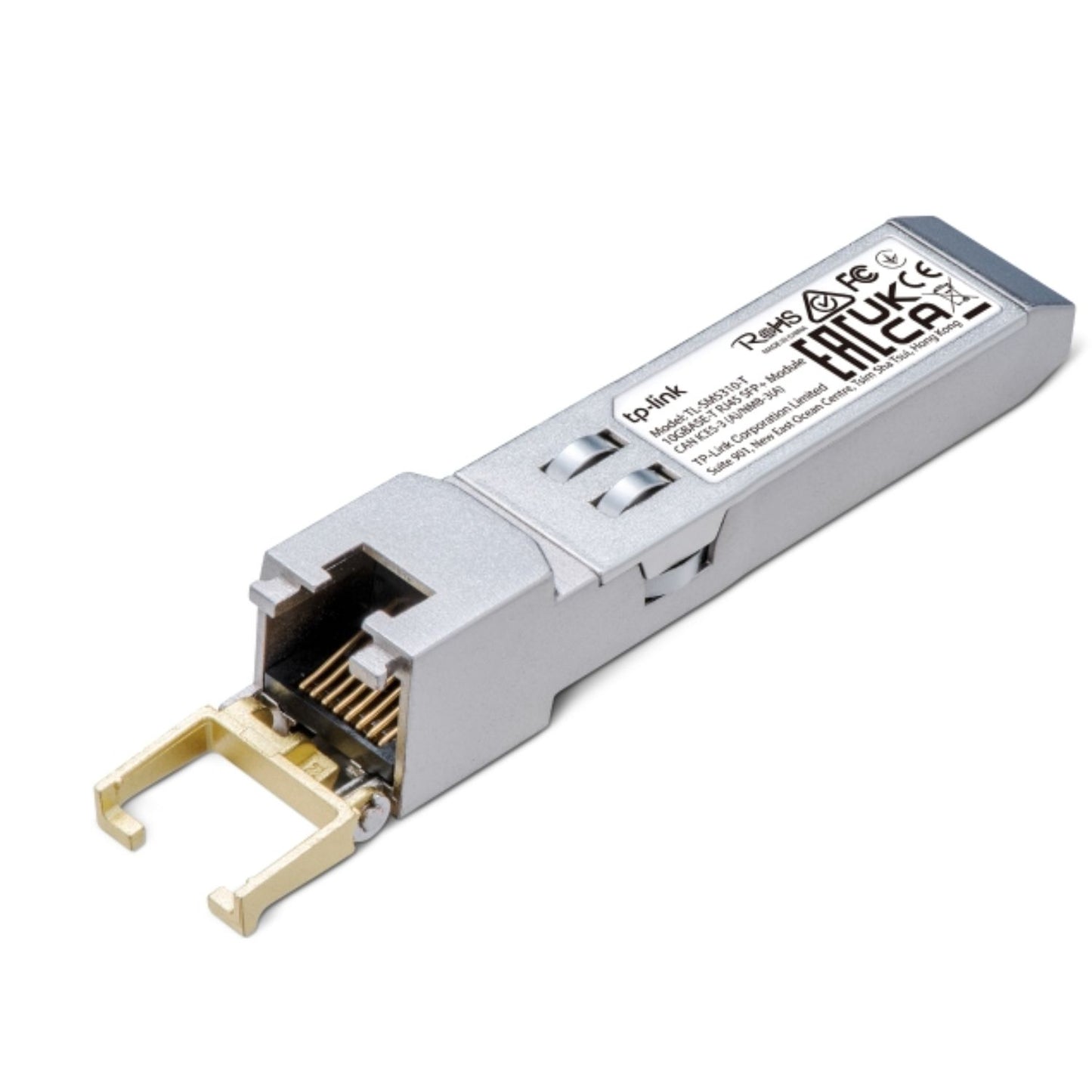

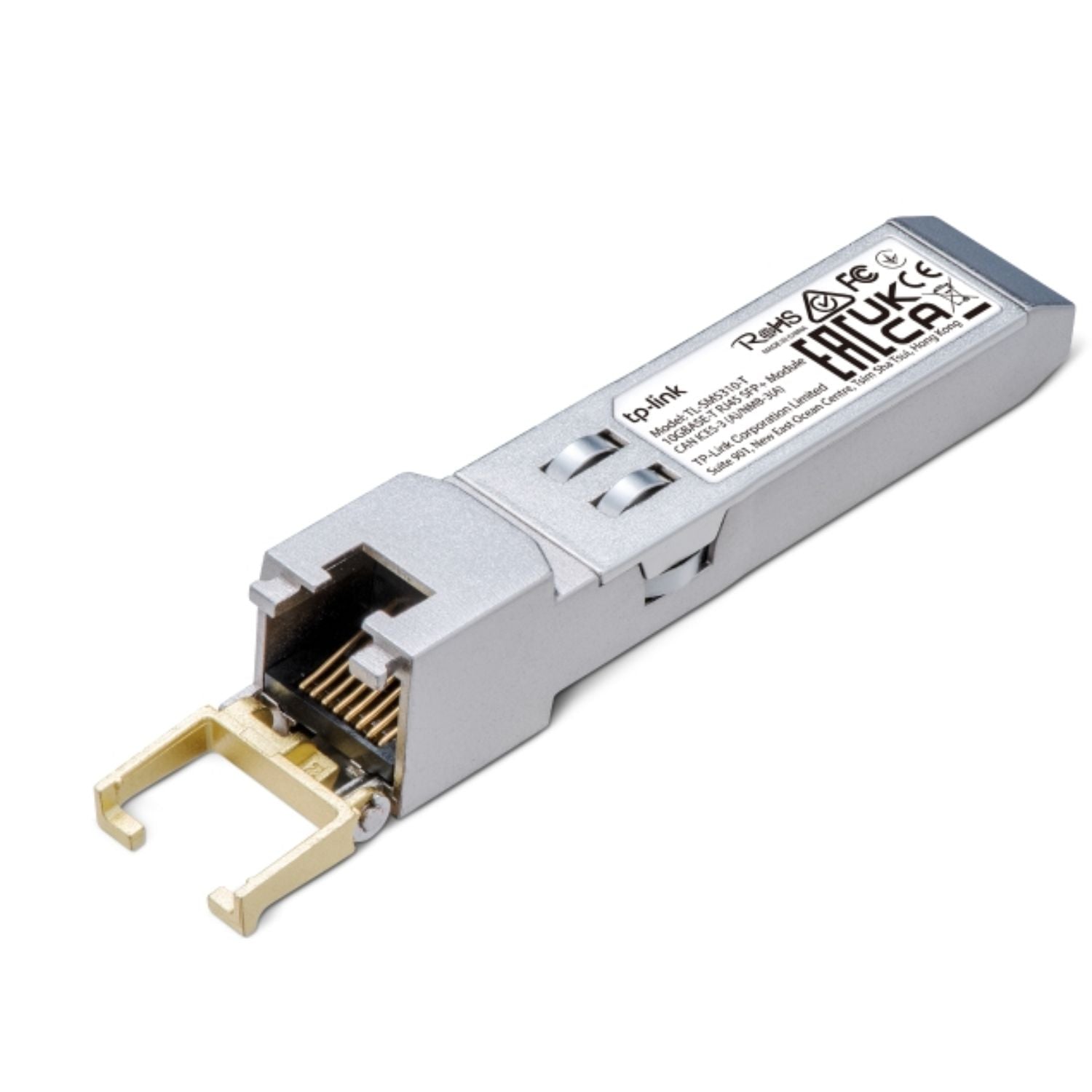

TP-Link TL-SM5310-T 10G BASE-T RJ45 SFP Module
Support 10GBASE-T, 5GBASE-T, 2.5GBASE-T, 1000BASE-T, and 100BASE-TX
Transmit data up to 30m at 10 Gbps (UTP cat.6a or above)
Support DDM (Temperature and Voltage)
Hot-Pluggable SFP Footprint Features
Support TX Disable function
Commercial Product Operating Temperature Range: 0-70 degreeC
Fully Metallic Enclosure for Low EMI
PACKAGE CONTENTS
Package Contents 10G BASE-T RJ45 SFP Module TL-SM5310-T
Installation Guide
HARDWARE FEATURES
Hot Swappable Yes
TRANSCEIVER
Standards and Protocols IEEE Std 802.3, 802.3ab, 802.3bz, 82.3an
Power Supply 3.3V
Max. Cable Length 100BASE-TX: UTP cat .5 or above (max. 100m)
1000BASE-T 2.5GBASE-T 5GBASE-T: UTP cat.5e or above (max. 100m)
10GBASE-T: UTP cat.6a or above (max. 30m)
Data Rate 10.3 Gbps
Port Type 1 10G RJ45 Port
Safety Emission FCC, CE, RoHS
Environment Operating Temperature: 070 (32158 )
Storage Temperature: -4085 (-40185 )
