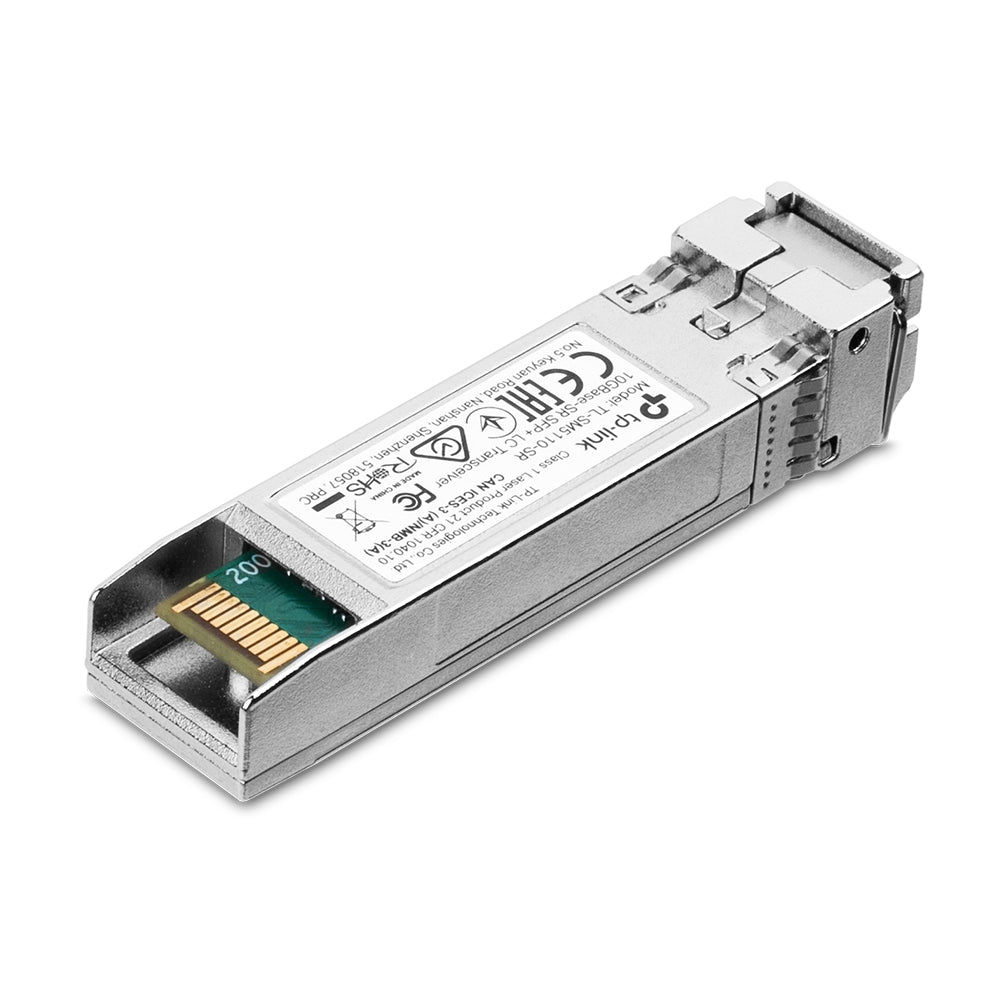

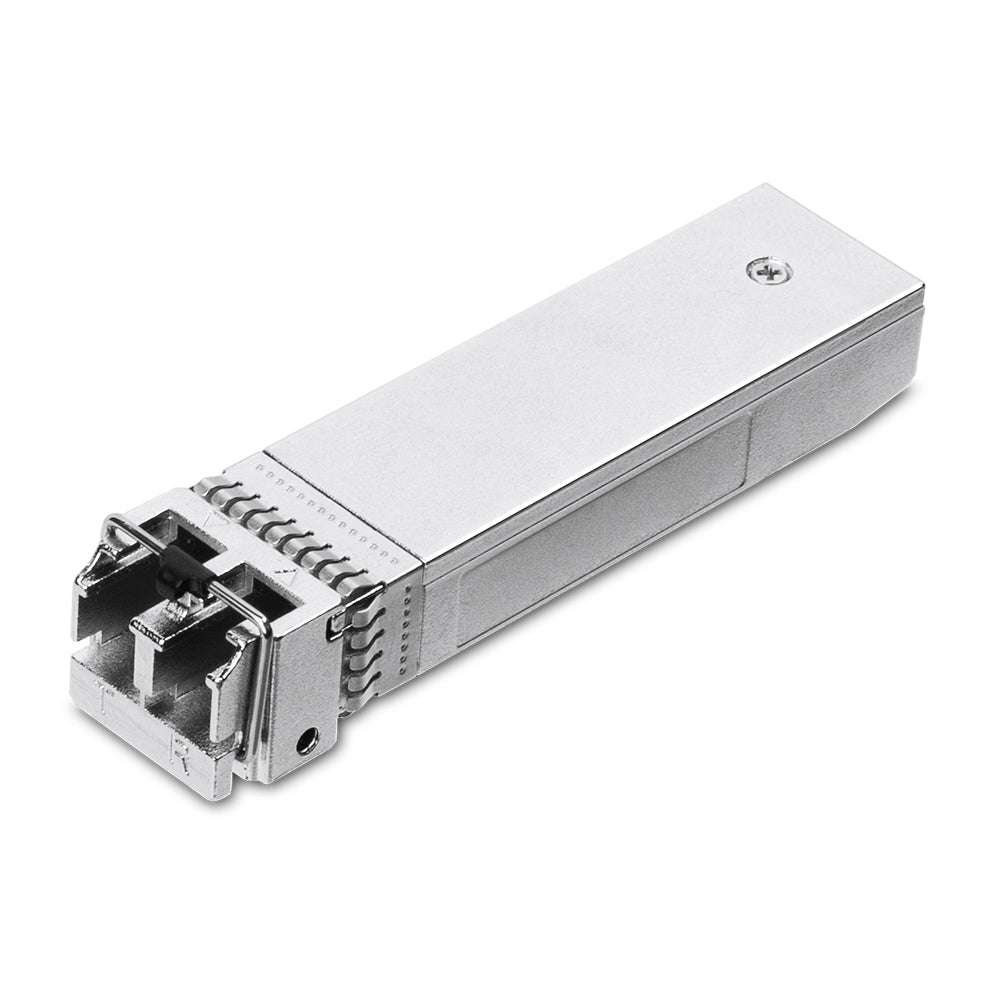

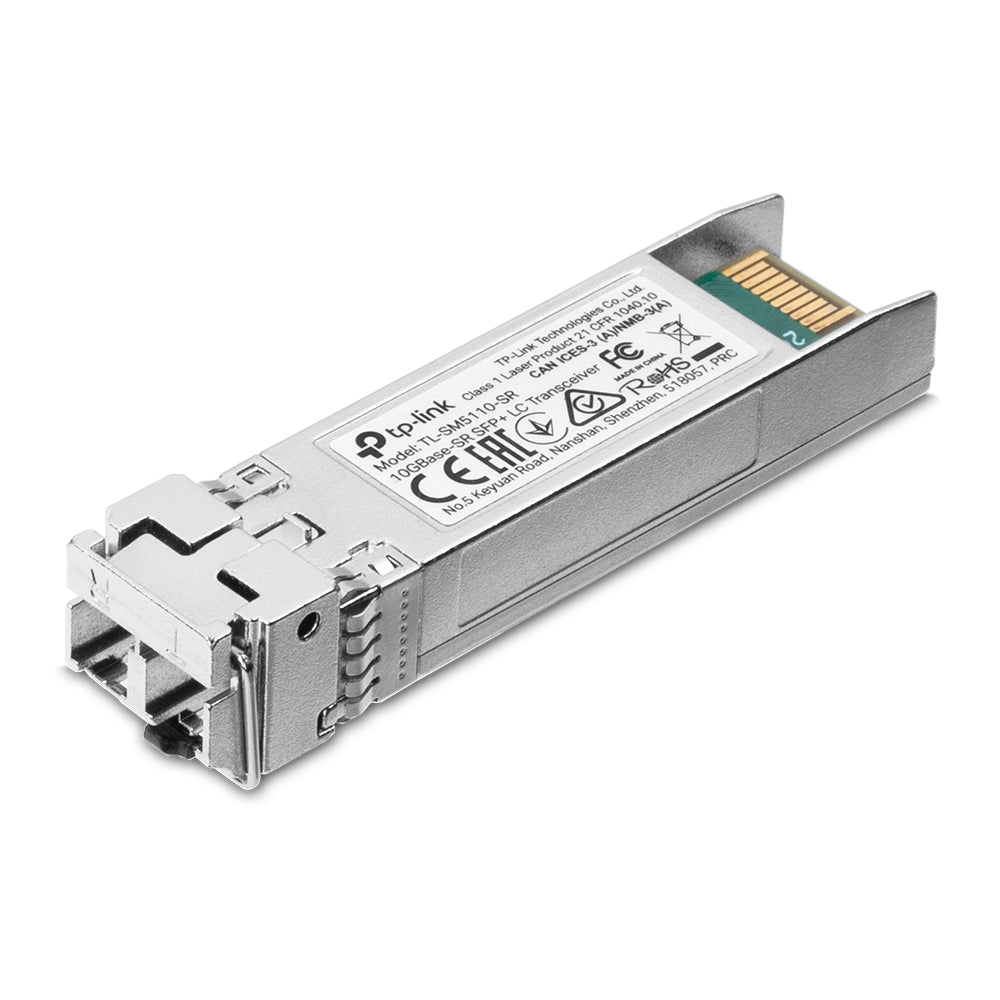

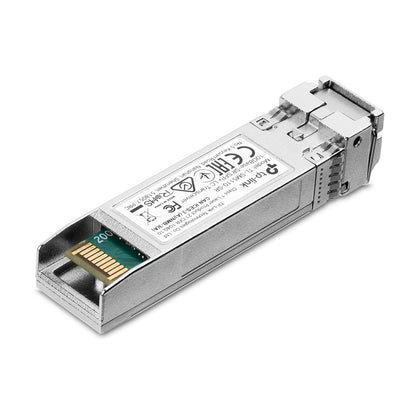

TP-Link TL-SM5110-SR 10GBase-LR 10GBase-SR SFP LC Transceiver Multi Mode Hot-Pluggable Supports Digital Diagnostic Monitoring SFP MSA Compatible
Multi-mode SFP LC Transceiver
Hot-Pluggable with maximum flexibility
Supports Digital Diagnostic Monitoring (DDM)
Compatible with 10G Small Form Pluggable Multi-Source Agreement (SFP MSA)
Compatible with switches with 10G SFP ports, like JetStream TL-SG3428X, TL-SG3428XMP, and more.
What This Product Does
The TL-SM5110-SR is designed to extend transfer distances based on 10Gbps Ethernet connectivity. It is a 10GBASE-SR high performance 850nm multi-mode SFP transceiver. It supports full duplex, 10G Ethernet connections up to 300m or 33m with 50 125µm or 62.5 125µm fiber cables respectively.
HARDWARE FEATURES
DDM Yes
SFP-MSA Yes
Hot Swappable Yes
TRANSCEIVER
Standards and Protocols IEEE 802.3ae, TCP IP, SFF-8472
Wave Length 850nm
Power Supply 3.3V
Fiber Type 50 125um or 62.5 125um Multi-mode
Max. Cable Length 300m (OM3)
Data Rate 10Gbps
Port Type LC UPC
Safety Emission FCC, CE
Environment Operating Temperature: 070 (32158 )
Storage Temperature: -4080 (-40176 )
Operating Humidity: 1090pct RH non-condensing
Storage Humidity: 590pct RH non-condensing
