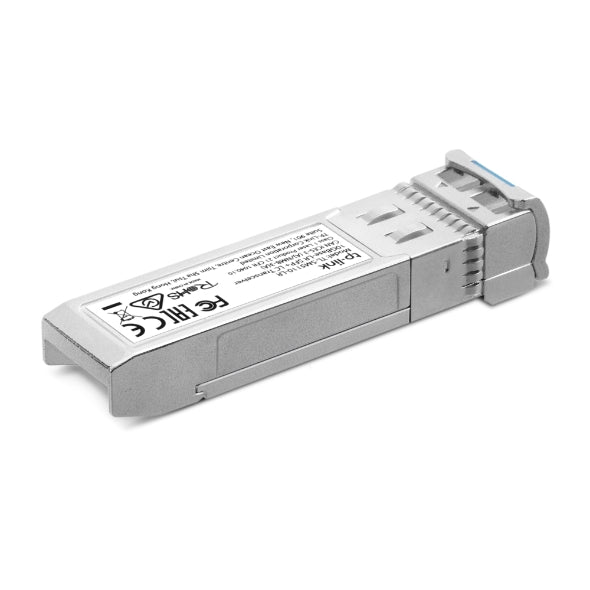

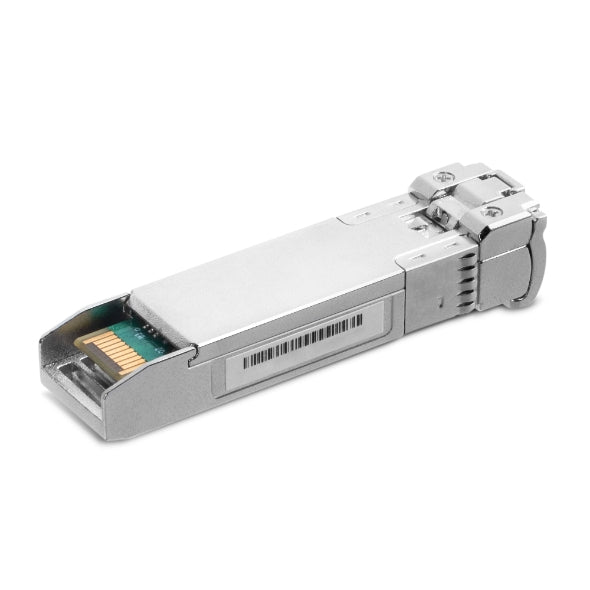

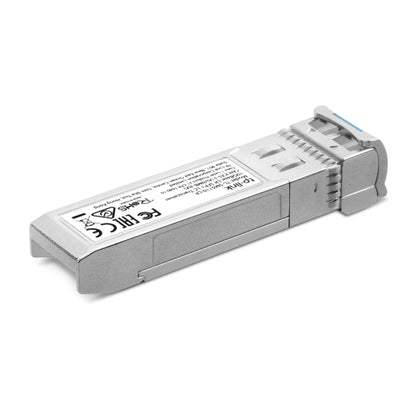

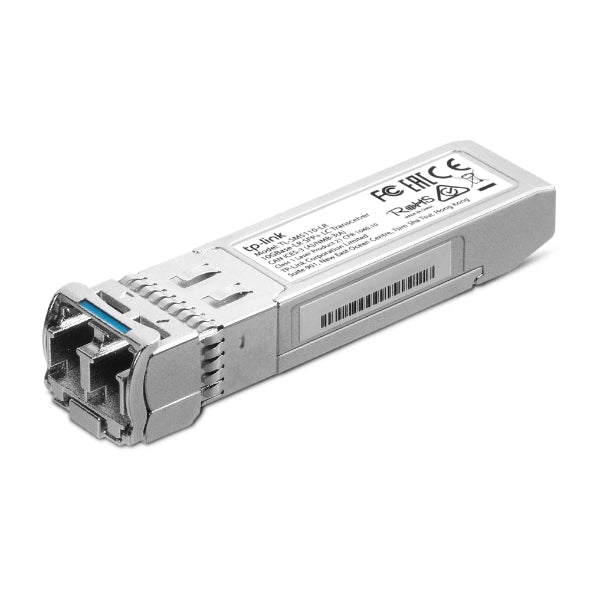

TP-Link TL-SM5110-LR 10GBase-LR SFP LC Transceiver Hot-Pluggable, Supports Digital Diagnostic Monitoring, SFP MSA Compatible, 10KM
Single-mode SFP LC Transceiver
Hot-Pluggable with maximum flexibility
Supports Digital Diagnostic Monitoring (DDM)
Compatible with 10G Small Form Pluggable Multi-Source Agreement (SFP MSA)
Compatible with switches with 10G SFP ports, like JetStream TL-SG3428X, TL-SG3428XMP, and more.
HARDWARE FEATURES
DDM Yes
SFP-MSA Yes
Hot Swappable Yes
TRANSCEIVER
Standards and Protocols IEEE 802.3ae, TCP IP
Wave Length 1310 nm
Power Supply 3.3V
Fiber Type 9 125um Single-Mode
Max. Cable Length 10 km
Data Rate 10 Gbps
Port Type LC Duplex
Safety Emission FCC, CE
Environment Operating Temperature: 070 degreeC (32158 degreeF)
Storage Temperature: -4085 degreeC ( -40185 degreeF)
Operating Humidity: 1090pct RH, Non-Condensing
Storage Humidity: 590pct RH, Non-Condensing
Product Width (W) mm 122.5
Product Depth (D) mm 81.5
Product Height (H) mm 38.5
Product Weight Kg 0.06
