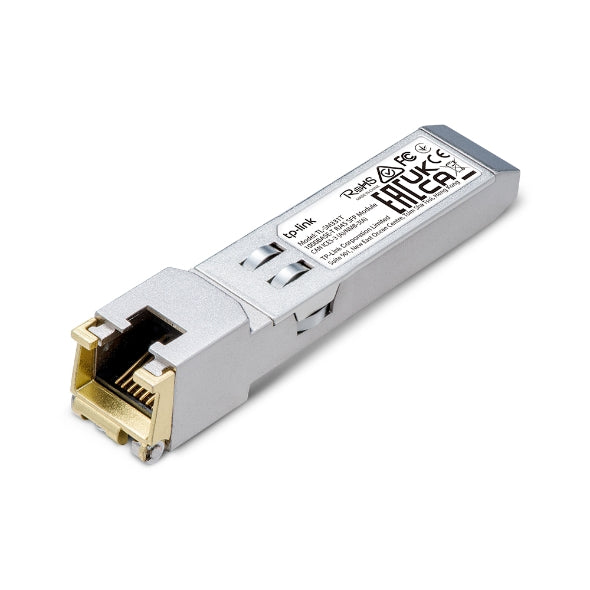

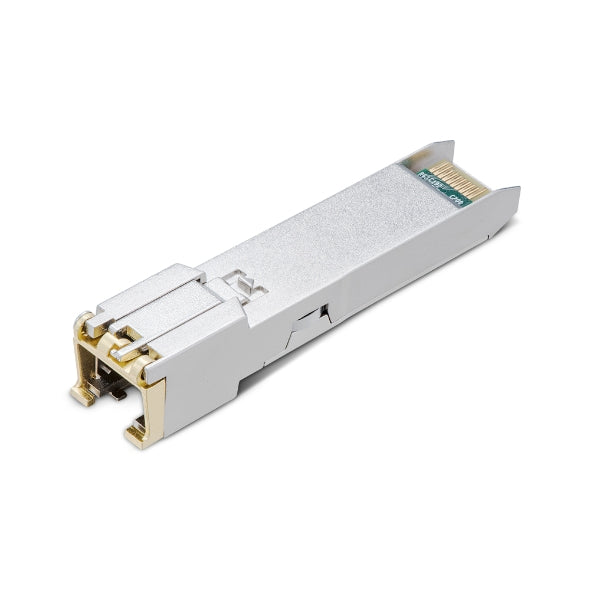

TP-Link TL-SM331T 1000BASE-T RJ45 SFP Module
Support 1000BASE-T Operation in Host Systems
Support TX Disable function
For 100m Reach Over UTP Cat 5e or above Cable
Hot-Pluggable SFP Footprint Features
Commercial Product Operating Temperature Range: 0-70 degreeC
Compliant with IEEE Std 802.3-2002
Fully Metallic Enclosure for Low EMI
Low Power Dissipation (0.5 W Typical, 0.8 W Max)
PACKAGE CONTENTS
Package Contents 1000BASE-T RJ45 SFP Module TL-SM331T
Installation Guide
HARDWARE FEATURES
Hot Swappable Yes
TRANSCEIVER
Standards and Protocols IEEE 802.3-2002
Power Supply 3.3V
Max. Cable Length 100m (Cat 5e or above)
Data Rate 1.25 Gbps
Port Type 1 1000 Mbps RJ45 Port
Safety Emission FCC, CE
Environment Operating Temperature: 070 (32158 )
Storage Temperature: -4085 (-40185 )
