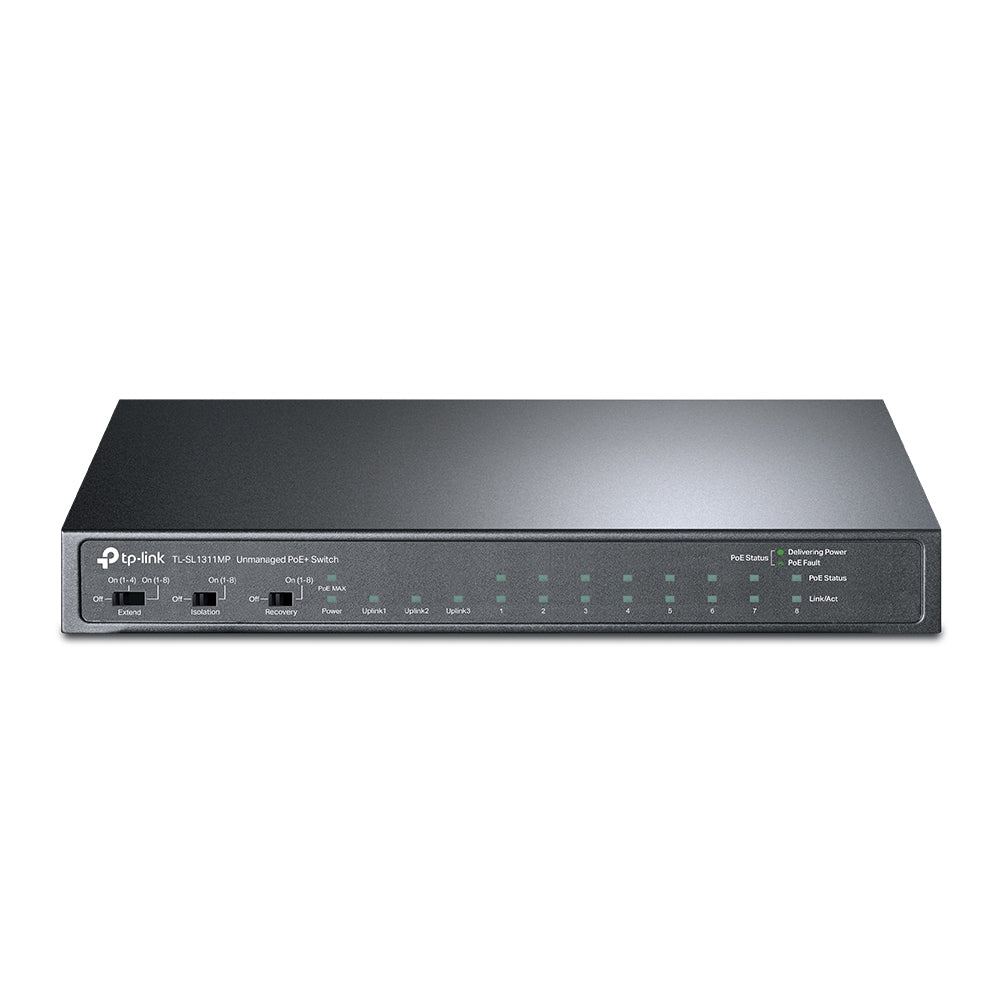

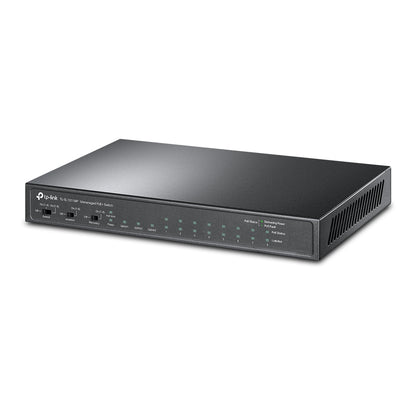

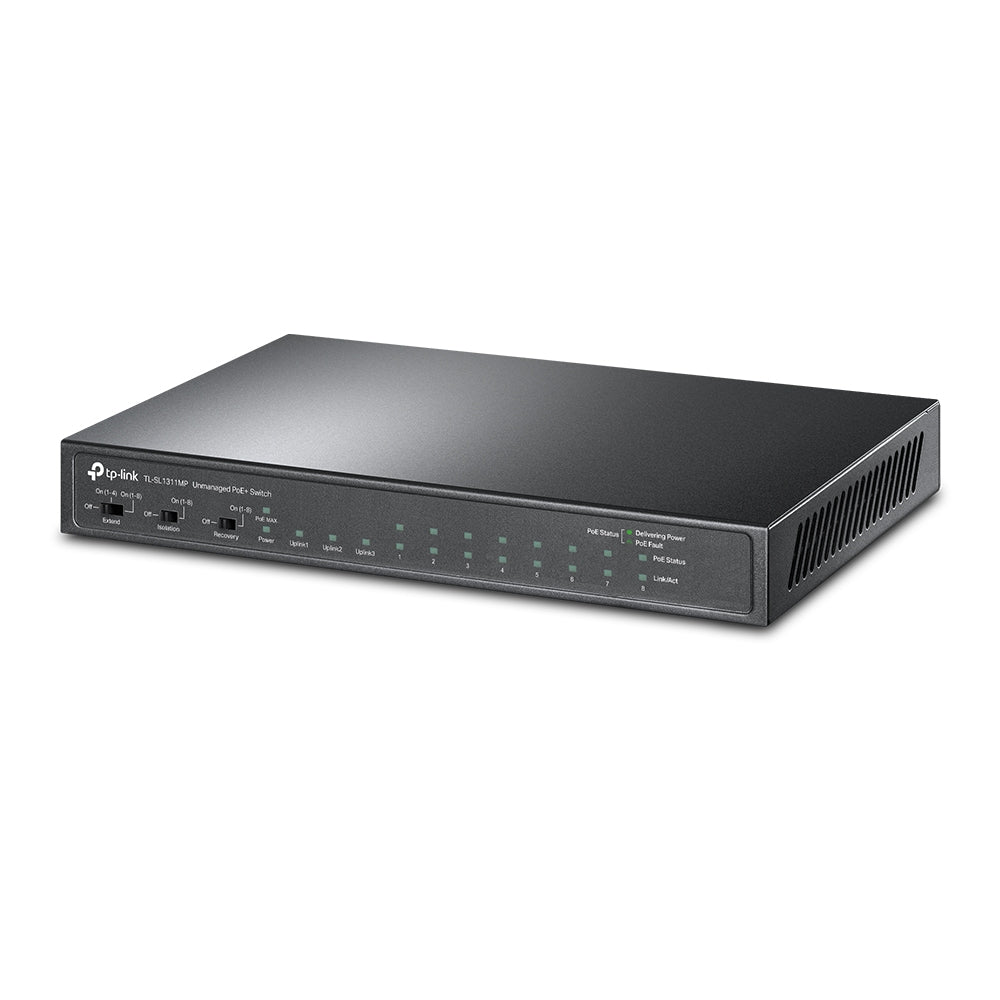

TP-Link TL-SL1311MP 8-Port 10 100Mbps 3-Port Gigabit Desktop Switch with 8-Port PoE

8— 10 100 Mbps RJ45 Ports, 2— Gigabit RJ45 Ports, 1— Gigabit SFP Port

8— PoE ports transfer data and power on individual cables

Works with IEEE 802.3af at compliant PDs

Supports PoE Power up to 30 W for each PoE port

Supports PoE Power up to 124 W for 8 PoE ports

Up to 250 m data and power transmitting range under Extend Mode

Isolation Mode allows one-click client traffic separation for higher security and performance

PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices

Fanless Design reduces power consumption and works silently in its location

Plug and play with no configuration required

HARDWARE FEATURES

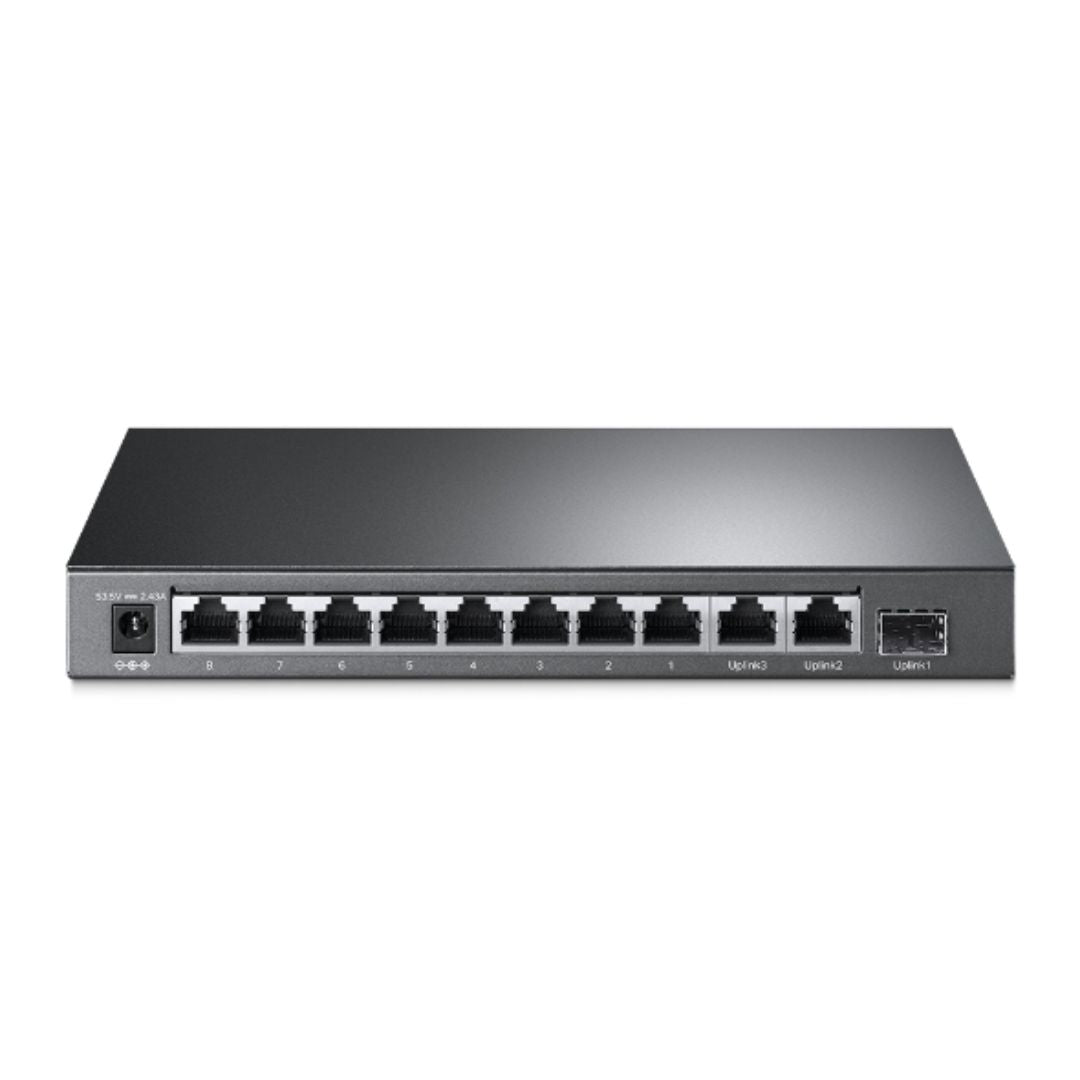

Interface 8— 10 100 Mbps 802.3af at PoE Ports, 2— Gigabit RJ45 Ports, 1— Gigabit SFP Port

AUTO Negotiation

AUTO MDI MDIX

Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

EIA TIA-568 100Ω STP (maximum 100m)

100BASE-TX: UTP category 5, 5e cable (maximum 100m)

EIA TIA-568 100Ω STP (maximum 100m)

Fan Quantity Fanless

Physical Security Lock Yes

External Power Supply External Power Adapter (Output: 53.5VDC 2.43A)

Packet Forwarding Rate 5.6544 Mpps

PoE Ports (RJ45) Standard: 802.3 af at compliant

PoE Ports: Ports 1“8

Power Supply: 124 W

Mac Address Table 2K

Jumbo Frame 16 KB

Switching Capacity 7.6 Gbps

Dimensions ( W x D x H ) 209 — 126 — 26 mm

Max Power Consumption 5.95 W (220 50 Hz. no PD connected)

140.92 W (220 50 Hz. with 124 W PD connected)

Max Heat Dissipation 20.29 BTU h (no PD connected)

480.54 BTU h (220 50 Hz. with 124 W PD connected)

SOFTWARE FEATURES

Transmission Method Store-And-Forward

Advanced Functions Compatible With IEEE 802.3af at Compliant PDs

Extend Mode Button (Ports 1“4 and Ports 1“8, Up to 250 m PoE power supply and data transmission)

Isolation Mode
