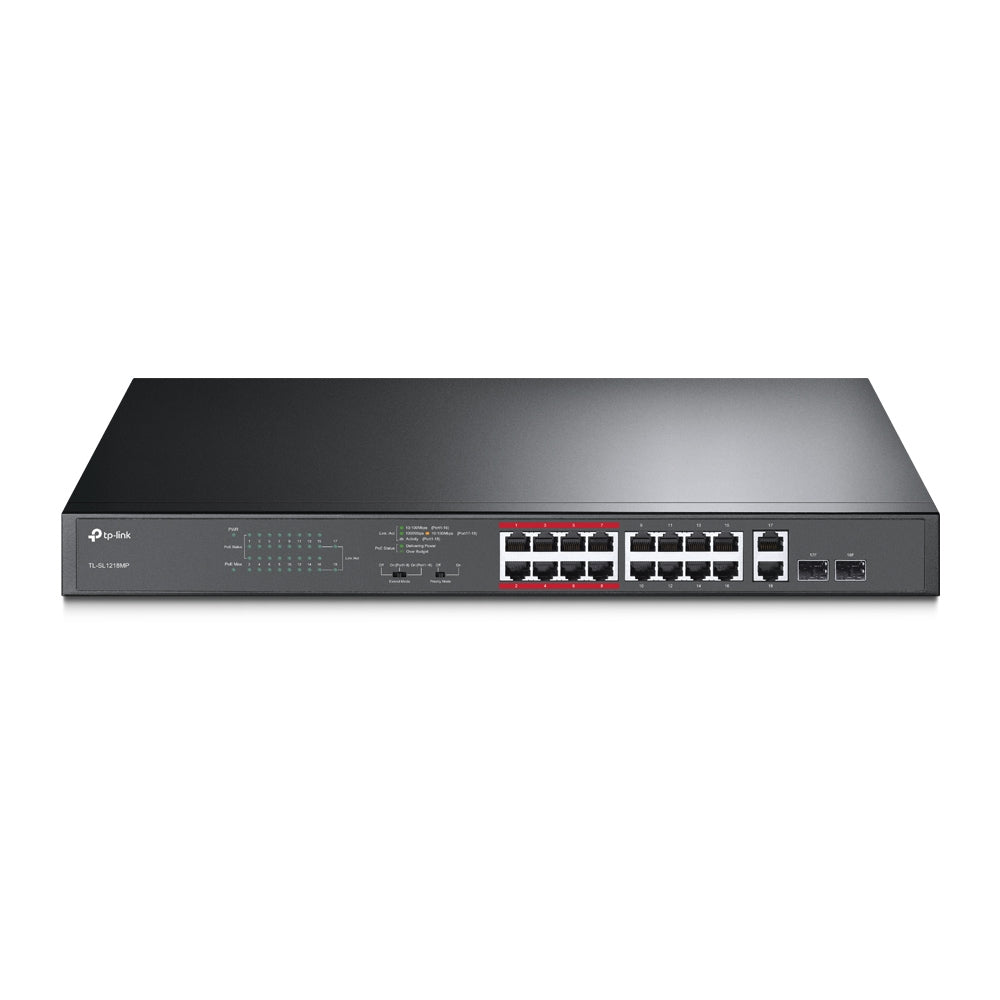

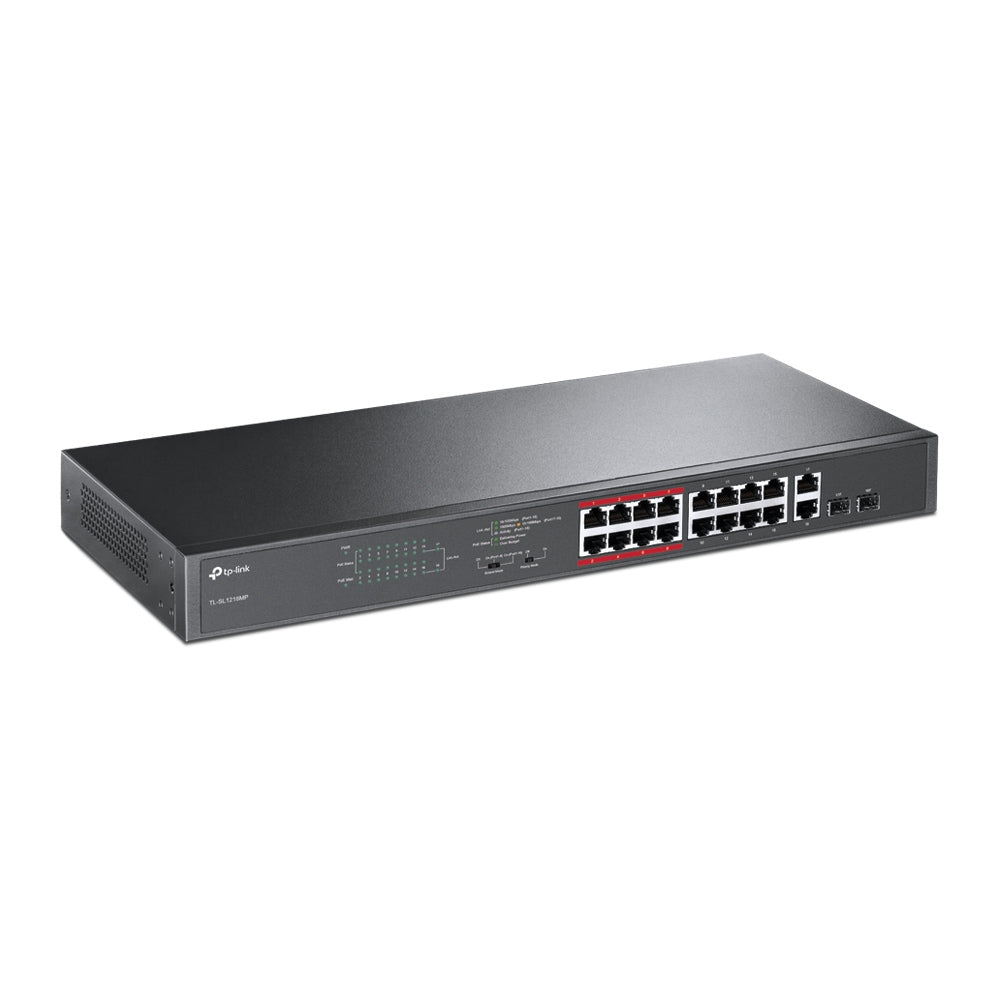

TP-Link TL-SL1218MP 16-Port 10 100Mbps 2-Port Gigabit Unmanaged PoE Switch

16 PoE 10 100Mbps RJ45 ports, 2 Gigabit RJ45 ports and 2 combo Gigabit SFP slots

Up to 250m data and power transmission under extend mode specially designed for surveillance system

Priority mode for port1-8 to guarantees the quality of sensitive applications like video monitor

High PoE power budget with up to 30W for each PoE port and 194W for all PoE ports

Easy to use, with no configuration and installation needed

HARDWARE FEATURES

Interface 16 PoE 10 100Mbps RJ45 Ports

2 10 100 1000Mbps RJ45 Ports

2 Combo Gigabit SFP Slots

Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

EIA TIA-568 100Ω STP (maximum 100m)

100BASE-TX: UTP category 5, 5e cable (maximum 100m)

EIA TIA-568 100Ω STP (maximum 100m)

1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)

EIA TIA-568 100Ω STP (maximum 100m)

1000BASE-X MMF, SMF

Fan Quantity 2 Fans

Physical Security Lock Yes

Power Supply 100-240V AC, 50 60 Hz

Backup Bandwidth 7.2 Gbps

PoE Ports(RJ45) Standard: 802.3at 802.3af compliant

PoE Ports: Port1- Port16

PoE Power Budget: 192W

Mac Address Table 8K

Dimensions ( W x D x H ) 17.3 — 7.1 — 1.7 in.

(440 — 180 — 44 mm)

Max Power Consumption 18.7 W (no PD connected)

217.2 W (with 192W PD connected)

Max Heat Dissipation 63.9 BTU h (no PD connected)

741.2 BTU h (with 192W PD connected)

SOFTWARE FEATURES

Advanced Features Compatible with IEEE 802.3at af compliant devices

Port Priority Mode

Extend Mode (Up to 250m PoE power supply and data transmission)

Mac Address Auto-Learning And Auto-Aging

IEEE802.3x Flow Control

Transmission Method Store-And-Forward
