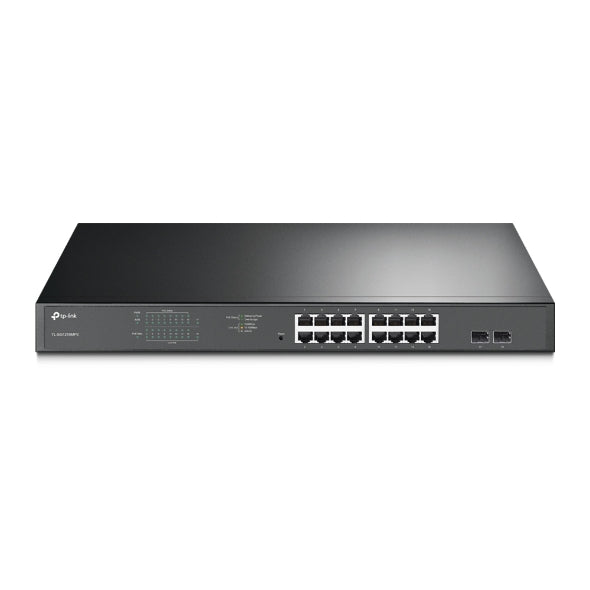

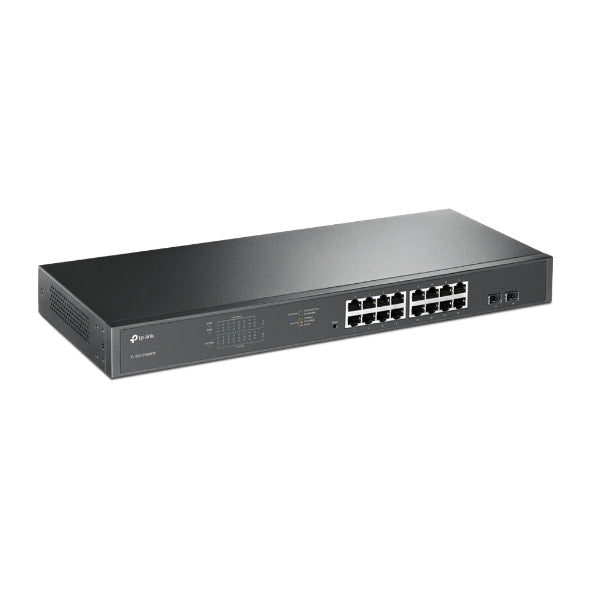

16 10 100 1000Mbps RJ45 Ports PoE PoE Switch

PoE power budget is up to 192W, making it ideal for small to medium business surveillance system

Port Priority is able to guarantee the quality of sensitive application like video monitor

Intelligent power management can protect the switch from overload

QoS is for smooth internet-surfing experience and IGMP Snooping is capable of optimizing traffic for IPTV.

HARDWARE FEATURES

Standards and Protocols IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x

IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p

Interface 16 PoE 10 100 1000Mbps RJ45 Ports

2 Fiber Ports

Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

EIA TIA-568 100Ω STP (maximum 100m)

100BASE-TX: UTP category 5, 5e cable (maximum 100m)

EIA TIA-568 100Ω STP (maximum 100m)

1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)

EIA TIA-568 100Ω STP (maximum 100m)

1000BASE-X MMF, SMF

Fan Quantity 2 Fans

Physical Security Lock Yes

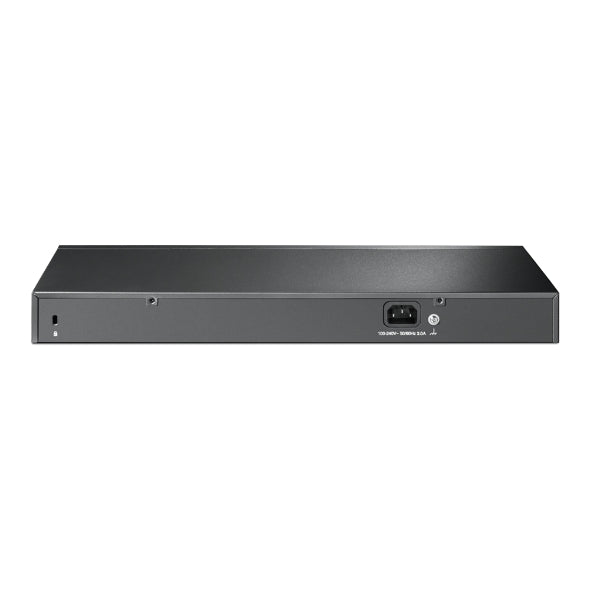

Power Supply 100-240V AC, 50 60 Hz

Backup Bandwidth 7.2 Gbps

PoE Ports(RJ45) Standard: 802.3at 802.3af compliant

PoE Ports: Port1- Port16

PoE Power Budget: 192W

Mac Address Table 8K

Dimensions ( W x D x H ) 17.3 — 7.1 — 1.7 in. (440 — 180 — 44 mm)

Mounting Rack Mountable

Max Power Consumption 18.73 W (220 50Hz. no PD connected)

217.22 W (220 50Hz. with 192W PD connected)

Max Heat Dissipation 63.89 BTU h (no PD connected)

741.15 BTU h (with 192W PD connected)

PERFORMANCE

Switching Capacity 36 Gbps

Packet Forwarding Rate 23.8 Mbps

MAC Address Table 8K

Packet Buffer Memory 4.1 Mbit

Jumbo Frame 9 KB
