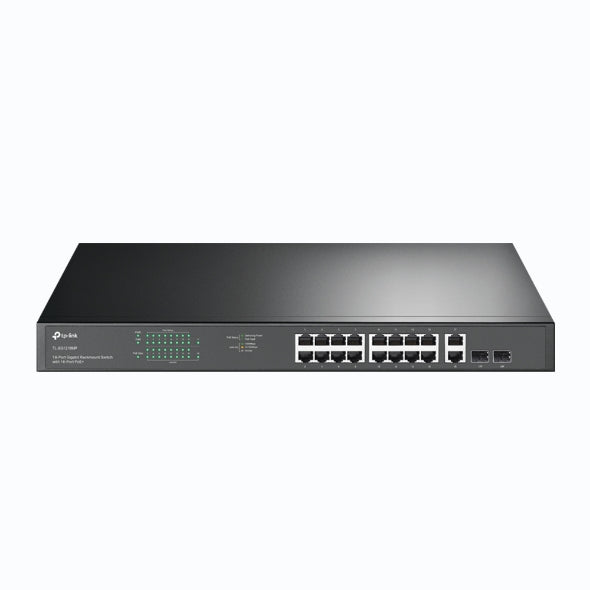

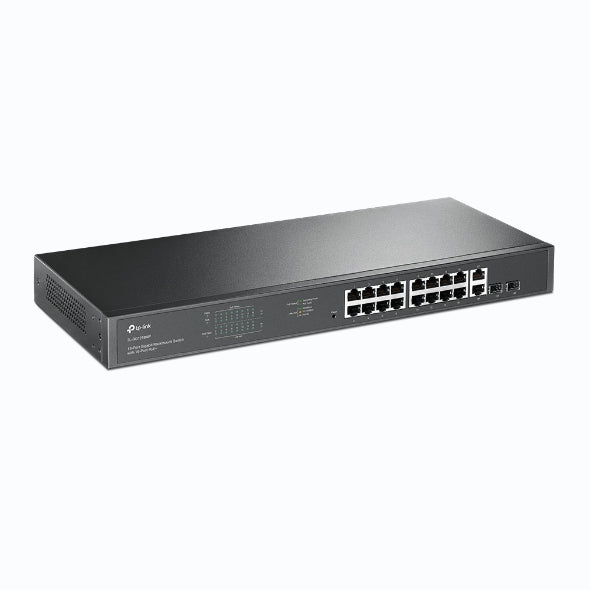

TP-Link TL-SG1218MP 18-Port Gigabit Rackmount Switch with 16 PoE

16— gigabit PoE RJ45 ports, 2— gigabit non-PoE RJ45 ports, and 2— combo gigabit SFP slots

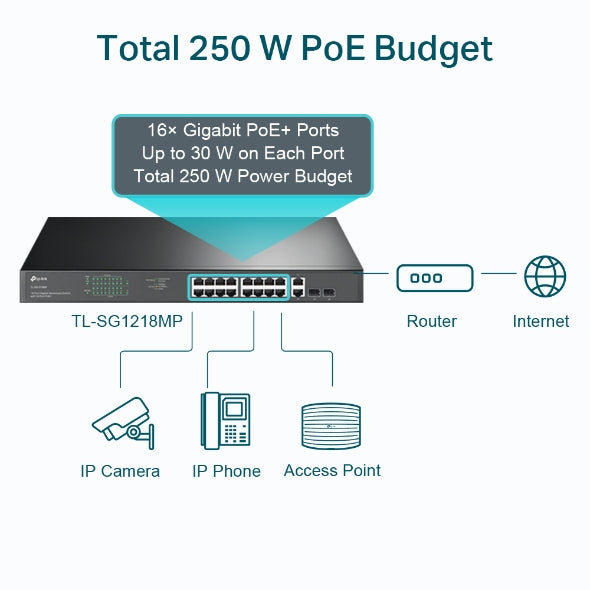

High PoE power budget with up to 30 W for each PoE port and 250 W for all PoE ports

Working with IEEE 802.3af at compliant PDs

Plug and play, with no configuration and installation needed

802.1p DSCP QoS enable smooth latency-sensitive traffic

Durable metal casing and professional heat dissipation design ensure a wide operating temperature range (0“50 „ƒ)

HARDWARE FEATURES

Standards and Protocols IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p

Interface 16— PoE gigabit RJ45 ports

2— gigabit non-PoE RJ45 ports

2— combo gigabit SFP slots

Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

EIA TIA-568 100Ω STP (maximum 100m)

100BASE-TX: UTP category 5, 5e cable (maximum 100m)

EIA TIA-568 100Ω STP (maximum 100m)

1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)

EIA TIA-568 100Ω STP (maximum 100m)

1000BASE-X MMF, SMF

Fan Quantity 2

Physical Security Lock Yes

Power Supply 100“240 VAC, 50 60 Hz

PoE Ports(RJ45) Standard: 802.3at 802.3af compliant

PoE Ports: Ports 1“16

PoE Power Budget: 250 W

Dimensions ( W x D x H ) 17.3 — 7.1 — 1.73 in (440 — 180 — 44 mm)

Mounting Rack Mountable

Max Power Consumption 21.4 W (220 50 Hz. no PD connected)

286.64 W (220 50 Hz. with 250 W PD connected)

Max Heat Dissipation 72.97 BTU h (no PD connected)

977.44 BTU h (with 250 W PD connected)

PERFORMANCE

Switching Capacity 36 Gbps

Packet Forwarding Rate 26.78 Mbps

MAC Address Table 8K

Packet Buffer Memory 4.1 Mbit

Advanced Functions Compatible With IEEE 802.3af at Compliant PDs

802.1p DHCP QoS

Mac Address Auto-Learning And Auto-Aging

IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode

Jumbo Frame 10 KB
