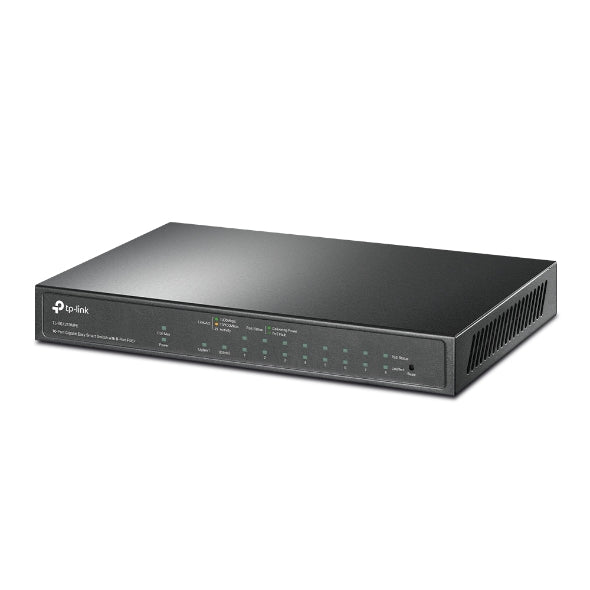

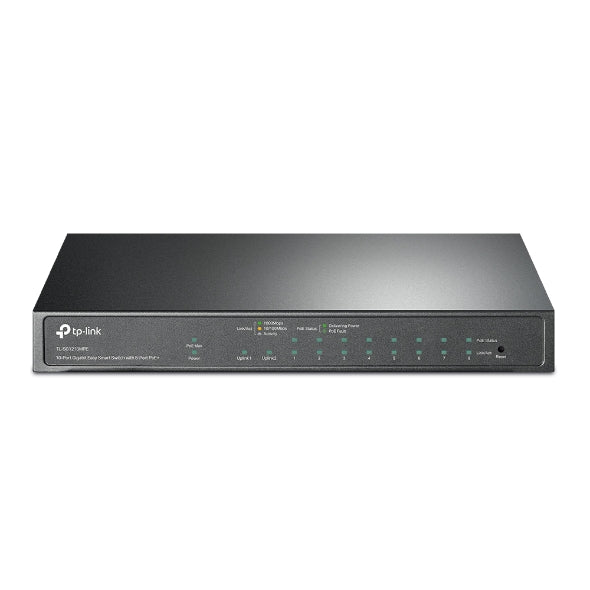

TP-Link TL-SG1210MPE 10-Port Gigabit Easy Smart Switch with 8-Port PoE

9— gigabit RJ45 ports and 1— combo gigabit SFP RJ45 port

Equipped with eight 802.3af at PoE ports with up to 30 W for each port, the switch can transfer data and power via one single cable

Supports PoE power up to 123 W for all PoE ports

Provides network monitoring, traffic prioritisation, VLAN features, and PoE Auto Recovery

Simple network set-up on top of plug-and-play connectivity

Web-based user interface and Easy Smart Configuration Utility simplify configuration

Fanless design lowers energy consumption and eliminates operating noise

HARDWARE FEATURES

Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af,

IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at, IEEE 802.3z

Interface 9— 10 100 1000 Mbps RJ45 Ports

1— 1000 Mbps Combo SFP RJ45 Port

AUTO Negotiation AUTO MDI MDIX

Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

EIA TIA-568 100Ω STP (maximum 100m)

100BASE-TX: UTP category 5, 5e cable (maximum 100m)

EIA TIA-568 100Ω STP (maximum 100m)

1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)

EIA TIA-568 100Ω STP (maximum 100m)

Fan Quantity Fanless

Power Supply External Power Adapter (Output: 53.5 VDC 2.43 A)

PoE Ports (RJ45) Standard: 802.3 af at compliant

PoE Ports: Port 1- Port 8

PoE Power Budget: 123 W

Dimensions ( W x D x H ) 8.2 — 4.9 — 1.0 in (209 — 126 — 26 mm)

Max Power Consumption 7.66 W (220V 50Hz with no PD connected)

141.54 W (220V 50Hz with 123 W PD connected)

Max Heat Dissipation 26.12 BTU h (220V 50Hz with no PD connected)

482.65 BTU h (220V 50Hz with 123 W PD connected)

PERFORMANCE

Switching Capacity 20 Gbps

Packet Forwarding Rate 14.88 Mpps

MAC Address Table 4 K

Jumbo Frame 16 KB

SOFTWARE FEATURES

Quality of Service Support Port-Based 802.1p DSCP priority

Support 4 priority queues

Rate Limit

Storm Control

L2 Features IGMP Snooping V1 V2 V3

Static Link Agg
