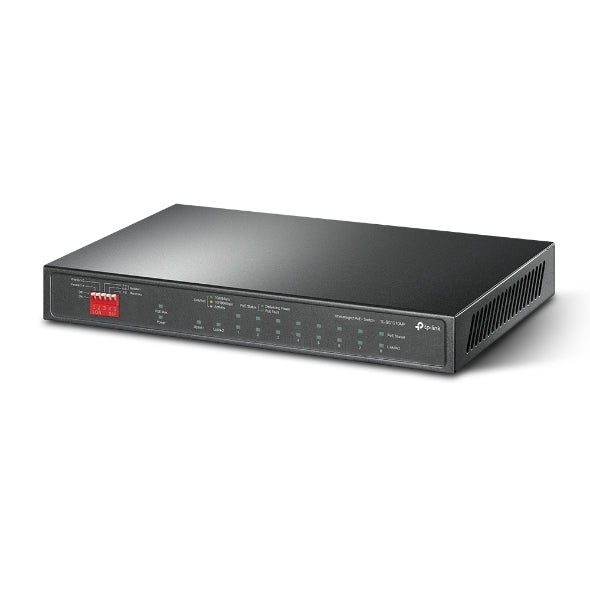

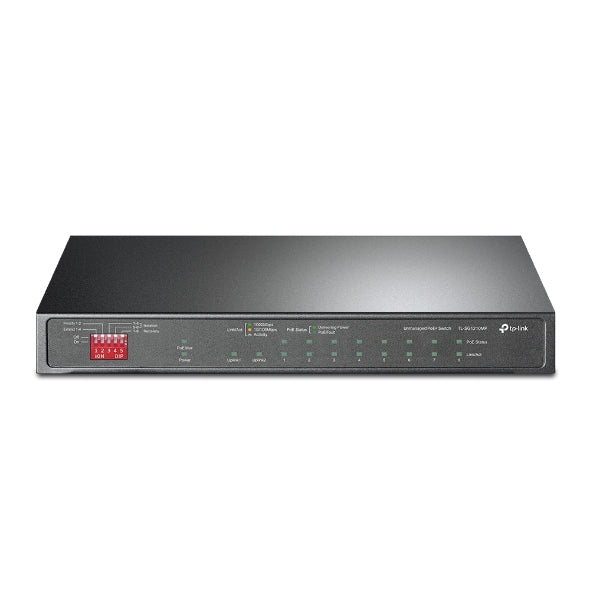

TP-Link TL-SG1210MP 10-Port Gigabit Desktop Switch with 8-Port PoE

9— gigabit RJ45 ports, and 1— gigabit combo SFP RJ45 Port

8— PoE ports transfer data and power via a single cable with a total power budget of 123 W

Compliance with IEEE 802.3af at PoE, the switch supports PoE Power up to 30 W for each PoE port

Up to 250 m data and power transmission range under Extend Mode

Priority Mode ensures high priority of ports 1“2 to guarantee the quality of the sensitive applications

Isolation Mode allows one-click client traffic separation for higher security and performance

Automatically reboots your dropped or unresponsive PoE-powered devices with PoE Auto Recovery.

Plug and play with no configuration required

Fanless design reduces power consumption and works silently in its location

HARDWARE FEATURES

Interface 9— 10 100 1000 Mbps RJ45 Ports

1— 1000 Mbps Combo SFP RJ45 Port

AUTO Negotiation

AUTO MDI MDIX

Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

EIA TIA-568 100Ω STP (maximum 100m)

100BASE-TX: UTP category 5, 5e cable (maximum 100m)

EIA TIA-568 100Ω STP (maximum 100m)

Fan Quantity Fanless

Physical Security Lock Yes

External Power Supply External Power Adapter (Output: 53.5VDC 2.43A)

Packet Forwarding Rate 14.88 Mpps

PoE Ports (RJ45) Standard: 802.3 af at compliant

PoE Ports: Ports 1“8

Power Supply: 123 W

Mac Address Table 4K

Jumbo Frame 16 KB

Switching Capacity 20 Gbps

Dimensions ( W x D x H ) 8.2 — 4.9 — 1.0 in (209 — 126 — 26 mm)

Max Power Consumption 7.93 W (220V 50Hz with no PD connected)

141.40 W (220V 50Hz with 123 W PD connected)

Max Heat Dissipation 27.04 BTU h (220V 50Hz with no PD connected)

482.17 BTU h (220V 50Hz with 123 W PD connected)

SOFTWARE FEATURES

Transmission Method Store-And-Forward

Advanced Functions Compatible With IEEE 802.3af at Compliant PDs

Extend Mode Button (Ports 1“4, Up to 250 m PoE power supply and data tra
