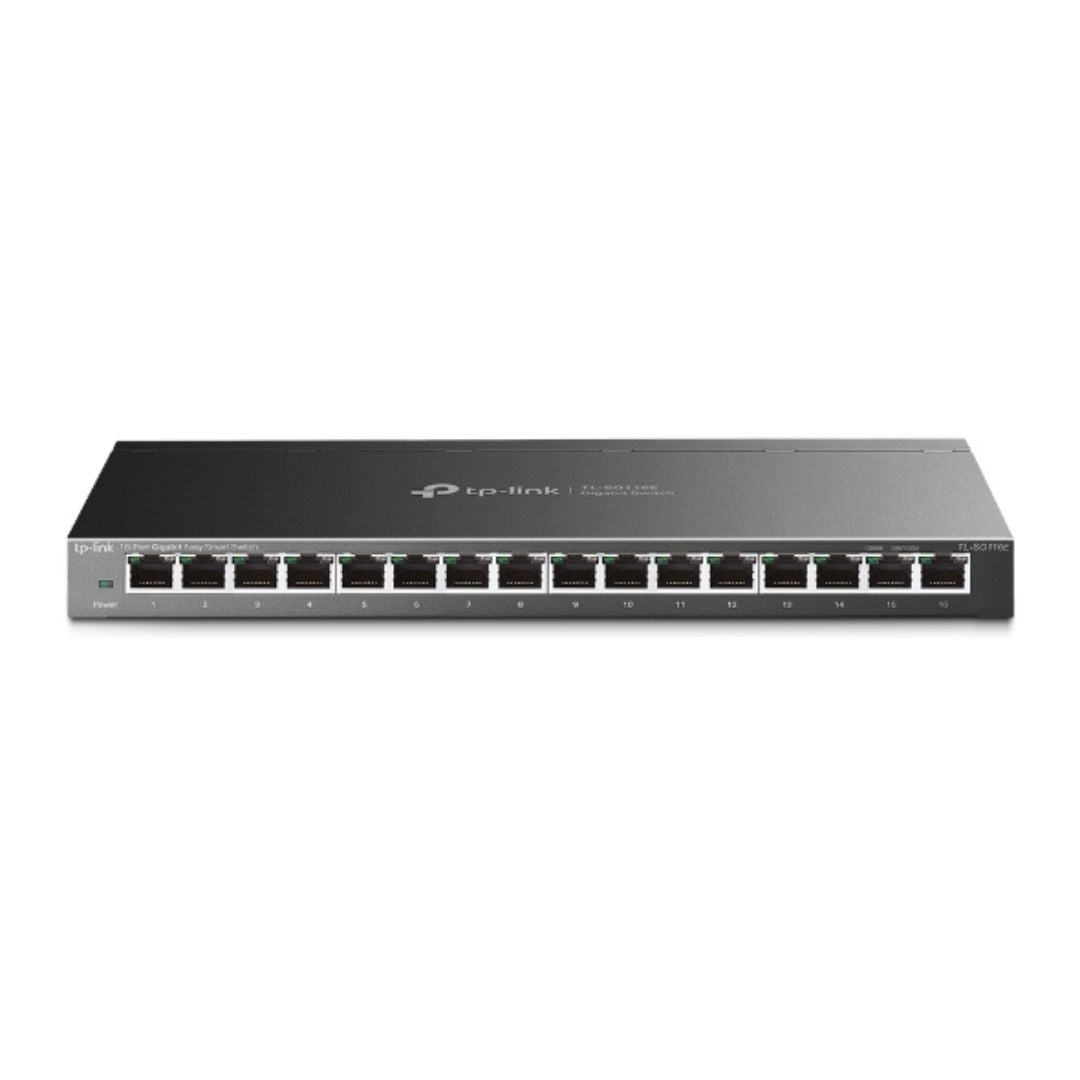

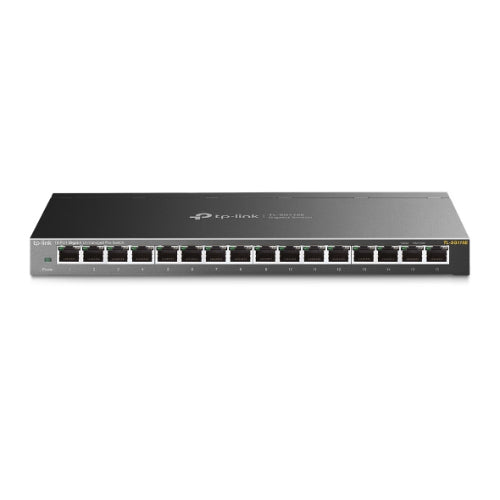

TP-Link TL-SG116E 16-Port Gigabit Unmanaged Pro Switch Desktop Wall Mounting L2 Features 32xVLAN 32Gbps Capacity 23.81Mpps 8K MAC 4.1Mb Buffer Fanless

16 10 100 1000Mbps RJ45 ports

Plug and play, with no configuration required

Durable metal casing of superior quality and professional appearance

Intelligent management via a web user interface and downloadable utility

Green technology reduces power consumption

HARDWARE FEATURES

Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p

Interface 16 10 100 1000Mbps RJ45 Ports

AUTO Negotiation AUTO MDI MDIX

Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

EIA TIA-568 100Ω STP (maximum 100m)

100BASE-TX: UTP category 5, 5e cable (maximum 100m)

EIA TIA-568 100Ω STP (maximum 100m)

1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)

EIA TIA-568 100Ω STP (maximum 100m)

Fan Quantity Fanless

Power Supply External Power Adapter(Output: 9VDC 0.6A)

Power Consumption Maximum: 9.27W (220V 50Hz)

Dimensions ( W x D x H ) 11.34.41.0 in. (286111.725.4 mm)

PERFORMANCE

Switching Capacity 32Gbps

Packet Forwarding Rate 23.81Mpps

MAC Address Table 8K

Packet Buffer Memory 4.1Mb

Jumbo Frame 9KB

SOFTWARE FEATURES

Quality of Service Support Port-based 802.1p DSCP priority

Support 4 priority queues

Rate Limit

Storm Control

L2 Features IGMP Snooping V1 V2 V3

Static Link Aggregation

Port Mirroring

Cable Diagnostics

Loop Prevention

VLAN Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)

MTU Port Tag VLAN

Transmission Method Store-And-Forward
