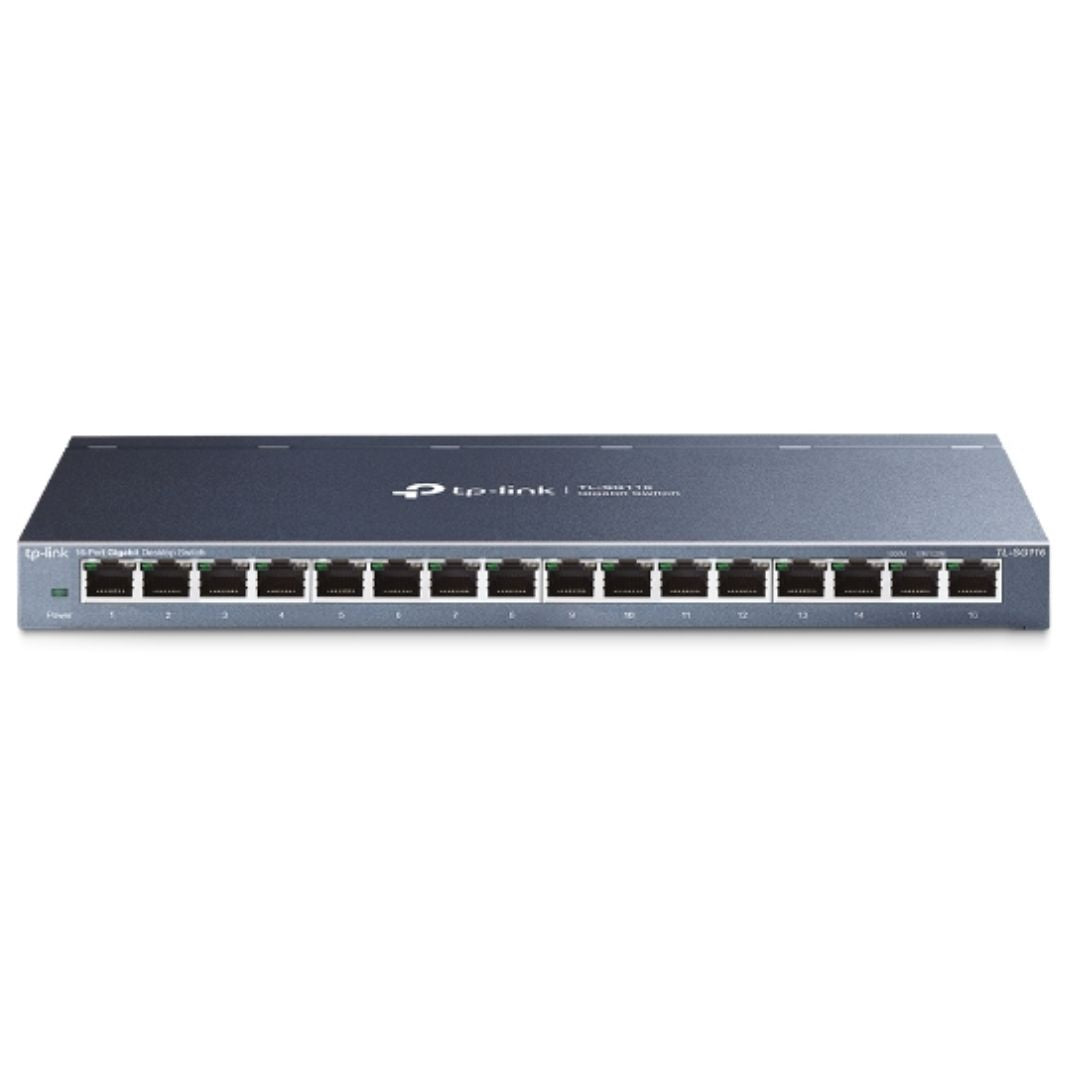

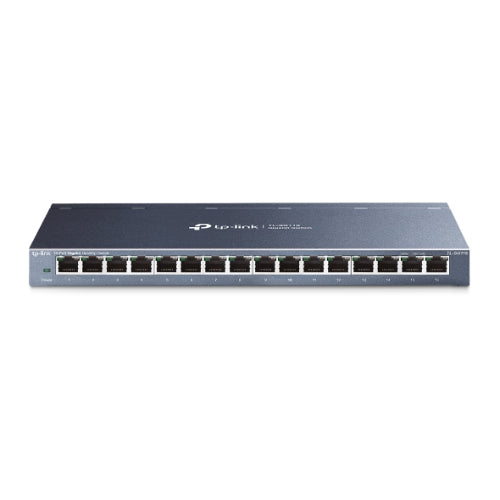

TP-Link TL-SG116 16-Port Unmanaged Gigabit Desktop Wall Mounting Switch 32Gbps Capacity 23.81Mpps 8K MAC 4.1Mb Buffer Fanless

16 10 100 1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI MDIX

Green Ethernet technology saves power consumption

IEEE 802.3x flow control provides reliable data transfer

Steel housing, desktop or wall-mounting design

Support 802.1p DSCP QoS and IGMP Snooping function

Plug and play, with no configuration needed

HARDWARE FEATURES

Standards and Protocols IEEE 802.3i 802.3u 802.3ab 802.3x 802.1p

Interface 16 10 100 1000Mbps Ports, Auto-Negotiation, Auto-MDI MDIX

Fan Quantity Fanless

Power Consumption Maximum: 10.0W

External Power Supply External Power Adapter (Output: 12VDC 1.0A)

LED Indicator System Power

Link Act indicators per port built into each RJ-45 port

Dimensions ( W x D x H ) 11.26 x 4.4 x 1.0 in. (286111.725.4 mm)

PERFORMANCE

Packet Forwarding Rate 23.8Mpps

MAC Address Table 8K

Packet Buffer Memory 4.1Mb

Jumbo Frame 10KB

SOFTWARE FEATURES

Advanced Features Green Technology

802.3X Flow Control

802.1p DSCP QoS

IGMP Snooping

Transfer Method Store and Forward

OTHERS

Certification CE, FCC ,RoHS

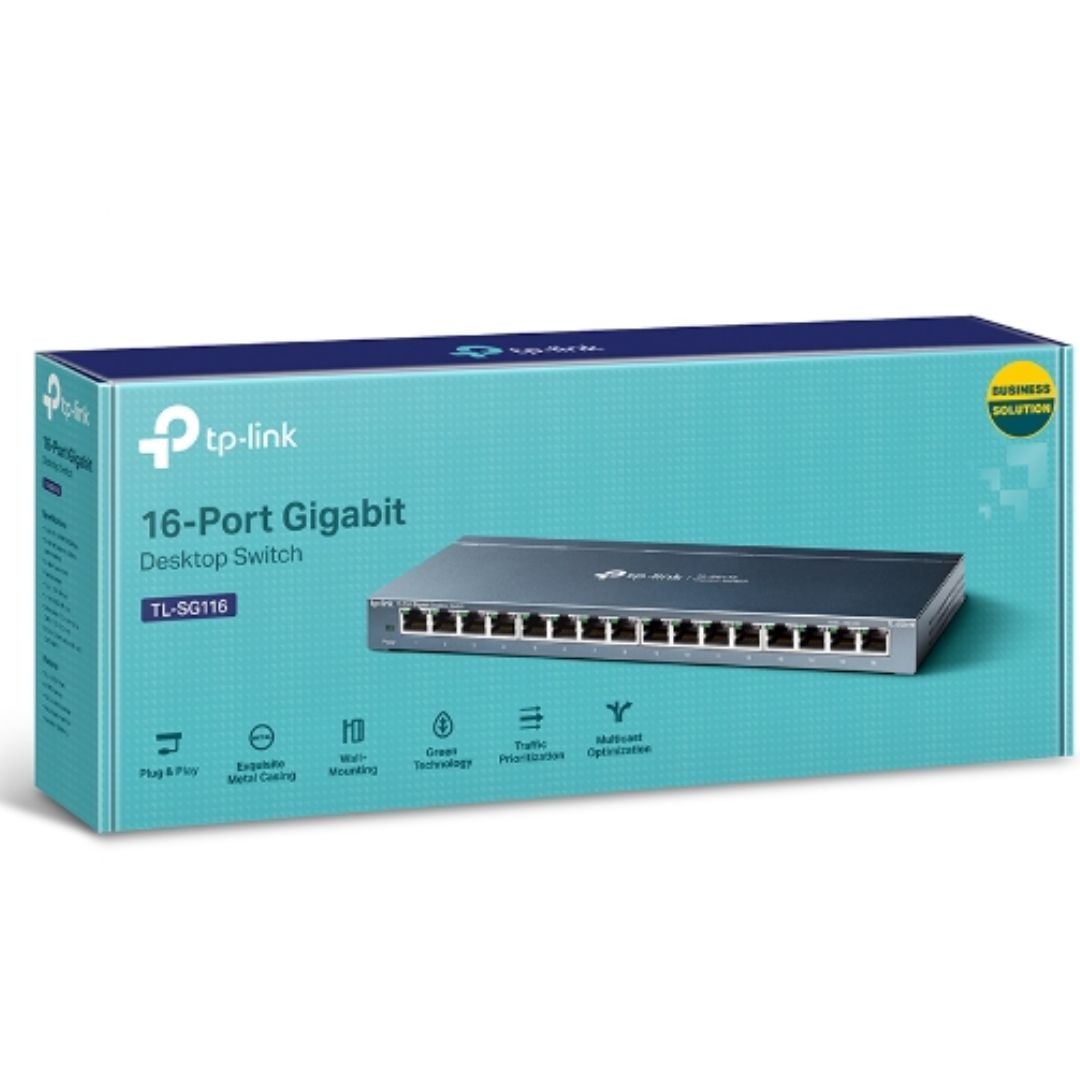

Package Contents 16-Port 10 100 1000Mbps Desktop Switch

Power Adapter

Installation Guide

Rubber Feet

Environment Operating Temperature: 0 degreeC~40 degreeC (32 degreeF~104 degreeF)

Storage Temperature: -40 degreeC~70 degreeC (-40 degreeF~158 degreeF)

Operating Humidity: 10pct ~ 90pct, non-condensing

Storage Humidity: 5pct~90pct non-condensing
