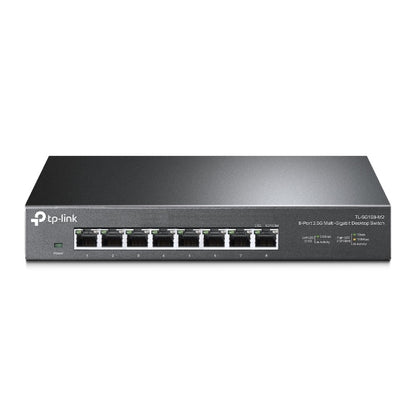

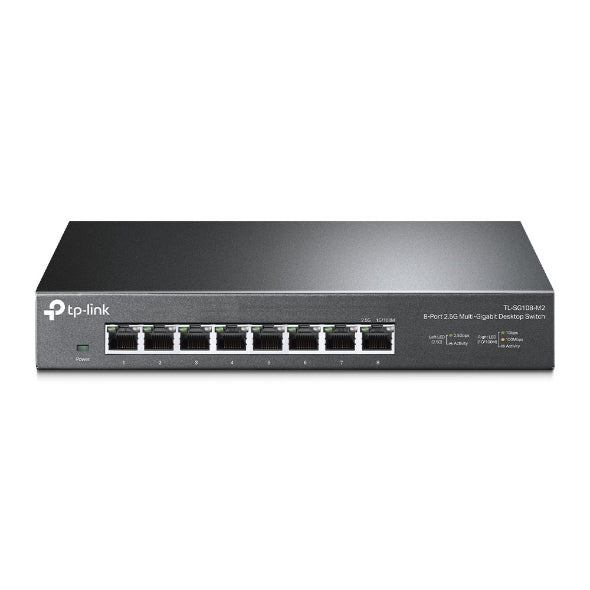

TP-Link TL-SG108-M2 8-Port 2.5G Desktop Switch

Eight 2.5 Gbps Ports. 8— 2.5-Gigabit ports unlock the highest performance of your Multi-Gig bandwidth and devices, and provide up to 40 Gbps of switching capacity.

Super-Fast Connections. Provides super-fast connections to 2.5G NAS, 2.5G Server, gaming computer, 2.5G WiFi 6 AP, 4K video, and more.

Ideal for Various Scenarios. Built for LAN parties, home entertainment, small and home offices, and instant transfer for workstations,

Hassle-Free Cabling. Instantly upgrade to 2.5 Gbps without the need to upgrade to Cat6 wiring, reducing wiring costs and hassle.

Silent Operation. Industry-leading fanless design ensures silent operation, ideal for any home or business.

Plug and Play. Allows for easy deployment without the need for a technician.

Metal Casing. Durable metal casing and desktop wall-mounting design are well-suited for different environments.

HARDWARE FEATURES

Standards and Protocols IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1p, 802.3bz

Interface 8— 100Mbps 1Gbps 2.5Gbp Ports, Auto-Negotiation, Auto-MDI MDIX

Fan Quantity Fanless

External Power Supply External Power Adapter (Output: 12 VDC 1.5 A)

LED Indicator System Power: 1

Link Act Indicators: 8, 1 indicator per port built into each RJ-45 port

Dimensions ( W x D x H ) 8.9—5.2—1.4 in (226—131—35 mm)

Max Power Consumption 15.65 W

Max Heat Dissipation 53.40 BTU h

PERFORMANCE

Switching Capacity 40 Gbps

Packet Forwarding Rate 29.8 Mpps

MAC Address Table 16 K

Packet Buffer Memory 1.5 Mb

Jumbo Frame 10 KB

SOFTWARE FEATURES

Advanced Features 802.3X Flow Control

802.1p DSCP QoS

Transfer Method Store and Forward

OTHERS

Certification CE, FCC ,RoHS

Package Contents 8-Port 2.5G Multi-Gigabit Desktop Switch TL-SG108-M2

Power Adapter

Installation Guide

Rubber Feet

Environment Operating Temperature: 0“40 degreeC (32“104 degreeF)

Storage Temperature: -40“70 degreeC (-40“158 degreeF)

Operating Humidity: 10“90pct RH non-c
