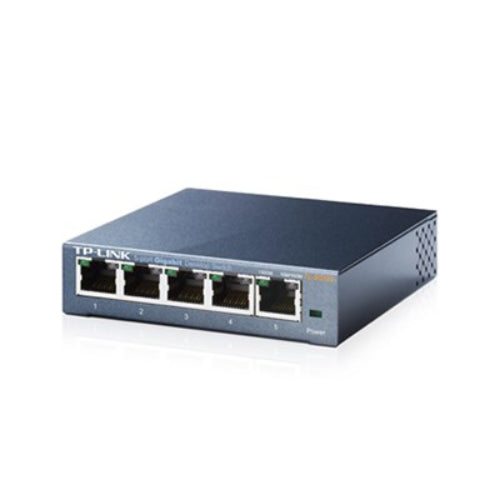

TP-Link TL-SG105 5port Switch Desktop,Gigabit,Steel Case

5-Port 10 100 1000Mbps Desktop Switch

5— 10 100 1000 Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI MDIX

Plug and play, no configuration needed

Supports 802.1p DSCP QoS and IGMP Snooping functions

Durable metal casing, desktop wall-mounting options, and a fanless design

IEEE 802.3x flow control provides reliable data transfer

Green Ethernet technology reduces power consumption

HARDWARE FEATURES

Standards and Protocols IEEE 802.3i 802.3u 802.3ab 802.3x, IEEE 802.1p

Interface 5— 10 100 1000 Mbps, Auto-Negotiation, Auto-MDI MDIX Ports

Fan Quantity Fanless

External Power Supply External Power Adapter (Output: 5 V DC 0.6A)

LED Indicator System Power

Link Act indicators per port built into each RJ-45 port

Dimensions ( W x D x H ) (100 x 98 x 25 mm)

Max Power Consumption 2.3 W (220 V 50 Hz)

Max Heat Dissipation 7.83 BTU h

PERFORMANCE

Packet Forwarding Rate 7.4 Mpps

MAC Address Table 2K

Packet Buffer Memory 1 Mb

Jumbo Frame 16 KB

SOFTWARE FEATURES

Advanced Features Green Technology

802.3X Flow Control

802.1P DSCP QoS (for V2 and later version)

IGMP Snooping

Transfer Method Store and Forward

OTHERS

Certification CE, FCC, RoHS

Package Contents 5-Port 10 100 1000Mbps Desktop Switch

Power Adapter

Installation Guide

Environment Operating Temperature: 0“40 degreeC (32“104 degreeF)

Storage Temperature: -40“70 degreeC (-40“158 degreeF)

Operating Humidity: 10“90pct RH non-condensing

Storage Humidity: 5“90pct RH non-condensing
