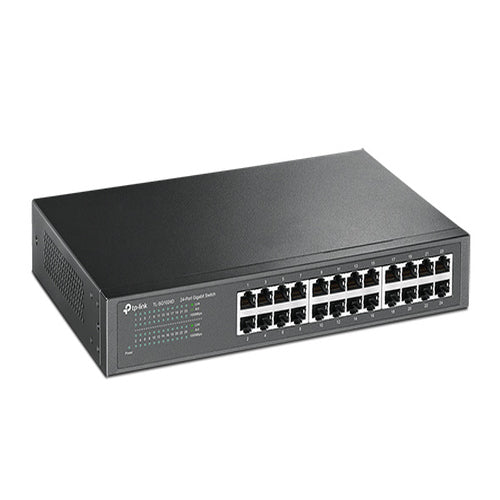

TP-Link TL-SG1024D 24-Port Gigabit Desktop Rackmount Switch
24 10 100 1000Mbps ports
Innovative energy-efficient technology saves power consumption
Supports MAC address self-learning, Auto MDI MDIX and Auto negotiation
Plug play design
HARDWARE FEATURES
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x
Interface 24 10 100 1000Mbps RJ45 Ports (Auto Negotiation Auto MDI MDIX)
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX 1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)
Fan Quantity Fanless
Physical Security Lock No
Power Supply 100-240VAC, 50 60Hz
Power Consumption Maximum: 13.1W (220V 50Hz)
Dimensions ( W x D x H ) 11.67.11.7 in. (29418044 mm)
Mounting Rack Mountable
Max Power Consumption 13.62W(220V 50Hz)
Max Heat Dissipation 46.44BTU h
PERFORMANCE
Switching Capacity 48Gbps
Packet Forwarding Rate 35.7Mpps
MAC Address Table 8K
Jumbo Frame 10KB
Green Technology Yes
Transfer Method Store-and-Forward
