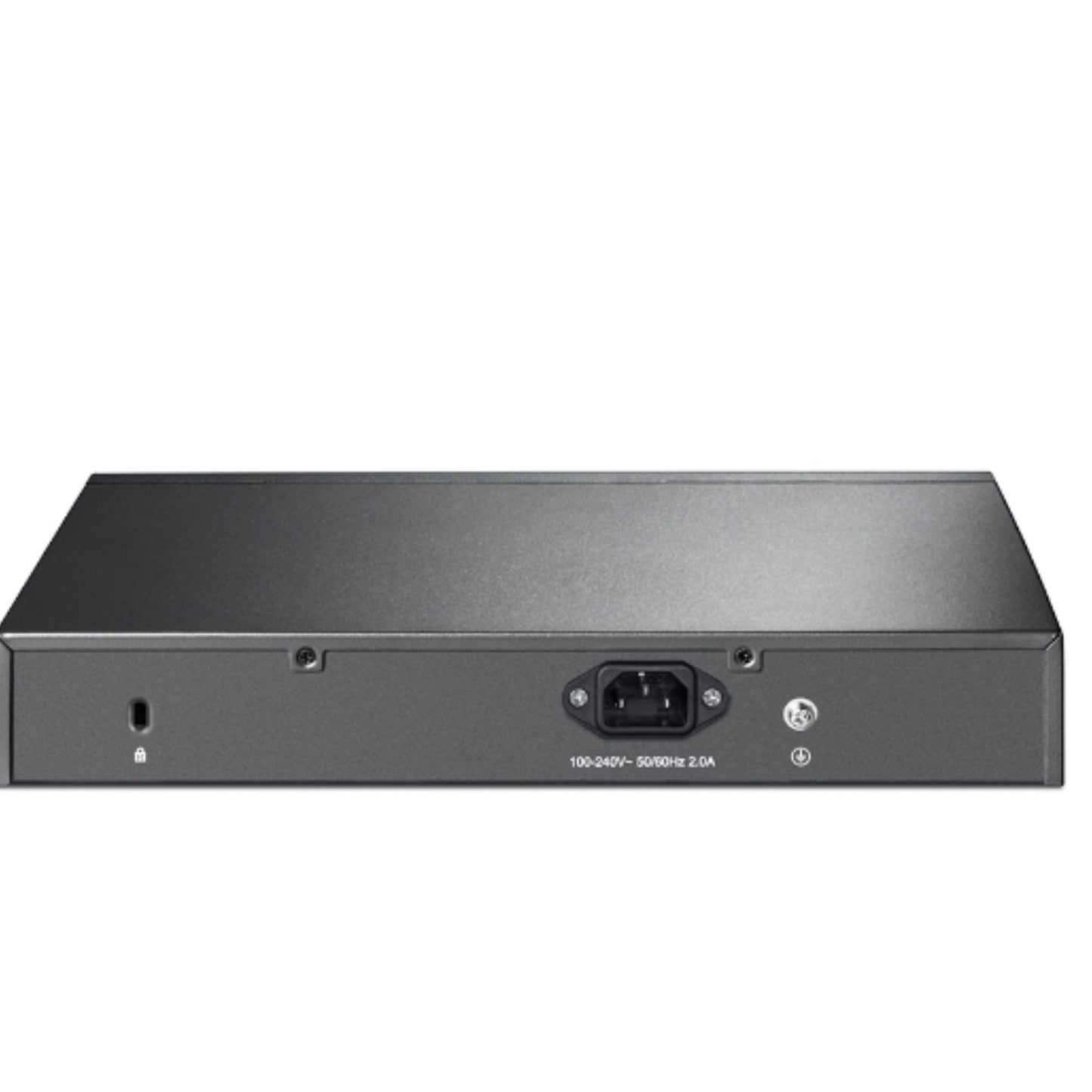

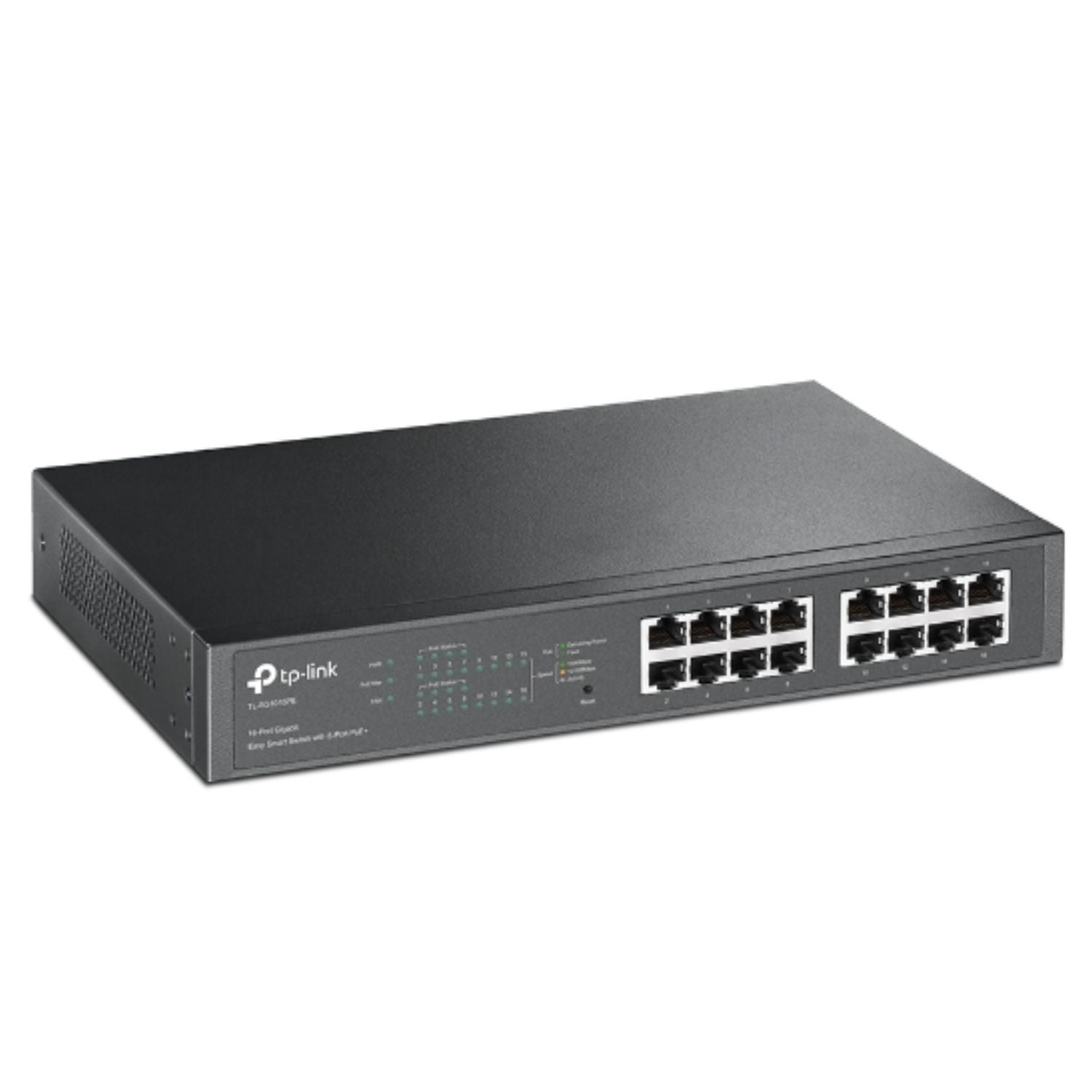

16-Port Gigabit Easy Smart Switch with 8-Port PoE
16 10 100 1000Mbps RJ45 ports
Equipped with 8 PoE supported ports to transfer data and power over a single cable
Works with IEEE 802.3af at compliant devices, expanding home and office networks
Innovative energy-efficient technology reduces power output by up to 75pct
Plug and play design, no configuration required
Actual data may vary in different usage environment.
HARDWARE FEATURES
Interface 16 10 100 1000Mbps RJ45 Ports
AUTO Negotiation AUTO MDI MDIX
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA TIA-568 100Ω STP (maximum 100m)
Fan Quantity 1

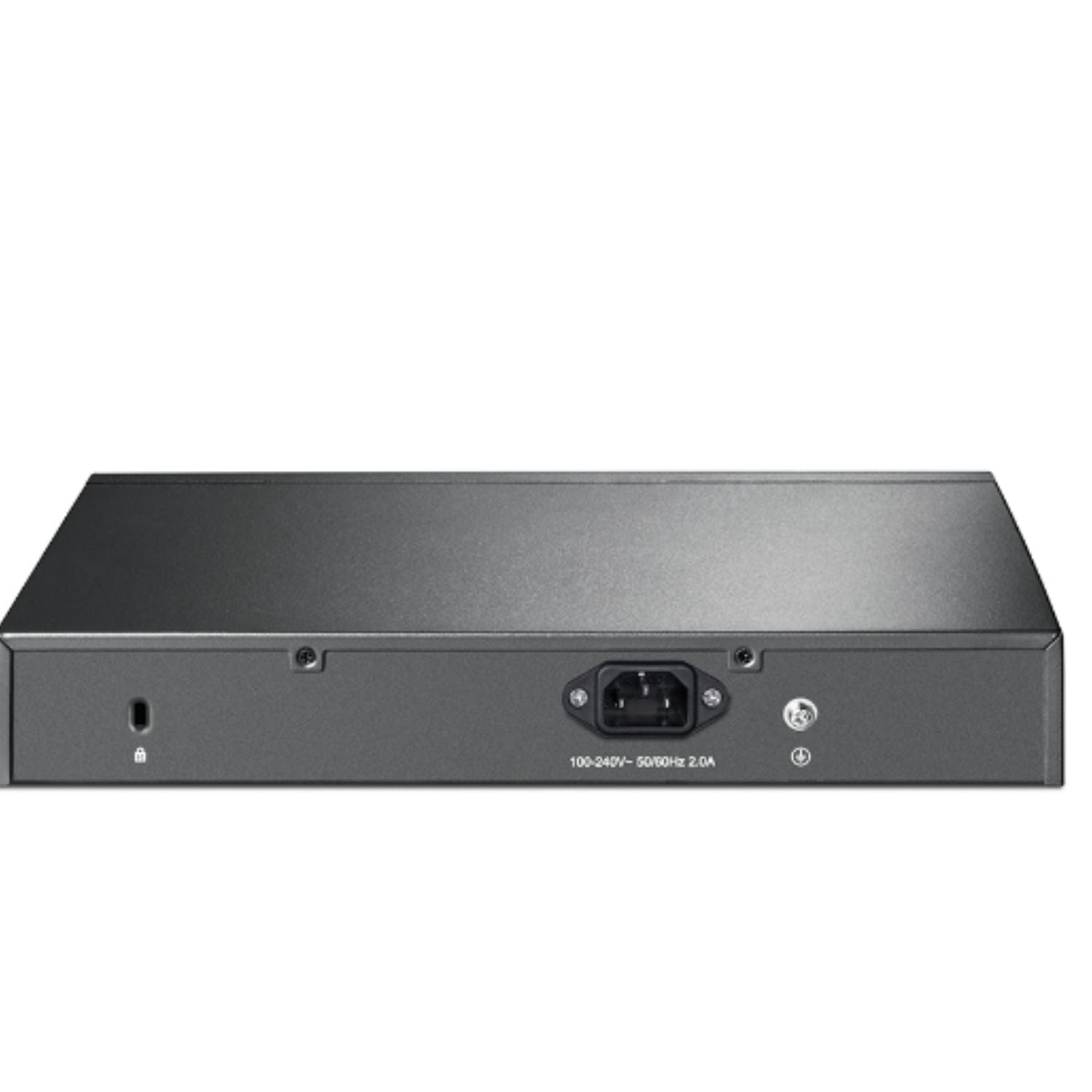

Power Supply 100-240VAC, 50 60Hz
Power Consumption Maximum (PoE on): 124.4W (220V 50Hz)
Maximum (PoE off): 14.4W (220V 50Hz)
PoE Ports(RJ45) 8 Ports
Backbound Bandwidth 32 Gbps
Mac Address Table 8K
Buffer Size 1.5 Mbits
Dimensions ( W x D x H ) 11.67.11.7 in. (29418044 mm)
SOFTWARE FEATURES
Transfer Method Store-And-Forward
Advanced Functions Compatible With IEEE 802.3af at Compliant PDs
Priority Function
Mac Address Auto-Learning And Auto-Aging
IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode
OTHERS
Certification FCC, CE, RoHS
Package Contents TL-SG1016PE
Power Cord
Installation Guide
Rackmount Kit
Rubber Feet
Consumption 9.5 watts (max. no PD connected)
140.1 watts (max. with 126w PD connected)
Environment Operating Temperature: 0~40 (32~104)
Storage Temperature: -40~70 (-40~158)
Operating Humidity: 10pct~90pct non-condensing
Storage Humidity: 5pct~90pct non-condensing
