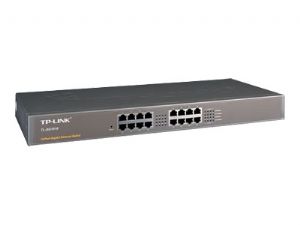

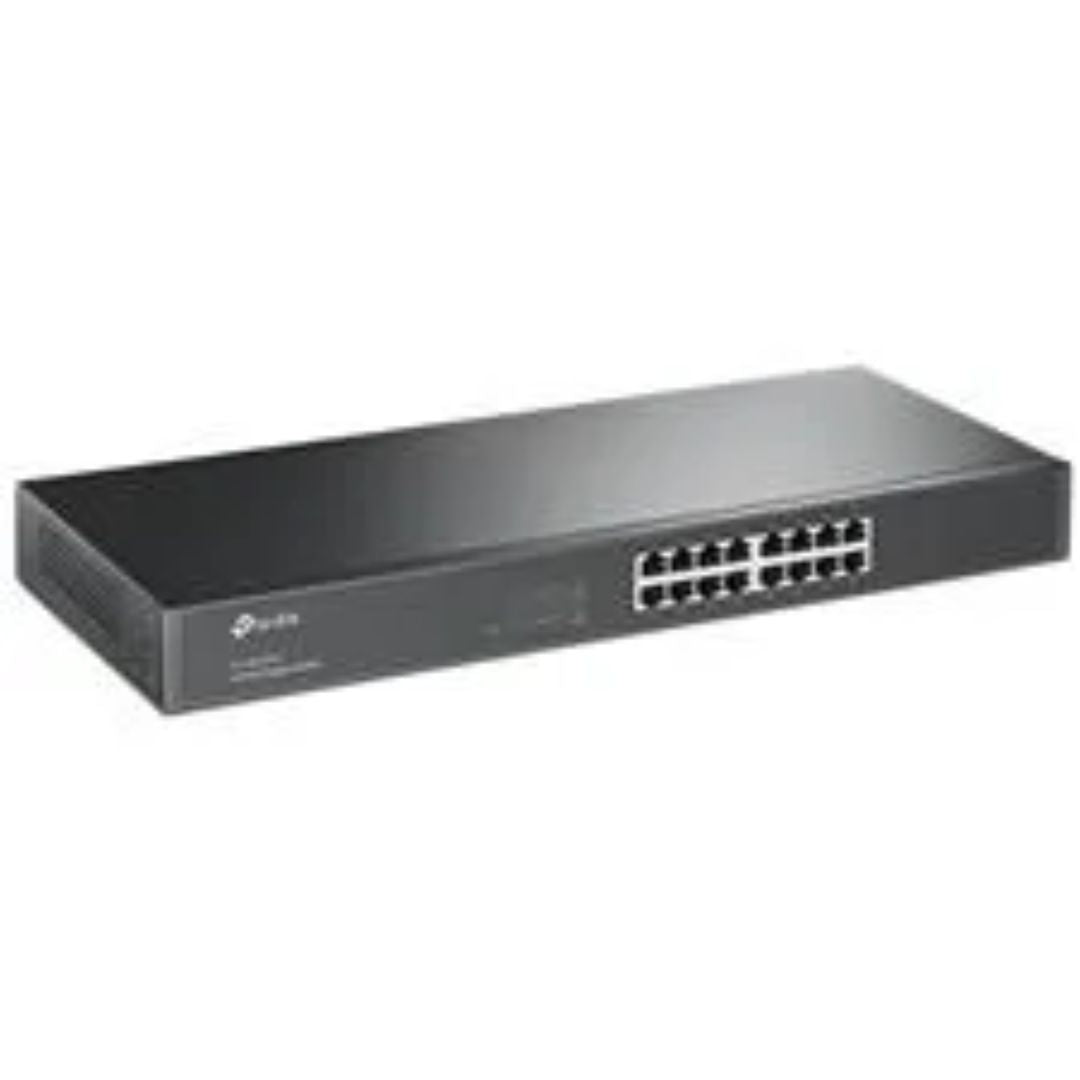

TP-Link TL-SG1016 16-Port Gigabit Rackmount Switch
16 10 100 1000Mbps RJ45 ports
Innovative energy-efficient technology saves power consumption
Supports MAC address self-learning and auto MDI MDIX
Standard 19-inch rack-mountable steel case
HARDWARE FEATURES
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x, IEEE 802.1p
Interface 16 10 100 1000Mbps RJ45 Ports (Auto Negotiation Auto MDI MDIX)
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX 1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)
Fan Quantity Fanless
Physical Security Lock No
Power Supply 100-240VAC, 50 60Hz
Dimensions ( W x D x H ) 17.37.11.7 in. (44018044 mm)
Mounting Rack Mountable
Max Power Consumption 10.44W
Max Heat Dissipation 35.60BTU h
PERFORMANCE
Switching Capacity 32Gbps
Packet Forwarding Rate 23.8Mpps
MAC Address Table 8K
Jumbo Frame 10KB
QoS 802.1p DSCP QoS
Only for V12 and later version
Green Technology Yes
Transfer Method Store-and-Forward
