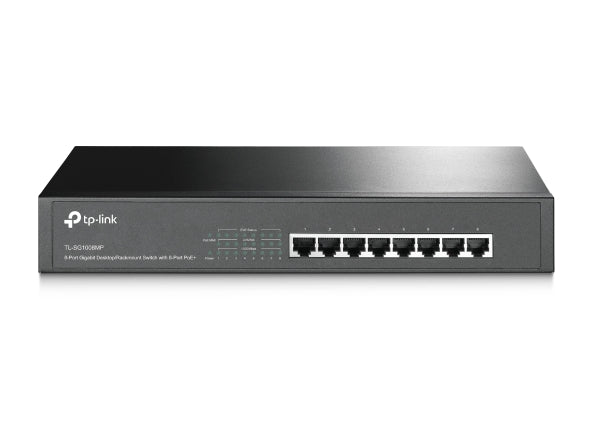

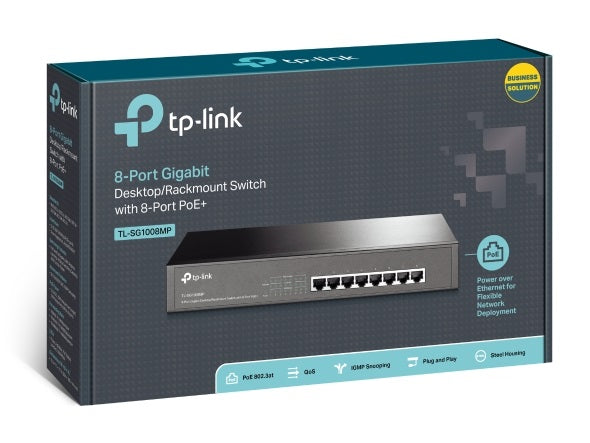

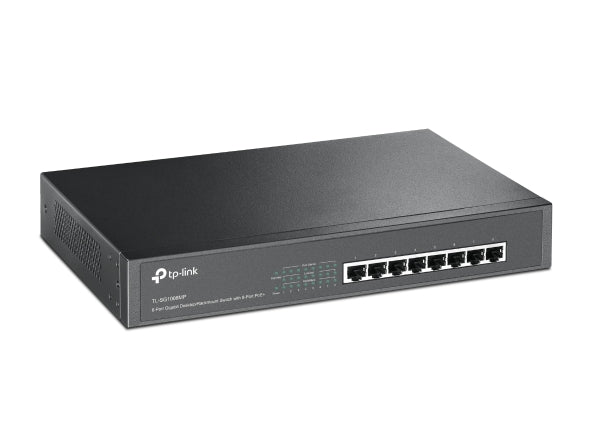

TP-Link TL-SG1008MP 8-Port Gigabit Desktop Rackmount Switch with 8-Port PoE (Replacement model of TL-SG1008PE)

8 10 100 1000Mbps RJ45 ports

Equipped with 8 PoE supported ports to transfer data and power over a single cable

Works with IEEE 802.3af at compliant devices, expanding home and office networks

Innovative energy-efficient technology reduces power consumption by up to 75pct

Supports PoE standard with total power budget of 126W and up to 30W per port

Plug and play design, no configuration required

HARDWARE FEATURES

Interface 8 10 100 1000Mbps RJ45 Ports

AUTO Negotiation AUTO MDI MDIX

Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

EIA TIA-568 100Ω STP (maximum 100m)

100BASE-TX: UTP category 5, 5e cable (maximum 100m)

EIA TIA-568 100Ω STP (maximum 100m)

1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)

EIA TIA-568 100Ω STP (maximum 100m)

Fan Quantity 1

Physical Security Lock No

Power Supply 100-240VAC, 50 60Hz

PoE Ports(RJ45) Standard: 802.3at af compliant

PoE Ports: 8 Ports

Power Supply: 126W

Backbound Bandwidth 16Gbps

Mac Address Table 4K

Buffer Size 1.5Mbits

Dimensions ( W x D x H ) 11.67.11.7 in. (29418044 mm)

Mounting Rack Mountable

Max Power Consumption 9.89W(220V 50Hz. no PD connected)

140.67W(110V 60Hz. with 126W PD connected)

Max Heat Dissipation 33.74BTU h(no PD connected)

492.56BTU h(with 126W PD connected

)

SOFTWARE FEATURES

Advanced Features Compatible With IEEE 802.3af at Compliant PDs

Priority Function

Mac Address Auto-Learning And Auto-Aging

IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode

Transfer Method Store-And-Forward

OTHERS

Certification FCC, CE, RoHS

Package Contents TL-SG1008MP, Power Cord, Installation Guide, Rackmount Kit, Rubber Feet
