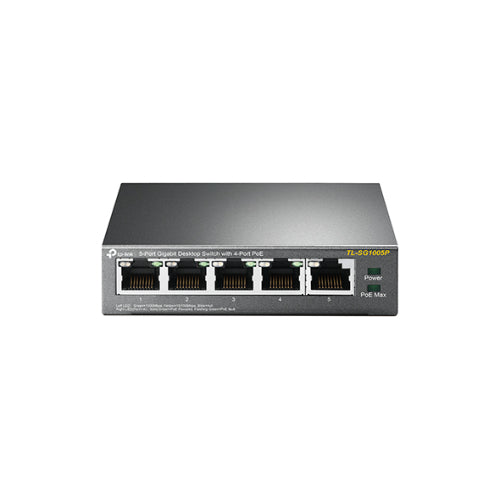

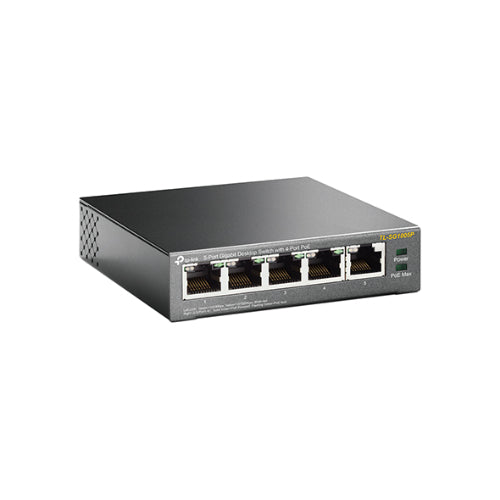

TP-Link TL-SG1005P 5-Port Gigabit Desktop Switch with 4-Port PoE 56W

5 10 100 1000Mbps RJ45 ports

With four PoE ports, transfers data and power on one single cable

Working with IEEE 802.3af compliant PDs, expands home and office network

802.1p DSCP QoS enable smooth latency-sensitive traffic

Supports PoE Power up to 15.4W for each PoE port

Supports PoE Power up to 56W for all PoE ports

Requires no configuration and installation

HARDWARE FEATURES

Interface 5— 10 100 1000Mbps RJ45 Ports

AUTO Negotiation

AUTO MDI MDIX

Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

EIA TIA-568 100Ω STP (maximum 100m)

100BASE-TX: UTP category 5, 5e cable (maximum 100m)

EIA TIA-568 100Ω STP (maximum 100m)

1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)

EIA TIA-568 100Ω STP (maximum 100m)

Fan Quantity Fanless

External Power Supply External Power Adapter (Output: 53.5 VDC 1.31 A)

Packet Forwarding Rate 7.44 Mpps

PoE Ports (RJ45) Standard: 802.3 af at compliant

PoE Ports: Ports 1“4

Power Supply: 65 W

Mac Address Table 2K

Jumbo Frame 16 KB

Switching Capacity 10 Gbps

Dimensions ( W x D x H ) 3.9—3.9—1.0 in (99.8—98—25 mm)

Max Power Consumption 4.29 W (220 50 Hz. no PD connected)

74.24 W (220 50 Hz. with 65 W PD connected)

Max Heat Dissipation 14.63 BTU h (no PD connected)

253.16 BTU h (with 65 W PD connected)

SOFTWARE FEATURES

Advanced Features Compatible With IEEE 802.3af at Compliant PDs

Mac Address Auto-Learning And Auto-Aging

IEEE 802.3x Flow Control

802.1p DSCP QoS

IGMP Snooping
