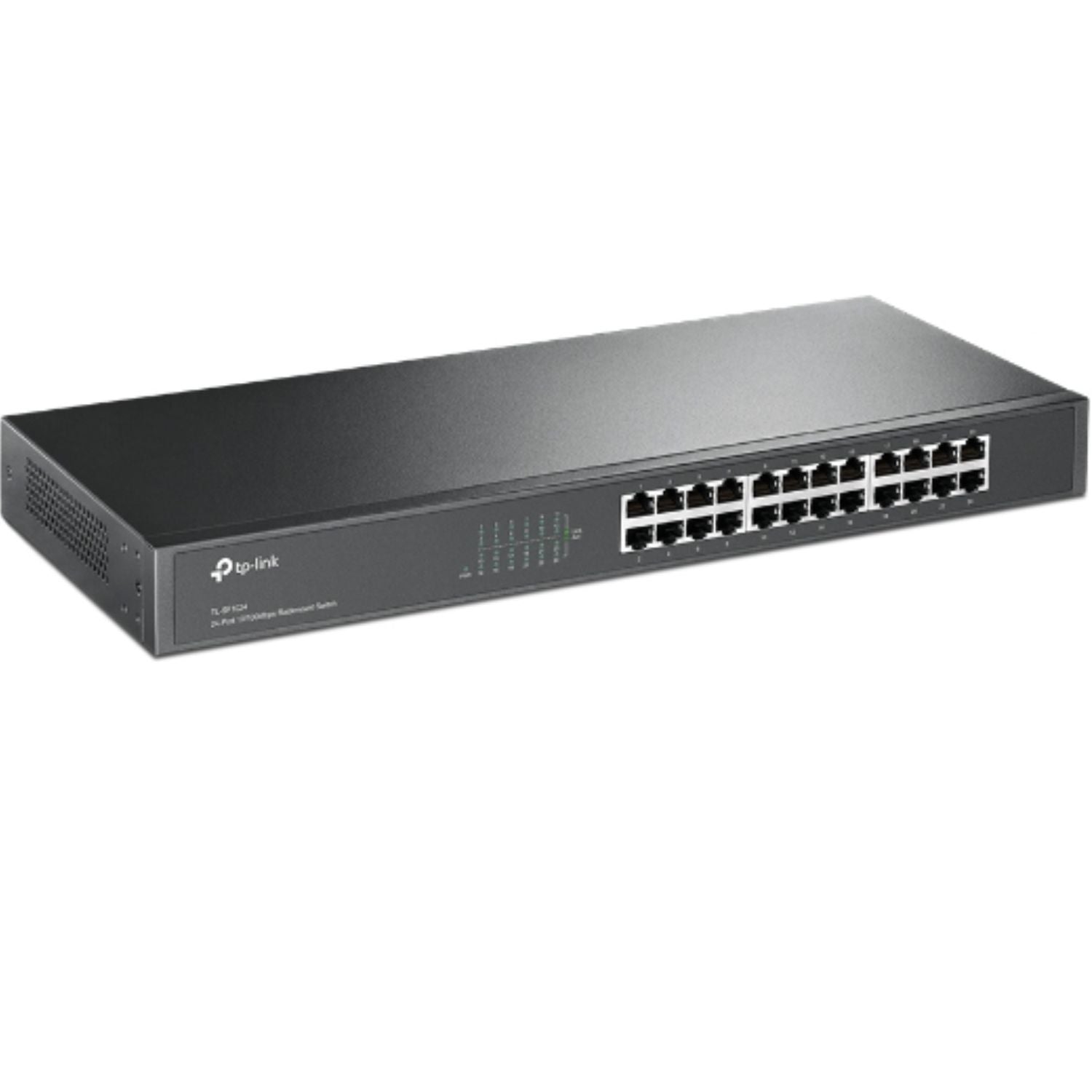

TP-Link TL-SF1024 24-Port 10 100Mbps Rackmount Switch Unmanaged

24 10 100Mbps RJ45 ports

Innovative energy-efficient technology saves power up to 75pct

Supports MAC address self-learning and auto MDI MDIX

Standard 19-inch rack-mountable steel case

HARDWARE FEATURES

Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3x

Interface 24 10 100Mbps RJ45 Ports (Auto Negotiation Auto MDI MDIX)

Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

100BASE-TX: UTP category 5, 5e or above cable (maximum 100m)

Fan Quantity Fanless

Power Supply 100-240VAC, 50 60Hz

Power Consumption Maximum: 3.53W (220V 50Hz)

Dimensions ( W x D x H ) 17.37.11.7 in. (44018044 mm)

PERFORMANCE

Switching Capacity 4.8Gbps

Packet Forwarding Rate 3.57Mpps

MAC Address Table 8K

Buffer Memory 2Mb

Green Technology Innovative energy-efficient technology saves power up to 75pct

Transfer Method Store-and-Forward

OTHERS

Certification FCC, CE, RoHS

Package Contents 24-Port 10 100Mbps Rackmount Switch

Power Cord

Installation Guide

Rackmount Kit

Rubber Feet

System Requirements Microsoft Windows 8, 7,Vista„, XP or MAC OS, NetWare, UNIX or Linux.

Environment Operating Temperature: 0„ƒ~40„ƒ (32„‰~104„‰)

Storage Temperature: -40„ƒ~70„ƒ (-40„‰~158„‰)

Operating Humidity: 10pct~90pct non-condensing

Storage Humidity: 5pct~90pct non-condensing

What This Product Does

The 24-Port 10 100Mbps Rackmount Switch TL-SF1024 provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 100Mbps network. All 24 ports support auto MDI MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1024 can save up to 75pct of the power consumption and 80pct of the packaging material can be recycled, making it an eco-friendly solution for your business network.
