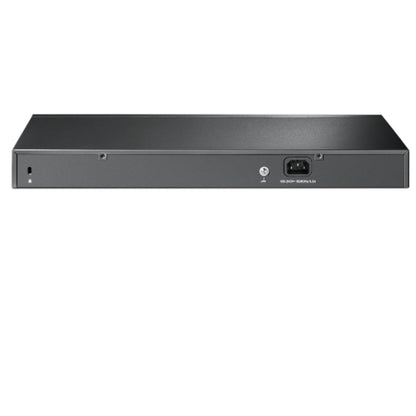

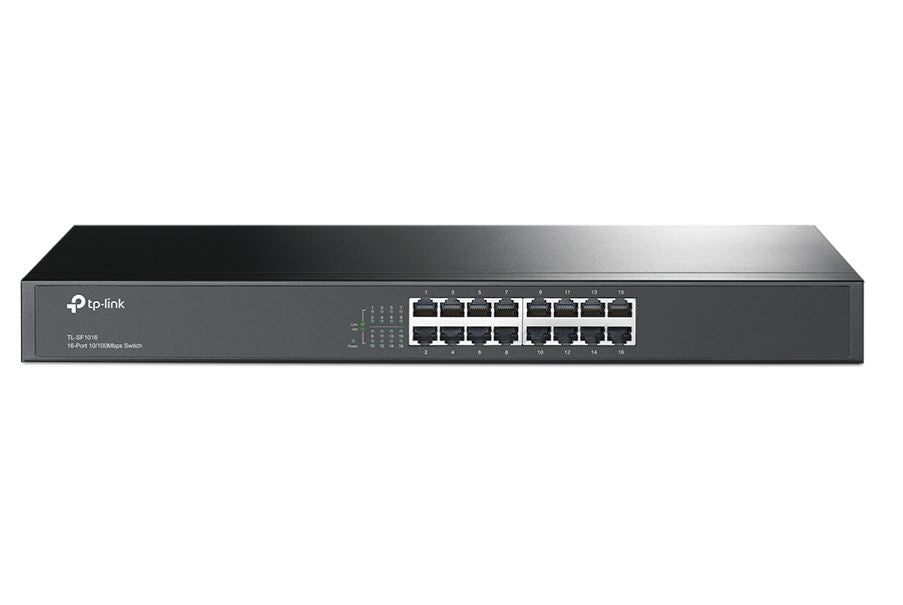

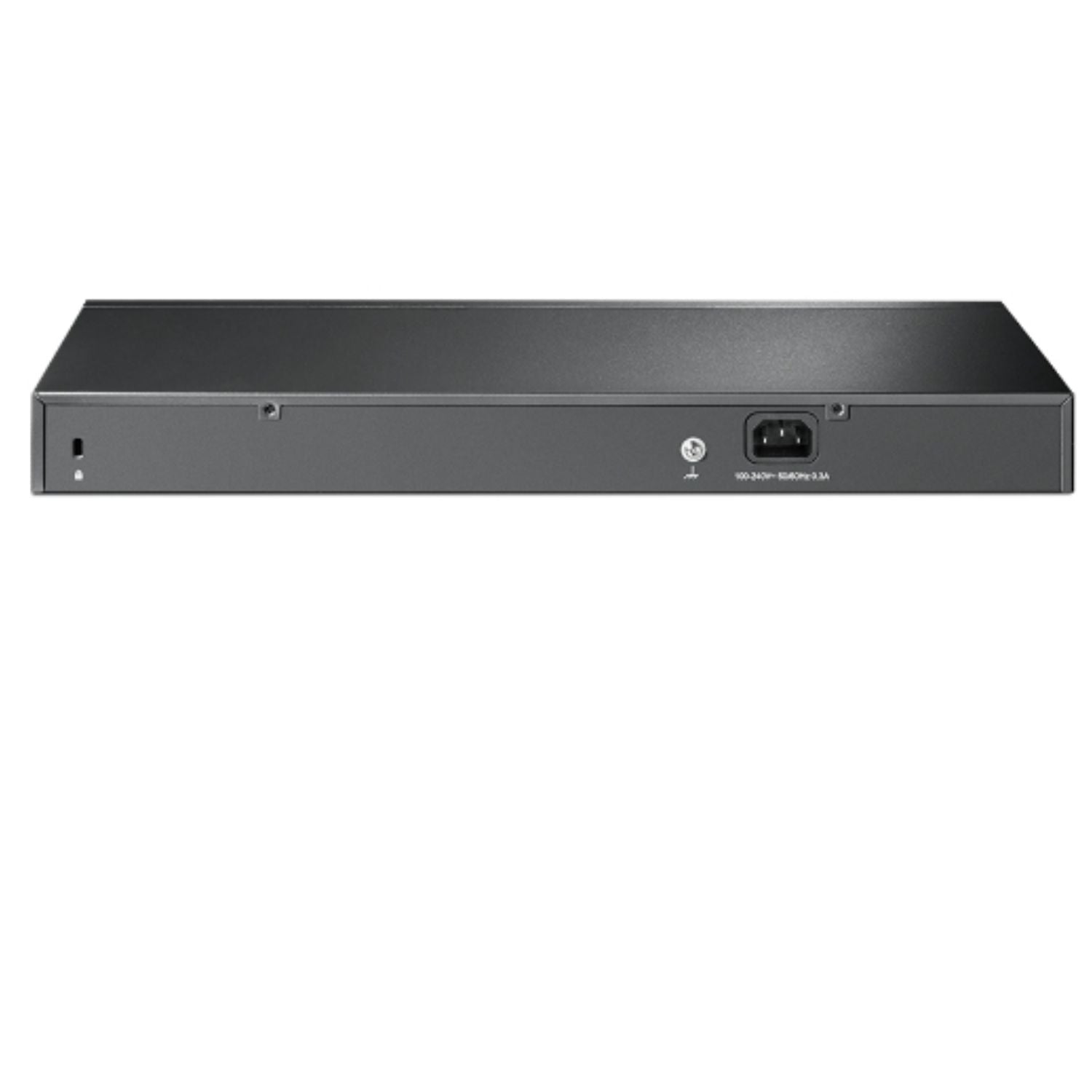

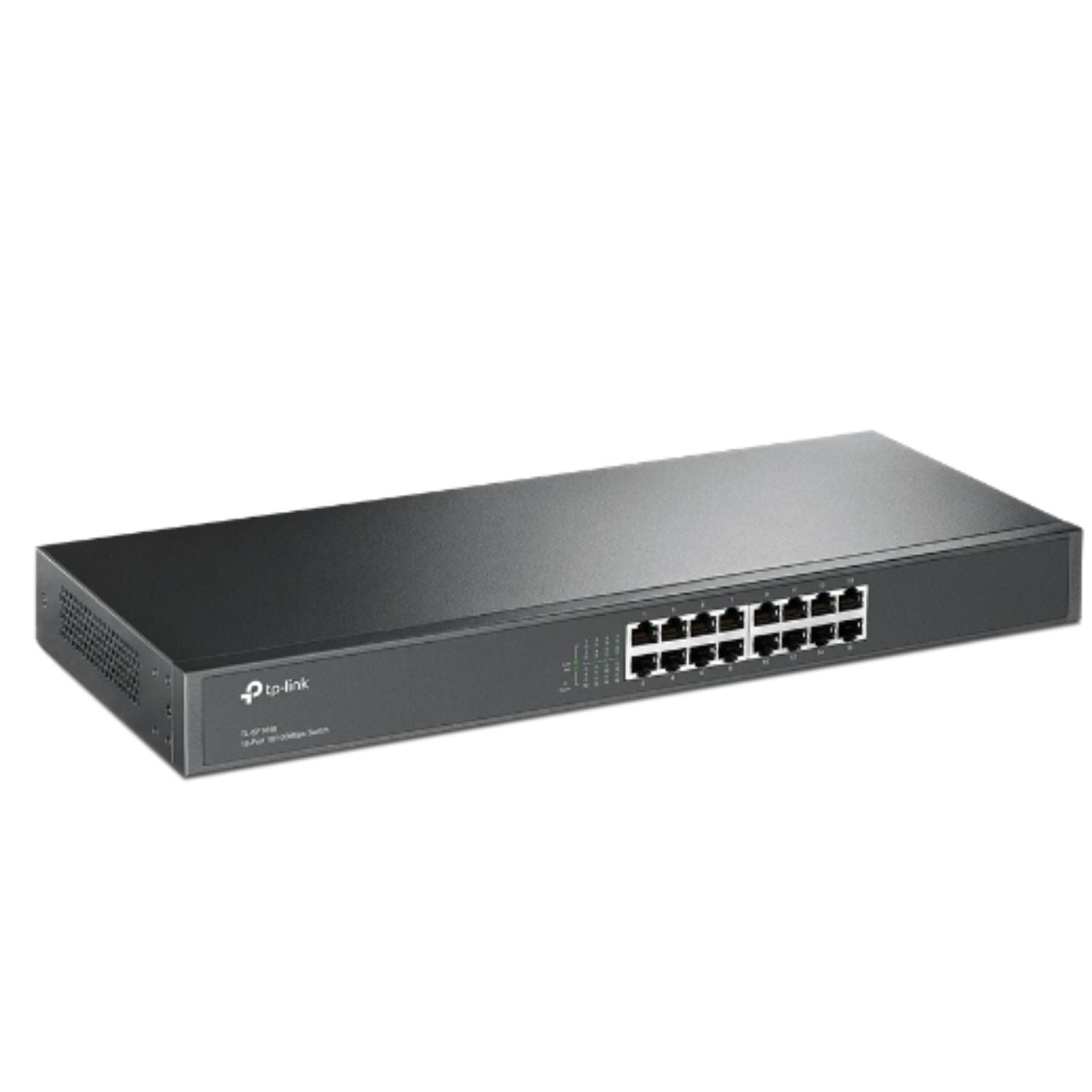

TP-Link TL-SF1016 16-Port 10 100Mbps Rackmount Switch MAC MDI MDIX Steel Case

16 10 100Mbps RJ45 ports

Innovative energy-efficient technology saves power up to 75pct

Supports MAC address self-learning and auto MDI MDIX

Standard 19-inch rack-mountable steel case

What This Product Does

The 16-Port 10 100Mbps Rackmount Switch TL-SF1016 provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 100Mbps network.

All 16 ports support auto MDI MDIX, no need to worry about the cable type, simply plug and play.

Moreover, with the innovative energy-efficient technology, the TL-SF1016 can save up to 75pct of the power consumption and 80pct of the packaging material can be recycled, making it an eco-friendly solution for your business network.

HARDWARE FEATURES

Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3x

Interface 16 10 100Mbps RJ45 Ports

AUTO Negotiation AUTO MDI MDIX

Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

100BASE-TX: UTP category 5, 5e or above cable (maximum 100m)

Fan Quantity Fanless

Power Supply 100-240VAC, 50 60Hz

Power Consumption Maximum: 2.23W (220V 50Hz)

Dimensions ( W x D x H ) 17.37.11.7 in. (44018044 mm)

PERFORMANCE

Switching Capacity 3.2Gbps

Packet Forwarding Rate 2.38Mpps

MAC Address Table 8K

Buffer Memory 2Mb

Green Technology Innovative energy-efficient technology saves power up to 70pct

Transfer Method Store-and-Forward

OTHERS

Certification FCC, CE, RoHS

Package Contents 16-Port 10 100Mbps Rackmount Switch

Power Cord

Installation Guide

Rackmount Kit

Rubber Feet

Environment Operating Temperature: 0„ƒ~40„ƒ (32„‰~104„‰)

Storage Temperature: -40„ƒ~70„ƒ (-40„‰~158„‰)

Operating Humidity: 10pct~90pct non-condensing

Storage Humidity: 5pct~90pct non-condensing
