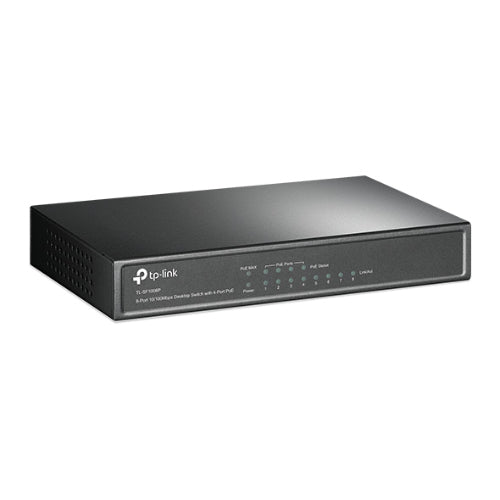

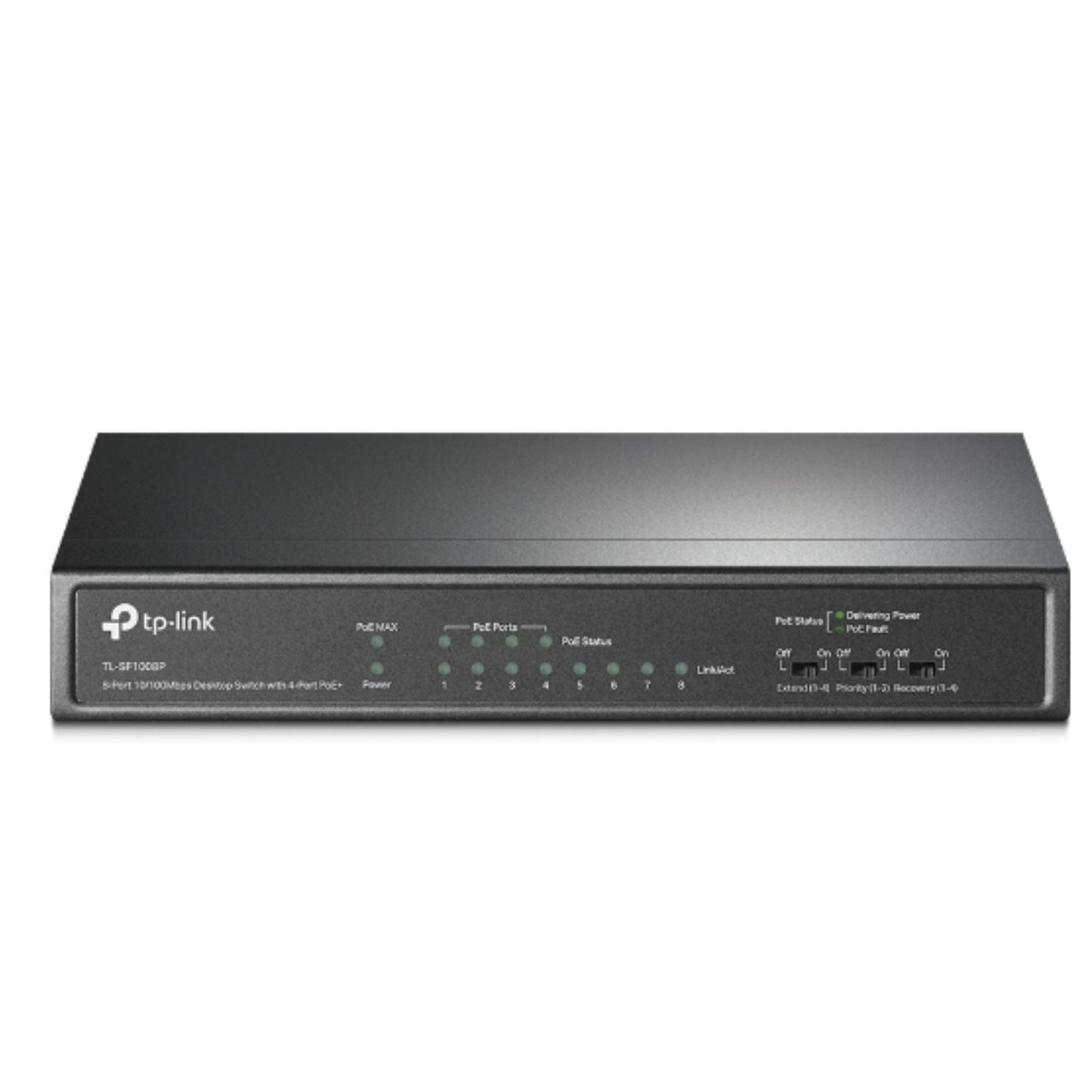

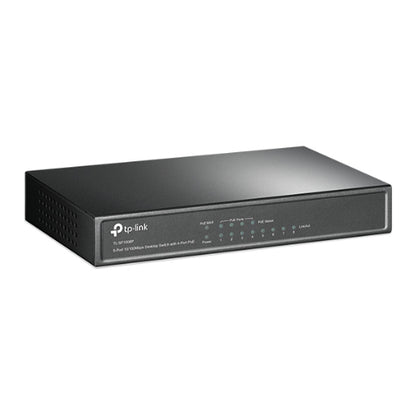

TL-SF1008P is an 8 10 100Mbps ports unmanaged switch that requires no configuration and provides 4 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE 802.3af compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.
HARDWARE FEATURES
Interface 8 10 100Mbps RJ45 Ports
AUTO Negotiation AUTO MDI MDIX
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA TIA-568 100Ω STP (maximum 100m)
Fan Quantity Fanless
Power Consumption Maximum (PoE on): 60.2W (220V 50Hz)
Maximum (PoE off): 3.2W (220V 50Hz)
External Power Supply External Power Adapter(Output: 48VDC 1.25A)
PoE Ports (RJ45) Standard: 802.3 af compliant
PoE Ports: Port1- Port4
Power Supply: 57W
Backbound Bandwidth 1.6Gbps
Mac Address Table 2K
Dimensions ( W x D x H ) 6.73.91.1 in. (1719827 mm)
