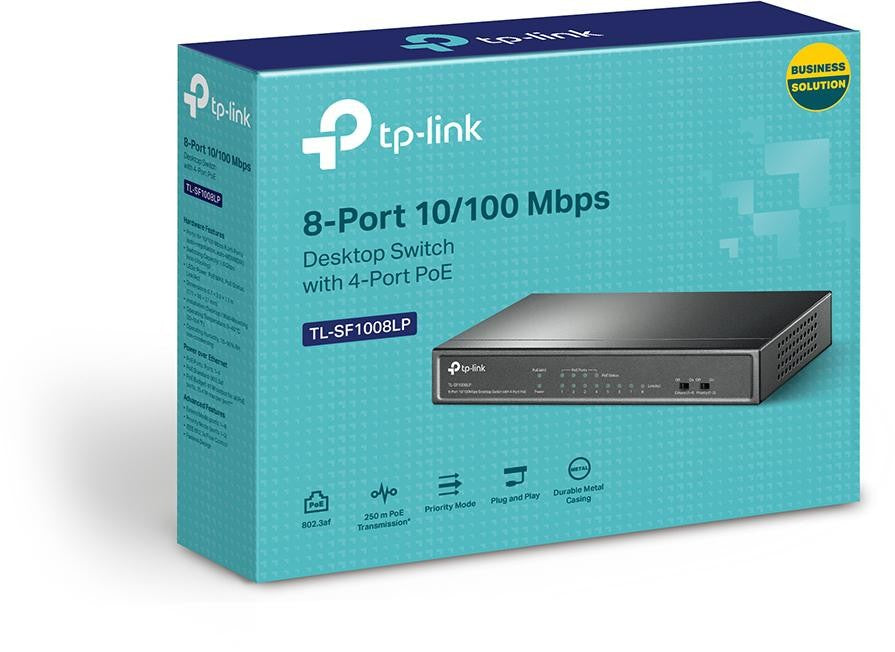

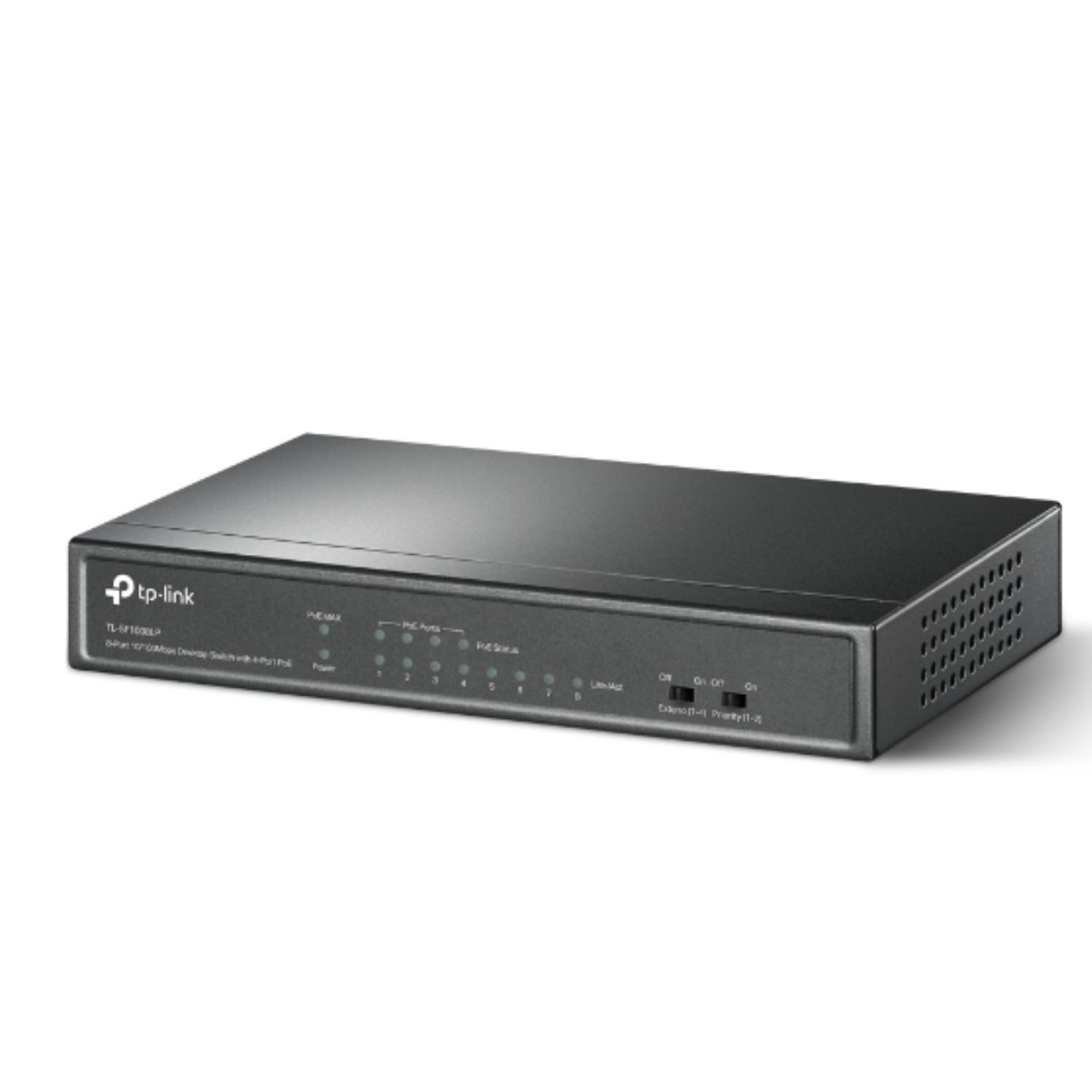

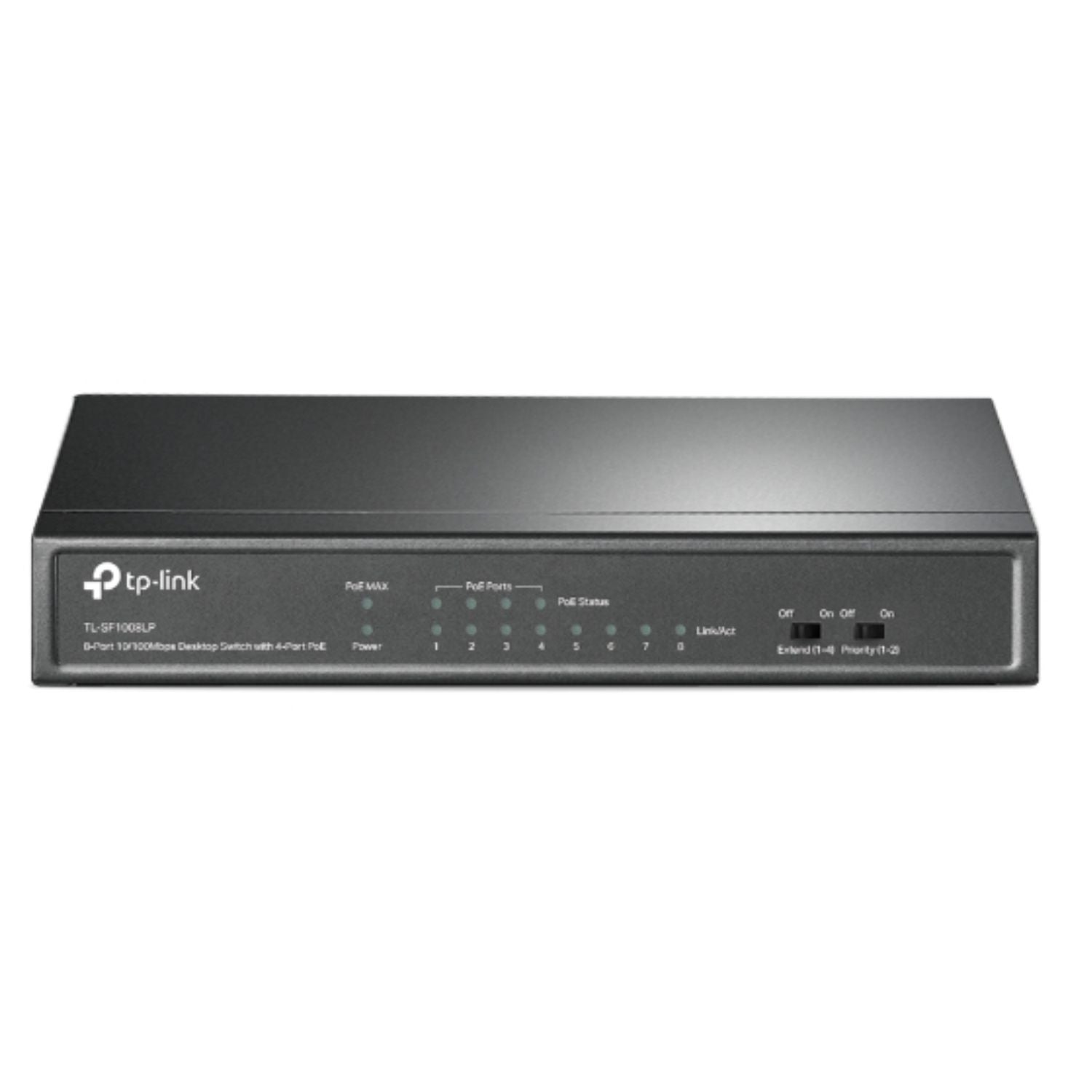

TP-Link TL-SF1008LP 8-Port 10 100Mbps Desktop Switch with 4-Port PoE

8— 10 100 Mbps RJ45 ports

4— PoE ports transfer data and power on individual cables

Works with IEEE 802.3af compliant PDs

Up to 250m data and power transmitting range under Extend Mode

Priority Mode ensures high priority of ports 1“2 to guarantee the quality of sensitive application

Supports PoE Power up to 41 W for all PoE ports

Plug and play with no configuration required

HARDWARE FEATURES

Interface 8— 10 100 Mbps RJ45 Ports (Ports 1“4 support 802.3af PoE)

AUTO Negotiation

AUTO MDI MDIX

Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

EIA TIA-568 100Ω STP (maximum 100m)

100BASE-TX: UTP category 5, 5e cable (maximum 100m)

EIA TIA-568 100Ω STP (maximum 100m)

Fan Quantity Fanless

Physical Security Lock Yes

External Power Supply External Power Adapter (Output: 53.5 V DC 0.81 A)

PoE Ports (RJ45) Standard: 802.3 af compliant

PoE Ports: Ports 1“4

Power Supply: 41 W

Backbound Bandwidth 1.6 Gbps

Mac Address Table 2K

Dimensions ( W x D x H ) 6.7 — 3.9 — 1.1 in (171 — 98 — 27 mm)

Max Power Consumption 2.2 W (220 V 50 Hz. no PD connected)

47.1 W (220 V 50 Hz. with 41 W PD connected)

Max Heat Dissipation 7.5 BTU h(no PD connected)

160.61 BTU h(with 41 W PD connected)

SOFTWARE FEATURES

Transmission Method Store-And-Forward

Advanced Functions Compatible With IEEE 802.3af Compliant PDs

Extend Mode Button (Ports 1“4)

Priority Mode Button (Ports 1“2)

Mac Address Auto-Learning and Auto-Aging

IEEE802.3x Flow Control for Full-Duplex Mode and Backpressure for Half-Duplex Mode

OTHERS

Certification FCC, CE, RoHS

Package Contents TL-SF1008LP

Power Adapter

Installation Guide

Environment Operating Temperature: 0“40 „ƒ (32“104 „‰)

Storage Temperature: -40“70 „ƒ (-40“158 „‰)

Operating Humidity: 10“90pct RH non-condensing

Storage Humidity: 5“90pct RH non-condensing
