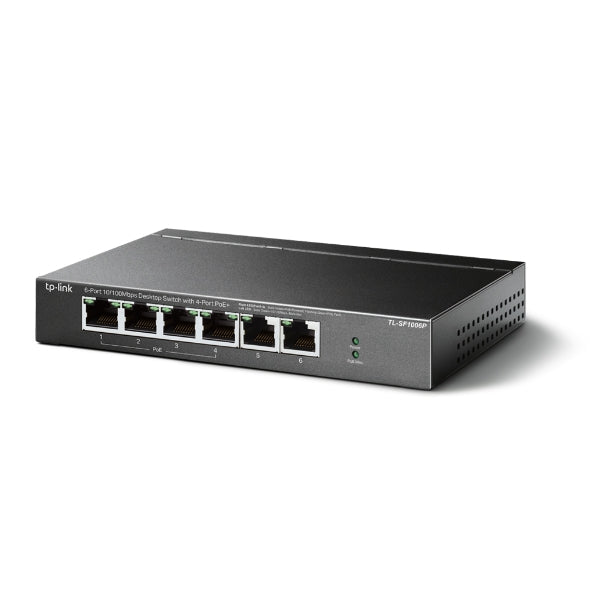

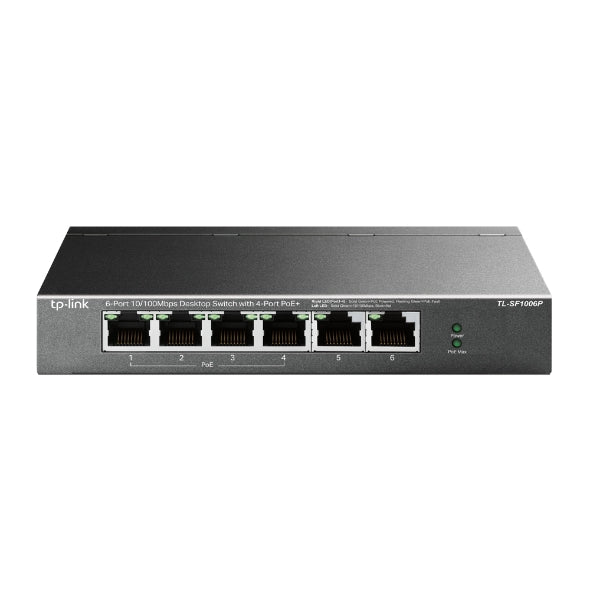

TP-Link TL-SF1006P 6-Port 10 100Mbps Desktop Switch with 4-Port PoE

6— 10 100 Mbps RJ45 ports

4— PoE ports transfer data and power on individual cables

Works with IEEE 802.3af at compliant PDs

Up to 250m data and power transmitting range under Extend Mode

Priority Mode ensures high priority of ports 1“2 to guarantee the quality of sensitive application

Supports PoE Power up to 30 W for each PoE port

Supports PoE Power up to 67 W for all PoE ports

Plug and play with no configuration required

HARDWARE FEATURES

Interface 6— 10 100 Mbps RJ45 Ports (ports 1“4 support 802.3af at PoE)

AUTO Negotiation

AUTO MDI MDIX

Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

EIA TIA-568 100Ω STP (maximum 100m)

100BASE-TX: UTP category 5, 5e cable (maximum 100m)

EIA TIA-568 100Ω STP (maximum 100m)

Fan Quantity Fanless

Physical Security Lock Yes

External Power Supply External Power Adapter (Output: 53.5 V DC 1.31 A)

Packet Forwarding Rate 0.8928 Mpps

PoE Ports (RJ45) Standard: 802.3 af at compliant

PoE Ports: Ports 1“4

Power Supply: 67 W

Mac Address Table 2K

Jumbo Frame 2 KB

Switching Capacity 1.2 Gbps

Dimensions ( W x D x H ) 6.2 x 4.0 x 1.0 in (158 x 101 x 25 mm)

Max Power Consumption 1.9 W (220 V 50 Hz, no PD connected)

74 W (220 V 50 Hz, with 67 W PD connected)

Max Heat Dissipation 6.48 BTU h(no PD connected)

252.34 BTU h(with 67 W PD connected)

SOFTWARE FEATURES

Transmission Method Store-And-Forward

Advanced Functions Compatible With IEEE 802.3af at Compliant PDs

Extend Mode Button (Ports 1“4)

Priority Mode Button (Ports 1“2)

Mac Address Auto-Learning and Auto-Aging

IEEE802.3x Flow Control For Full-Duplex Mode and Backpressure for Half-Duplex Mode

OTHERS

Certification FCC, CE, RoHS

Package Contents TL-SF1006P

Power Adapter

Installation Guide

Environment Operating Temperature: 0“40 „ƒ (32“104 „‰)

Storage Temperature: -40“70 „ƒ (-40“158 „‰)
