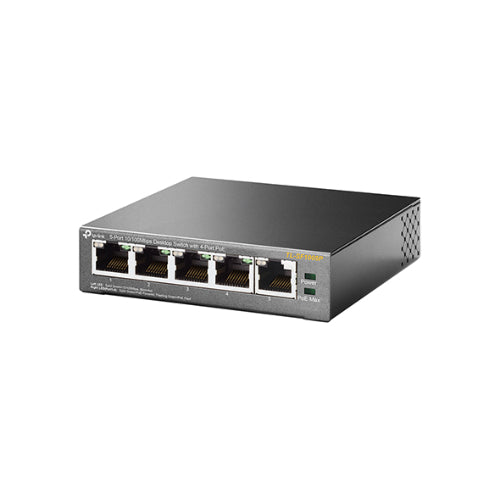

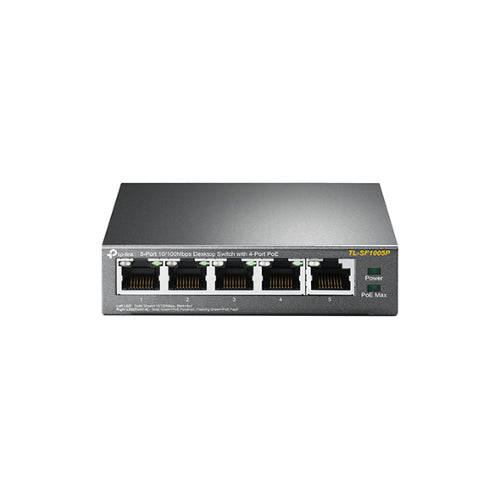

TP-Link TL-SF1005P 5-Port 10 100Mbps Desktop Switch with 4-Port PoE 58W IEEE 802.3af compliant 1Gbps Switching

5 10 100Mbps RJ45 ports

With four PoE ports, transfers data and power on one single cable

Working with IEEE 802.3af compliant PDs, expands home and office network

Supports PoE Power up to 15.4W for each PoE port

Supports PoE Power up to 58W for all PoE ports

Requires no configuration and installation

HARDWARE FEATURES

Interface 5 10 100Mbps RJ45 Ports

AUTO Negotiation AUTO MDI MDIX

Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

EIA TIA-568 100Ω STP (maximum 100m)

100BASE-TX: UTP category 5, 5e cable (maximum 100m)

EIA TIA-568 100Ω STP (maximum 100m)

Fan Quantity Fanless

External Power Supply External Power Adapter(Output: 48VDC 1.25A)

PoE Ports (RJ45) Standard: 802.3 af compliant

PoE Ports: Port1- Port4

Power Supply: 58W

Mac Address Table 2K

Switching Capacity 1Gbps

Dimensions ( W x D x H ) 3.9 x 3.9 x 1.0 in. (99.8 x 98 x 25 mm)

Transmission Distance Store-And-Forward

Max Power Consumption 63.51W (max. with 58w PD connected)

1.70W (max. no PD connected)

What This Product Does

TL-SF1005P is a 5 10 100Mbps ports unmanaged switch that requires no configuration and provides 4 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE 802.3af compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.

Power over Ethernet

4 of the 5 Auto-Negotiation RJ45 ports (Port 1 to Port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).

Overload Arrangement
