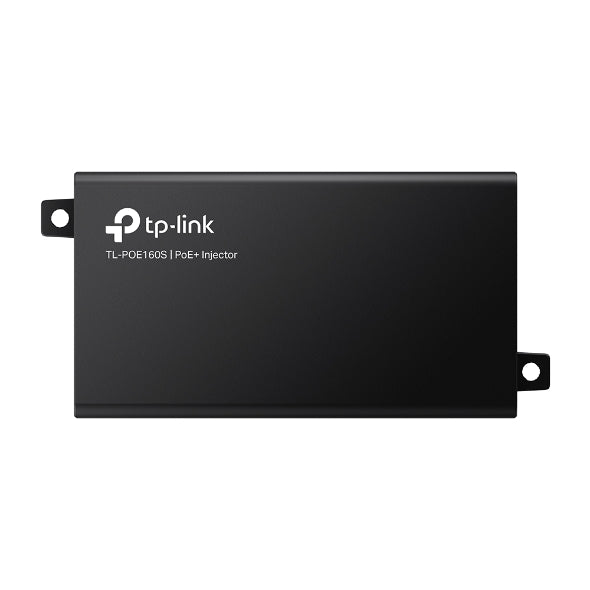

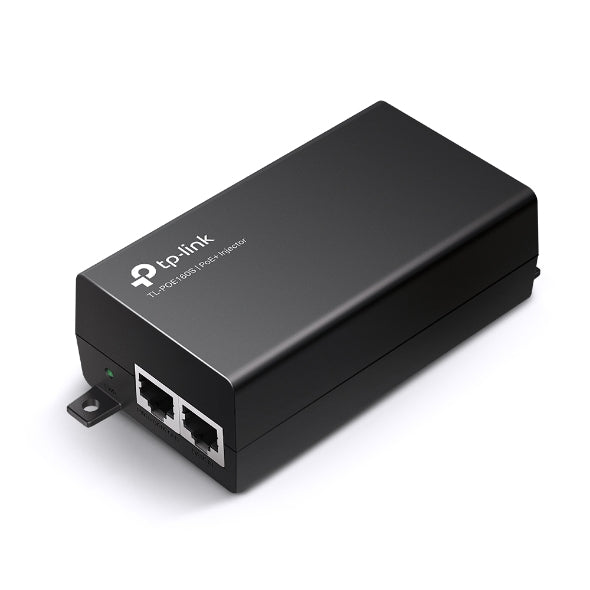

TP-Link TL-POE160S PoE Injector

2 Gigabit ports ensure faster transmission

Complies with IEEE802.3af at standards, supplies up to 30 W

Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable

Automatically determines and supplies the exact power to meet the device fts need

Wall-mounting and desktop design accommodates most installation scenarios

Plug Play installation, requires no configuration

Integrated power supply

NETWORK

Standards and Protocols IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at

GENERAL

Certification FCC, CE, RoHS

Environment Operating Temperature: 0 degreeC to 40 degreeC (32 degreeF to 104 degreeF)

Storage Temperature: -40 degreeC to 70 degreeC (-40 degreeF to 158 degreeF)

Operating Humidity: 10pct to 90pctRH non-condensing

Storage Humidity: 5pct to 90pctRH non-condensing

HARDWARE FEATURES

Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m)

EIA TIA-568 100Ω STP (maximum 100 m)

100BASE-TX: UTP category 5, 5e cable (maximum 100 m)

EIA TIA-568 100Ω STP (maximum 100 m)

1000BASE-T: UTP category 5, 5e, 6 cable(maximum 100 m)

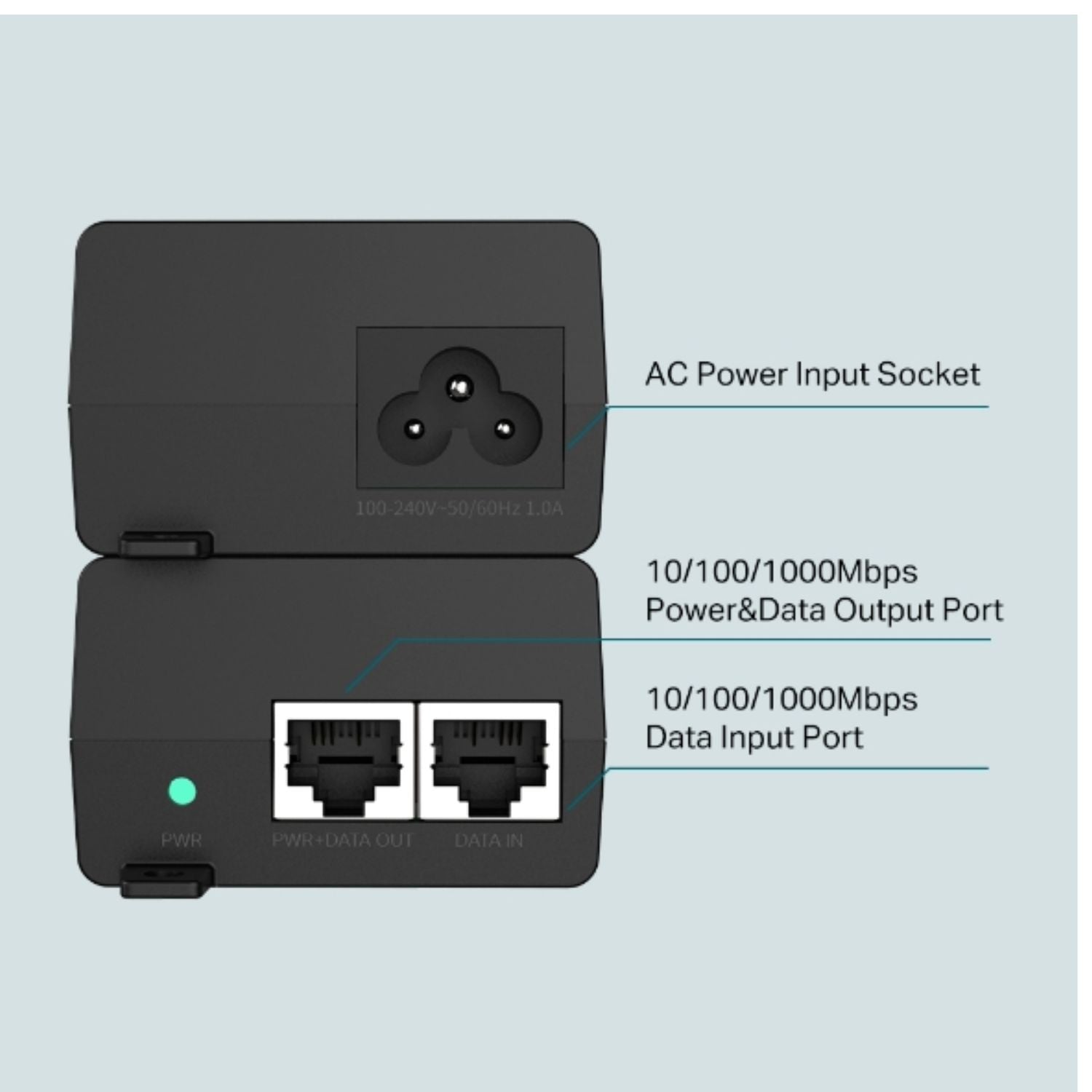

Ports 1 10 100 1000Mbps RJ45 data-in port

1 10 100 1000Mbps RJ45 powerdata-out port

1 AC socket

Power Consumption Input: 100-240 V, 50 60 Hz

Output: Auto-determine the necessary power requirements (max. 30 W)

Basic Function Auto-Sensing Algorithm enables providing power with 802.3af at PD

Auto-determine the necessary power requirements

Wall-mounting and desktop installation supported

Plug-and-Play

LED Indicator ON: Supplying power normally

OFF: No power supply

Dimensions ( W x D x H ) 4.92.31.4 in (12559.436.8 mm)
