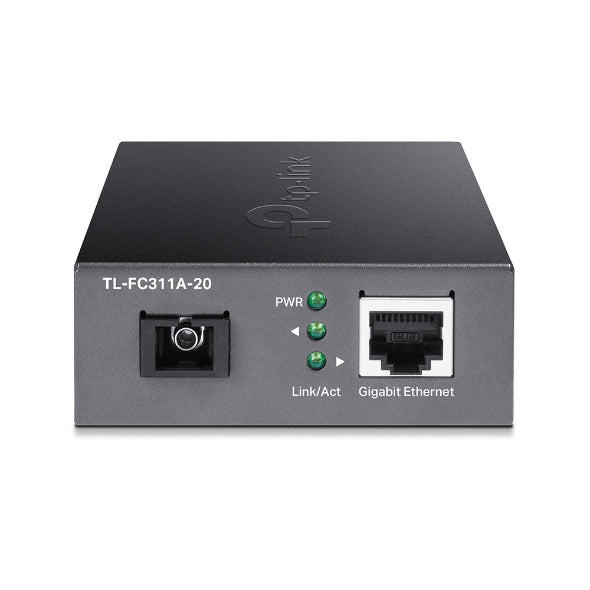

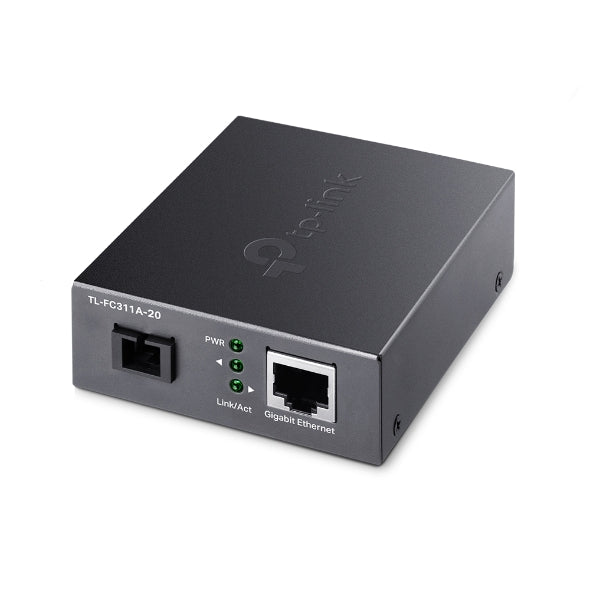

TP-Link TL-FC311A-20 Gigabit WDM Media Converter
1 10 100 1000Mbps Auto-Negotiation RJ45 port supports Auto-MDI MDIX
Auto-negotiation of Half-Duplex Full-Duplex transfer mode
Adopts WDM technology, transmitting and receiving data on one single fibre
Extends fibre distance up to 20 km (for TL-FC311A-20 TL-FC311B-20)
NETWORK
Standards and Protocols IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z
ENVIRONMENT
Operating Temperature 0C to 50C (32F to 122F)
Storage Temperature -40C to 70C (-40F to 158F)
Operating Humidity 10pct to 90pct RH non-condensing
Storage Humidity 5pct to 90pct RH non-condensing
HARDWARE FEATURES
Interface 1 Gigabit SC Fiber Port
1 10 100 1000 Mbps RJ45 Port (Auto MDI MDIX)
Network Media Single-mode Fiber
UTP category 5, 5e cable (maximum 100m)

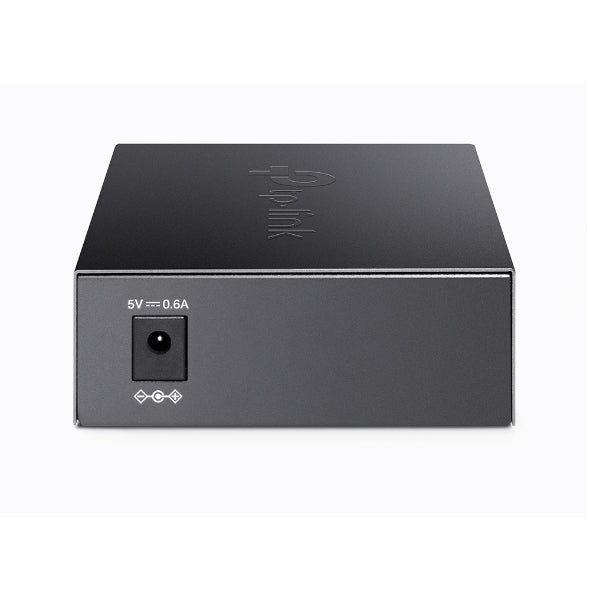

Power Supply External Power Adapter: 5 V 0.6 A
LED PWR, Link Act
Dimensions ( W x D x H ) 3.72.91.1 in (94.573.027.0 mm)
Wave Length 1550 nm TX, 1310 nm RX
MEDIA CONVERTER MODULE
Fiber Type 9 125 μm single-mode fiber
