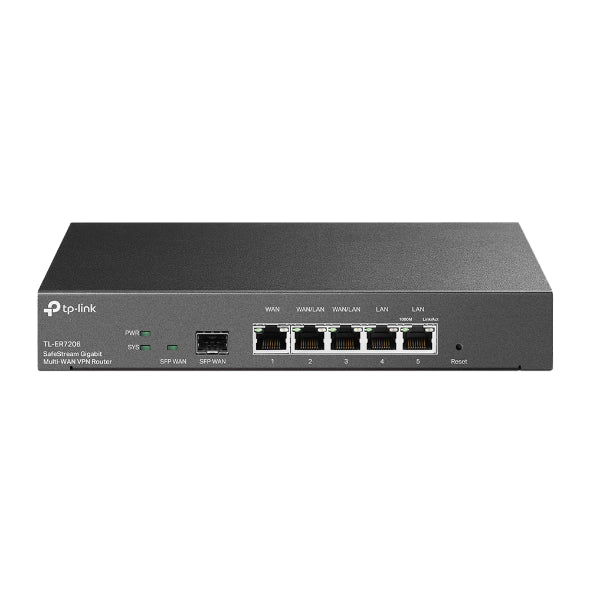

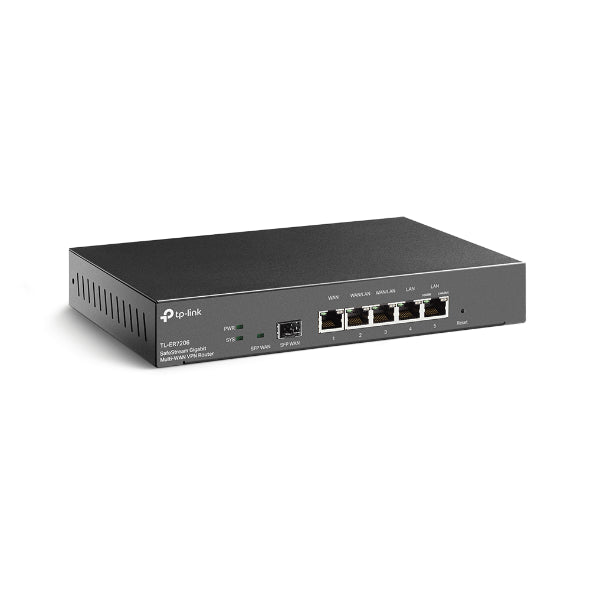

TP-Link TL-ER7206 SafeStream Gigabit Multi-WAN VPN Router

Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.

Centralised Management: Cloud access and Omada app for ultra convenience and easy management.

Gigabit Ports: 1 gigabit SFP and 5 gigabit RJ45 ports provide high-speed wired connectivity.

Up to 4 WAN Ports: 1 gigabit SFP WAN port, 1 gigabit RJ45 WAN port, 2 gigabit WAN LAN ports optimize bandwidth usage.

Highly Secure VPN: Supports up to 100— LAN-to-LAN IPsec, 50— OpenVPN, 50— L2TP, and 50— PPTP VPN connections.

Abundant Security Features: Advanced firewall policies, DoS defense, IP MAC URL filtering, and more security functions protect your network and data.

HARDWARE FEATURES

Standards and Protocols IEEE 802.3, 802.3u, 802.3ab

TCP IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DNS, IPsec, PPTP, L2TP

Interface 1 Fixed Gigabit SFP WAN Port

1 Fixed Gigabit RJ45 WAN Port

2 Fixed Gigabit RJ45 LAN Ports

2 Changeable Gigabit RJ45 WAN LAN Ports

Network Media 10BASE-T: UTP category 3, 4, 5 cable (Max 100m)

EIA TIA-568 100Ω STP (Max 100m)

100BASE-TX: UTP category 5, 5e cable (Max 100m)

EIA TIA-568 100Ω STP (Max 100m)

1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)

Button Reset Button

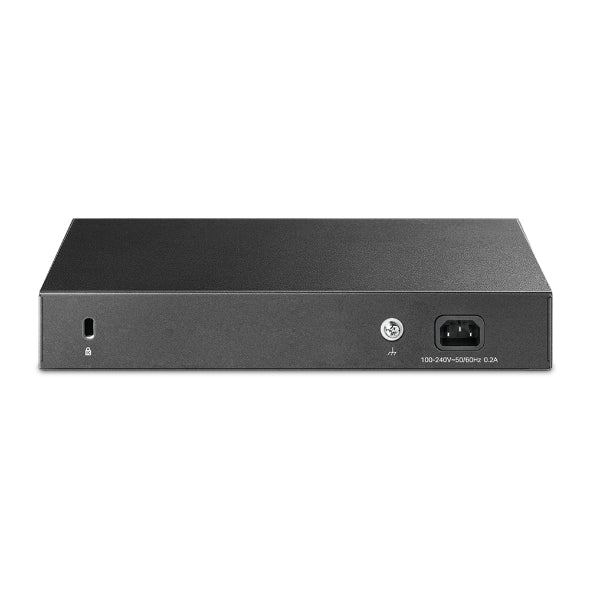

Power Supply 100“240 V~50 60 Hz

Flash SPI 4MB NAND 128MB

DRAM 512MB

LED PWR, SYS, SFP WAN, Speed, Link Act

Dimensions ( W x D x H ) 8.9 — 5.2 — 1.4 in (226 — 131 — 35 mm)
