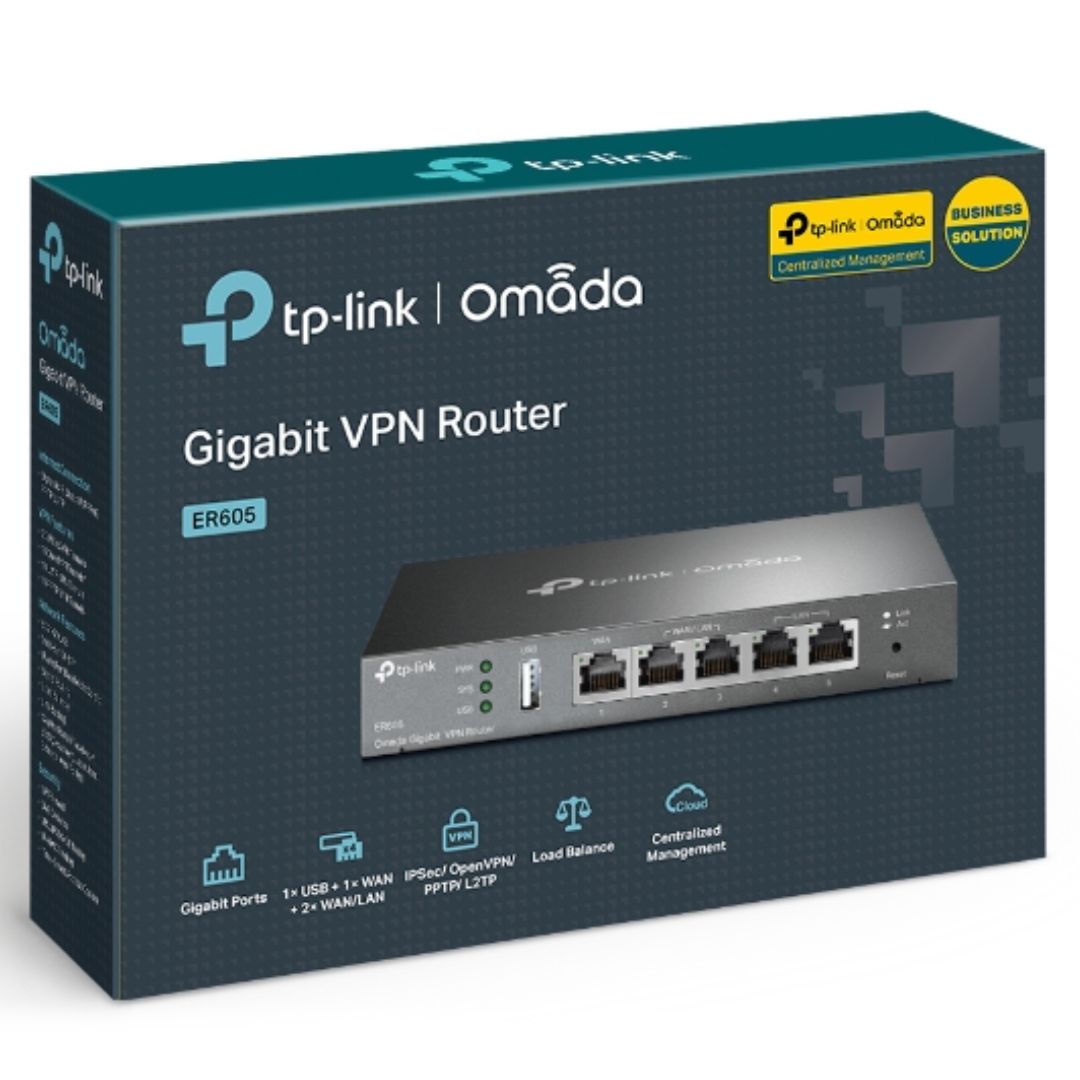

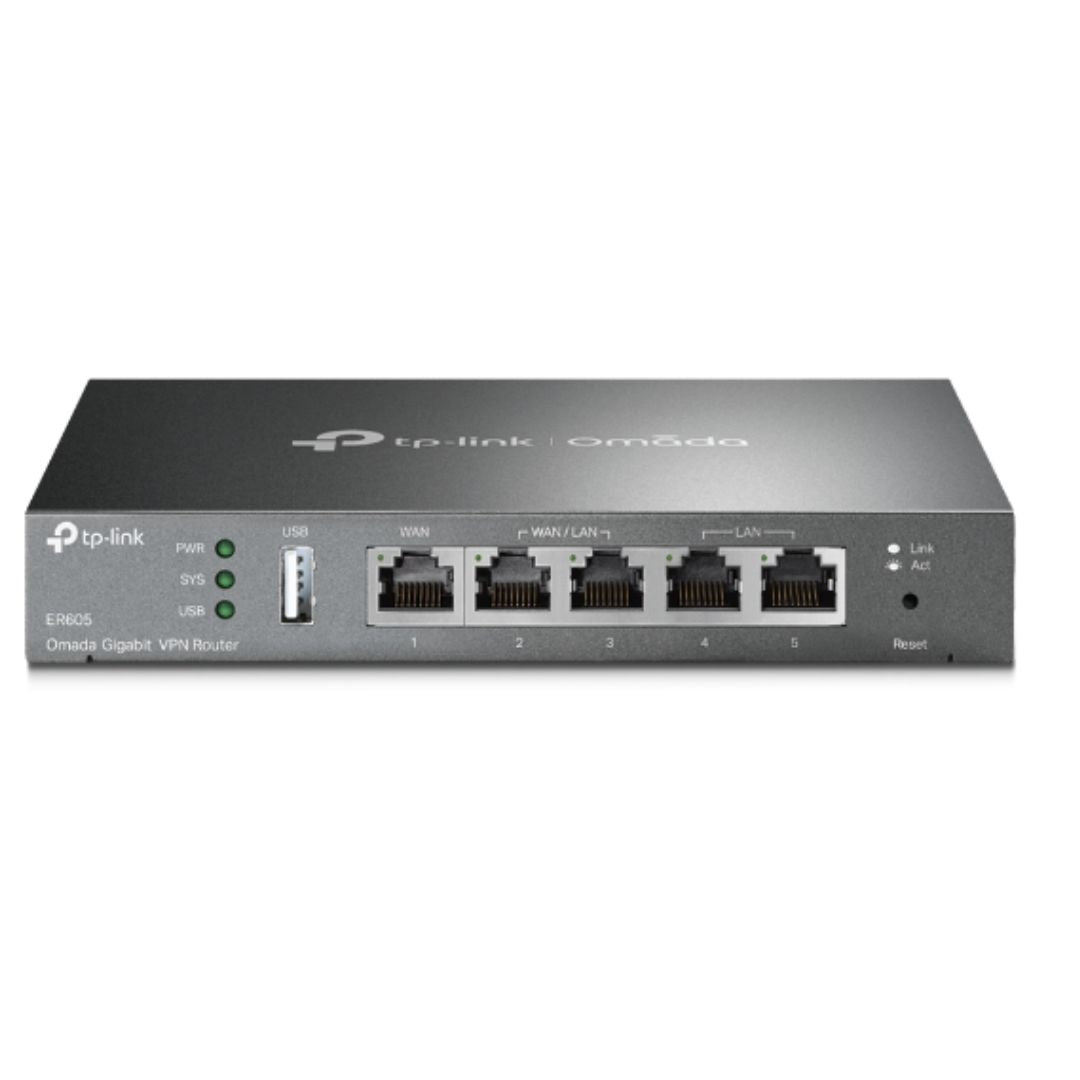

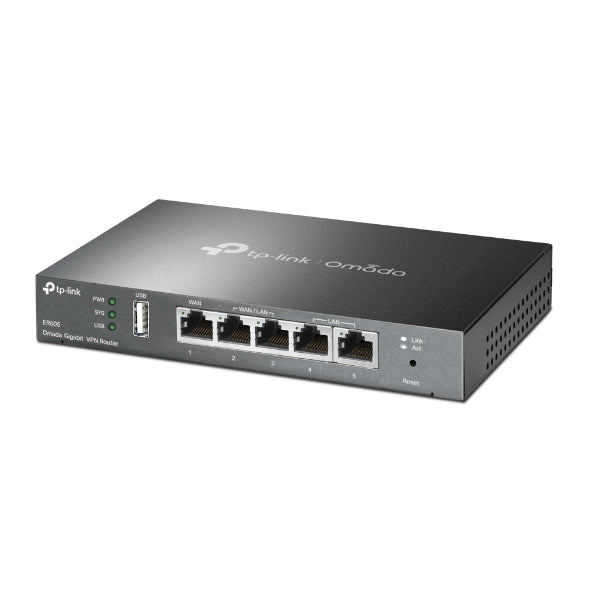

TP-Link TL-ER605 (TL-R605) SafeStream Gigabit Multi-WAN VPN Router PPPoE 1 WAN 3 Changeable WAN LAN Ports 10BASE-T, Centralised Cloud, OMADA

Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)¡, Centralized Cloud Management, and Intelligent Monitoring.

Centralised Management: Cloud access and Omada app for ultra convenience and easy management.

Five Gigabit Ports: High-speed wired connectivity.

Up to 4 WAN Ports: 1 gigabit WAN port and 3 gigabit WAN LAN ports optimize bandwidth usage.

Highly Secure VPN: Supports up to 20— LAN-to-LAN IPsec, 16— OpenVPN, 16— L2TP, and 16— PPTP VPN connections.

Abundant Security Features: Advanced firewall policies, DoS defence,IP MAC URL filtering, and more security functions protect your network and data.

HARDWARE FEATURES

Standards and Protocols IEEE 802.3, 802.3u, 802.3ab, IEEE 802.3x, IEEE 802.1q

TCP IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP

Interface 1 Fixed Gigabit WAN Port

1 Fixed Gigabit LAN Port

3 Changeable Gigabit WAN LAN Ports

Network Media 10BASE-T: UTP category 3, 4, 5 cable (Max 100m)

EIA TIA-568 100Ω STP (Max 100m)

100BASE-TX: UTP category 5, 5e cable (Max 100m)

EIA TIA-568 100Ω STP (Max 100m)

1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)

Button Reset Button

Power Supply External 9V 0.85A DC Adapter

Flash SPI 16MB

DRAM 128 MB

LED PWR, SYS, WAN, LAN

Dimensions ( W x D x H ) 6.2 — 4.0 — 1.0 in (158 — 101 — 25mm)

PERFORMANCE

Concurrent Session 25,000

IPsec VPN Throughput 41.5 Mbps

BASIC FUNCTIONS

WAN Connection Type Static Dynamic IP

PPPoE

PPTP

L2TP

DHCP DHCP Server Client

DHCP Address Reservation

Multi-net DHCP

Multi-IP Interfaces

Multi-IP Interfaces and Multi-Net DHCP are supported only in Controller Mode

MAC Clone Modify WAN LAN MAC Address
