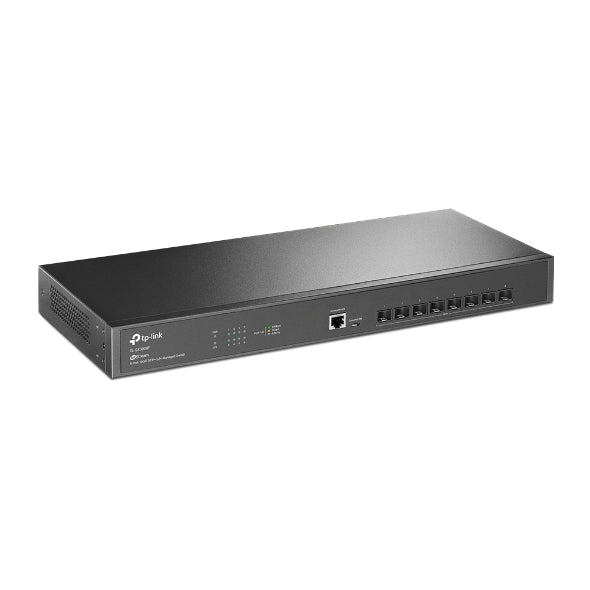

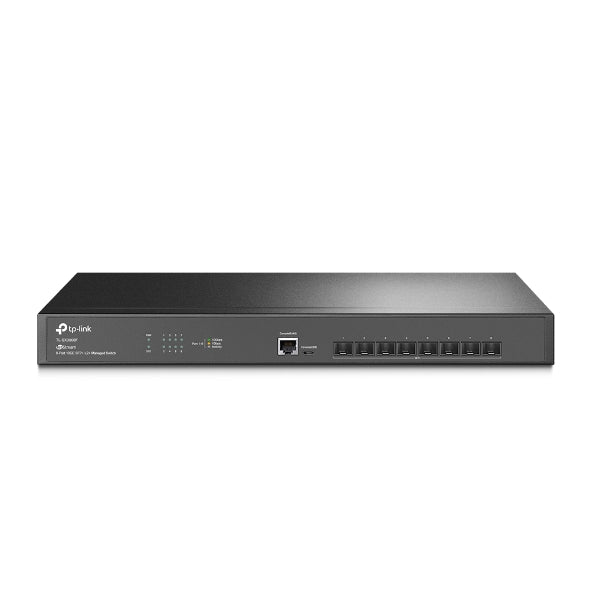

TP-Link TL-SX3008F JetStream 8-Port 10GE SFP L2 Managed Switch, SFP, Omada SDN, Static Routing, L2 L3 L4 QoS, IGMP snooping, Standalone Management

JetStream 8-Port 10GE SFP L2 Managed Switch

10G Lightning-Fast Connections: 8— 10 Gbps SFP Ports enable high-bandwidth connectivity and non-blocking 160 Gbps switching capacity.

Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.

Centralised Management: Easy and convenient management with cloud access and Omada app.

Static Routing: Route internal traffic for the efficient use of network resources.

Robust Security Strategies: Keep your data safe with systems including IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, and Radius Authentication.

Voice and Video Application Optimization: L2 L3 L4 QoS and IGMP snooping.

Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities

HARDWARE FEATURES

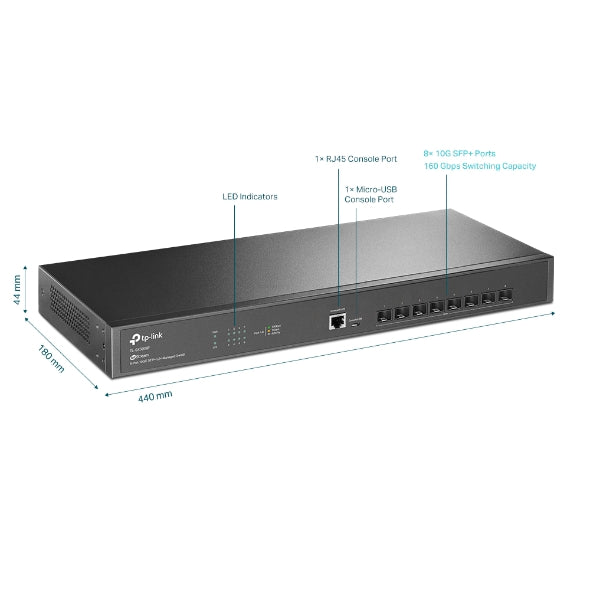

Interface 8— 10GE SFP Slots

1— RJ45 Console Port

1— Micro-USB Console Port

Fan Quantity Fanless

Power Supply 100-240 V AC~50 60 Hz

Dimensions ( W x D x H ) 17.3 — 7.1 — 1.7 in (440 — 180 — 44 mm)

Mounting Rack Mountable

Max Power Consumption 15.46 W (220 V 50 Hz)

Max Heat Dissipation 52.75 BTU hr (220 V 50 Hz)

PERFORMANCE

Switching Capacity 160 Gbps

Packet Forwarding Rate 119.04 Mpps

MAC Address Table 32 K

Jumbo Frame 9 KB

SOFTWARE FEATURES

Quality of Service 8 priority queues

802.1p CoS DSCP priority

Queue scheduling

- SP (Strict Priority)

- WRR (Weighted Round Robin)

- SPWRR

Bandwidth Control

- Port Flow based Rating Limiting

Smoother Performance

Action for Flows

- Mirror (to supported interface)

- Redirect (to supported interface)

- Rate Limit

- QoS Remark

L2 and L2 Features Link Aggregation

- static link aggregation

- 802.3ad LACP

- Up to 8 aggregation groups, containing 8 ports per g
