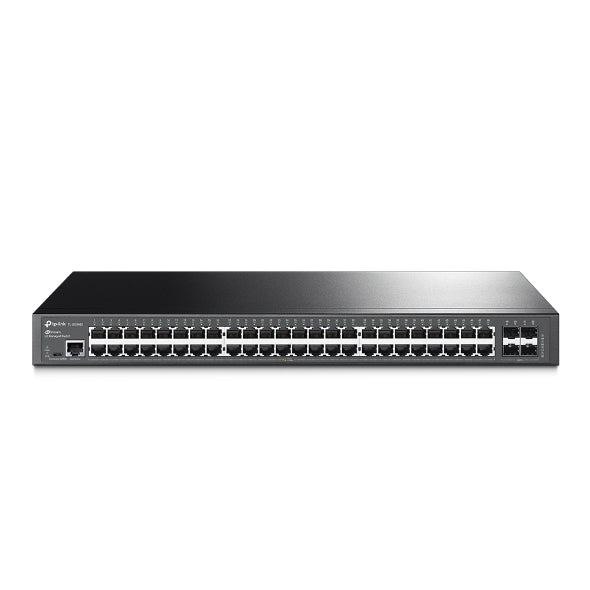

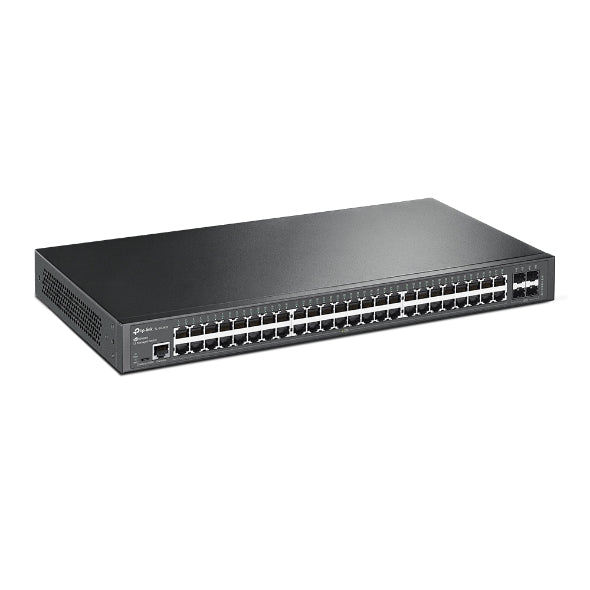

TP-Link TL-SG3452 JetStream 48-Port Gigabit L2 Managed Switch with 4 SFP Slots

Full Gigabit Ports: 48— gigabit RJ45 ports and 4— gigabit SFP Slots provide high-speed connections.

Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralised Cloud Management, and Intelligent Monitoring.

Centralised Management: Cloud access and Omada app for ultra convenience and easy management.

Static Routing: Helps route internal traffic for more efficient use of network resources.

Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.

Optimise Voice and Video Applications: L2 L3 L4 QoS and IGMP snooping.

Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities

HARDWARE FEATURES

Interface 48— 10 100 1000 Mbps RJ45 Ports

4— Gigabit SFP Slots

1— RJ45 Console Port

1— Micro-USB Console Port

Fan Quantity Fanless

Power Supply 100-240 V AC~50 60 Hz

Dimensions ( W x D x H ) 17.3—8.7—1.7 in (440—220—44 mm)

Mounting Rack Mountable

Max Power Consumption 32.8 W (220 V 50 Hz)

Max Heat Dissipation 111.91 BTU h (220 V 50 Hz)

PERFORMANCE

Switching Capacity 104 Gbps

Packet Forwarding Rate 77.4 Mpps

MAC Address Table 16 K

Jumbo Frame 9 KB

SOFTWARE FEATURES

Quality of Service 8 priority queues

802.1p CoS DSCP priority

Queue scheduling

- SP (Strict Priority)

- WRR (Weighted Round Robin)

- SPWRR

Bandwidth Control

- Port Flow based Rating Limiting

Smoother Performance

Action for Flows

- Mirror (to supported interface)

- Redirect (to supported interface)

- Rate Limit

- QoS Remark
