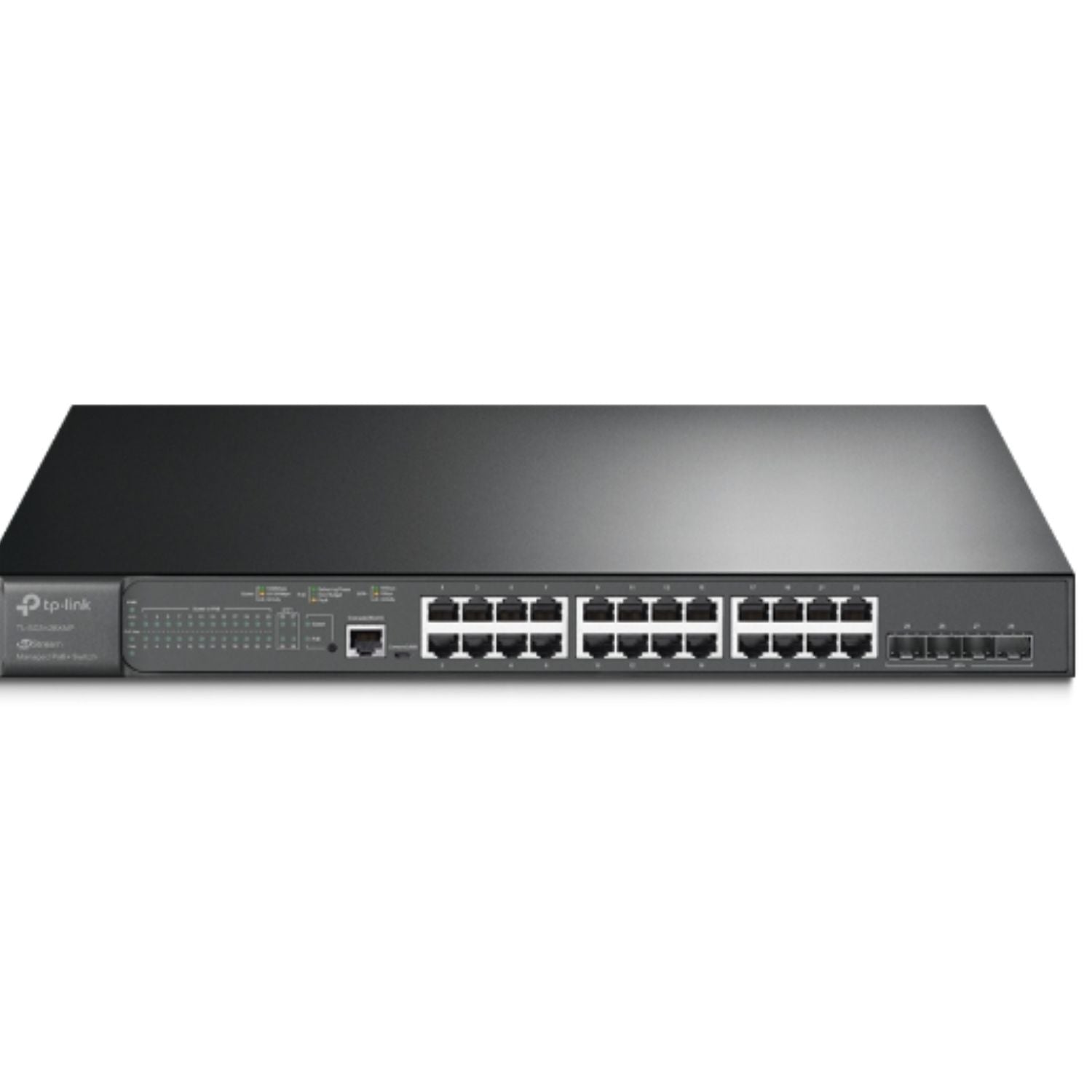

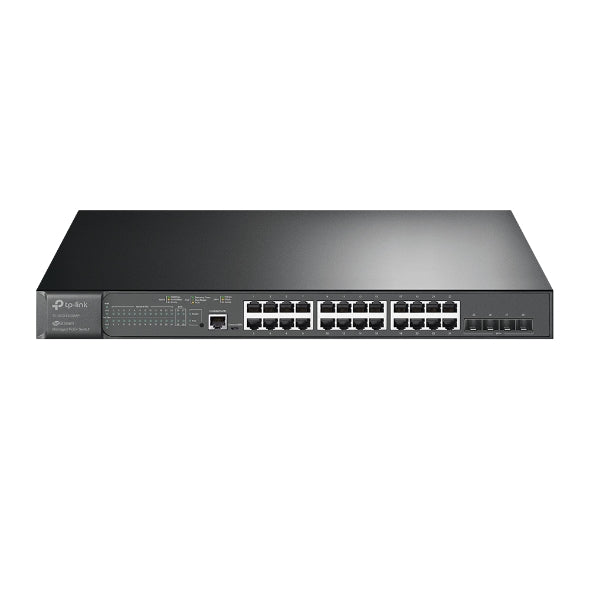

TP-Link TL-SG3428XMP JetStream 24-Port Gigabit and 4-Port 10GE SFP L2 Managed Switch with 24-Port PoE

10G Lightning-Fast Uplink: 4— 10 Gbps SFP slots enable high-bandwidth connectivity and non-blocking switching capacity.

384 W PoE Budget: 24— 802.3at af-compliant PoE ports with a total power supply of 384 W.

Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.

Centralised Management: Cloud access and Omada app for ultra convenience and easy management.

Static Routing: Helps route internal traffic for more efficient use of network resources.

Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.

Optimise Voice and Video Applications: L2 L3 L4 QoS and IGMP snooping.

Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities

HARDWARE FEATURES

Interface 24— 10 100 1000 Mbps RJ45 Ports

4— 10G SFP Slots

1— RJ45 Console Port

1— Micro-USB Console Port

Fan Quantity 2

Power Supply 100-240 V AC~50 60 Hz

Dimensions ( W x D x H ) (440 — 330 — 44 mm)

Mounting Rack Mountable

Max Power Consumption 34.4 W (110V 60Hz) ( no PD device connected)

465.8 W (110V 60Hz) ( with 384 W PD device connected)

Max Heat Dissipation 117.38 BTU h (110 V 60 Hz) (no PD device connected)

1589.31 BTU h (110 V 60 Hz) (with 384 W PD device connected)

PERFORMANCE

Switching Capacity 128 Gbps

Packet Forwarding Rate 95.23 Mpps

MAC Address Table 16 K

Jumbo Frame 9 KB

Quality of Service

8 priority queues

802.1p CoS DSCP priority

Queue scheduling

- SP (Strict Priority)

- WRR (Weighted Round Robin)

- SPWRR

Bandwidth Control

- Port Flow based Rating Limiting

Smoother Performance

Action for Flows

- Mirror (to supported interface)

- Redirect (to supported interface)

- Rate Limit

- QoS Remark
