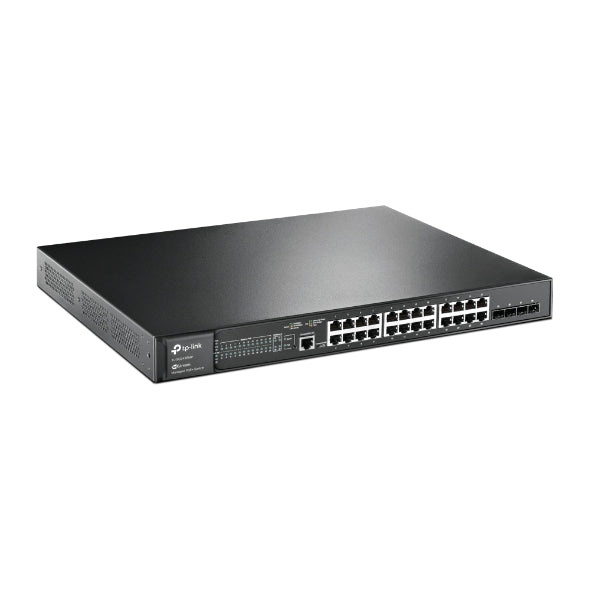

TP-Link TL-SG3428MP JetStream 28-Port Gigabit L2 Managed Switch with 24-Port PoE

384 W PoE Budget: 24— 802.3at af-compliant PoE ports with a total power supply of 384 W.

Full Gigabit Ports: 24— gigabit PoE ports and 4— gigabit SFP Slots provide high-speed connections.

Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralised Cloud Management, and Intelligent Monitoring.

Centralised Management: Cloud access and Omada app for ultra convenience and easy management.

Static Routing: Helps route internal traffic for more efficient use of network resources.

Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.

Optimise Voice and Video Applications: L2 L3 L4 QoS and IGMP snooping.

Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities

HARDWARE FEATURES

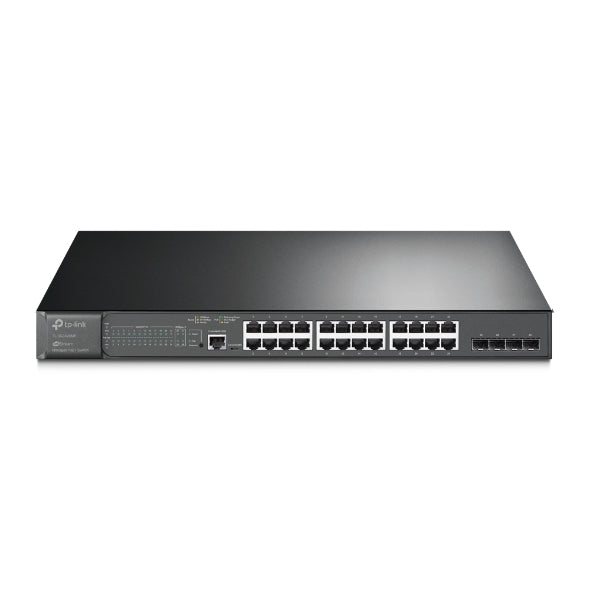

Interface 24— 10 100 1000Mbps RJ45 Ports

4— Gigabit SFP Slots

1— RJ45 Console Port

1— Micro-USB Console Port

Fan Quantity 2

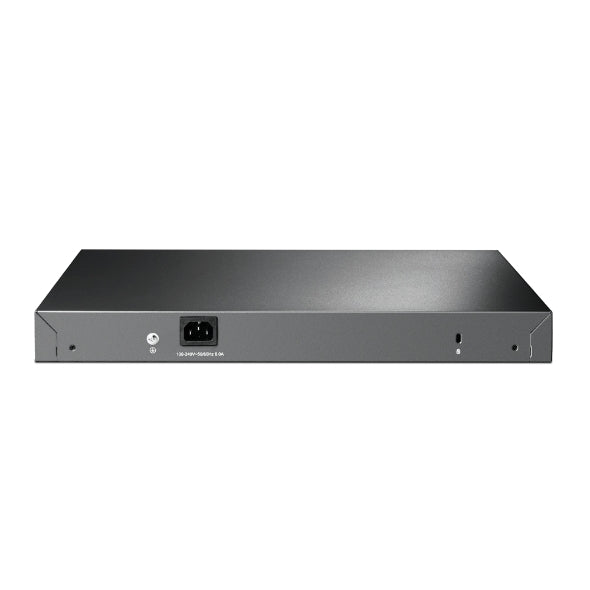

Power Supply 100-240 V AC~50 60 Hz

PoE Ports(RJ45) Standard: 802.3at af compliant

PoE Ports: 24 Ports, up to 30 W per port

Power Budget: 384 W

Dimensions ( W x D x H ) 17.3 — 13.0 — 1.7 in (440 — 330 — 44 mm)

Mounting Rack Mountable

Max Power Consumption 31.0 W (110 V 60 Hz) (no PD connected)

463.8 W (110 V 60 Hz) (with 384 W PD connected)

Max Heat Dissipation 105.78 BTU h (110 V 60 Hz) (no PD connected)

1582.49 BTU h (110 V 60 Hz) (with 384 W PD connected)

PERFORMANCE

Switching Capacity 56 Gbps

Packet Forwarding Rate 41.66 Mpps

MAC Address Table 8K

Jumbo Frame 9 KB
