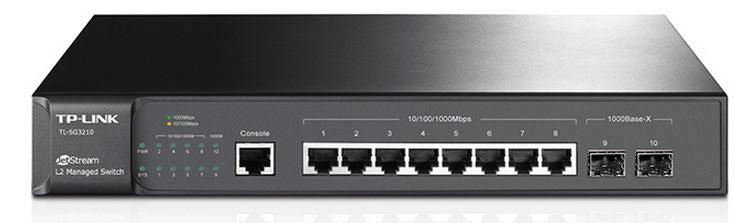

TP-Link SG3210 JetStream 8-Port Gigabit L2 Managed Switch with 2 SFP Slots

IP-MAC-Port-VID Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X Authentication and Radius provide you robust security strategies

L2 L3 L4 QoS and IGMP snooping optimize voice and video application

WEB CLI managed modes, SNMP, RMON bring abundant management features

HARDWARE FEATURES

Standards and Protocols IEEE 802.3i,IEEE 802.3u,IEEE 802.3ab,IEEE802.3z,IEEE 802.3ad,

IEEE 802.3x,IEEE 802.1d,IEEE 802.1s,IEEE 802.1w,IEEE 802.1q,

IEEE 802.1x,IEEE 802.1p

Interface 8 10 100 1000Mbps RJ45 Ports

(Auto Negotiation Auto MDI MDIX)

2 1000Mbps SFP Slots

1 Console Port

Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

100BASE-TX 1000Base-T: UTP category 5, 5e, 6 or above cable (maximum 100m)

1000BASE-X: MMF, SMF

Fan Quantity Fanless

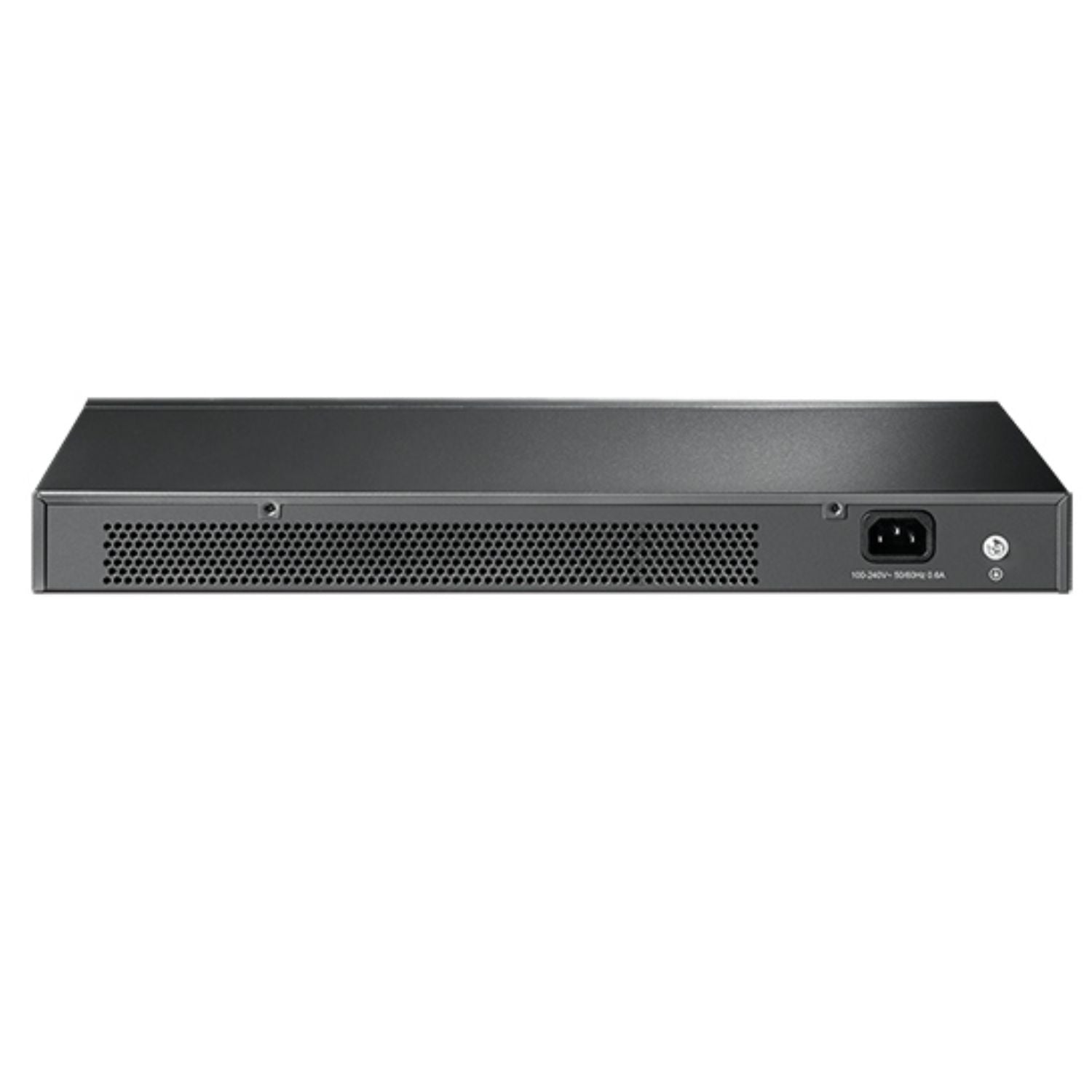

Power Supply 100～240VAC, 50 60Hz

Power Consumption Maximum: 10.7W (220V 50Hz)

Dimensions ( W x D x H ) 11.67.91.7in. (29420044 mm)

PERFORMANCE

Bandwidth Backplane 20Gbps

Packet Forwarding Rate 14.9Mpps

MAC Address Table 8k

Packet Buffer Memory 4Mb

Jumbo Frame 10240 Bytes

SOFTWARE FEATURES

Quality of Service Support 802.1p CoS DSCP priority

Support 4 priority queues

Queue scheduling: SP, WRR, SPWRR

Port Flow- based Rate Limiting

Voice VLAN

L2 Features IGMP Snooping V1 V2 V3

802.3ad LACP (Up to 8 aggregation groups, containing 8 ports per group)

Spanning Tree STP RSTP MSTP

Port isolation

BPDU filtering guard

TC Root protect

Loop back detection

802.3x Flow Control

VLAN Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs)

Port MAC Protocol-based VLAN

GARP GVRP

Management VLAN configuration

Access Control List L2～L4 package filtering based on source and destination MAC address, IP address, TCP UDP ports, 802.1p, DSCP, protocol and VLAN ID

Time Range Based

Security IP-MAC-Port-VID Binding

IEEE 802.1X Port MAC Based authentication, Radius,Guest VLAN

DoS Defence

Dynamic ARP
